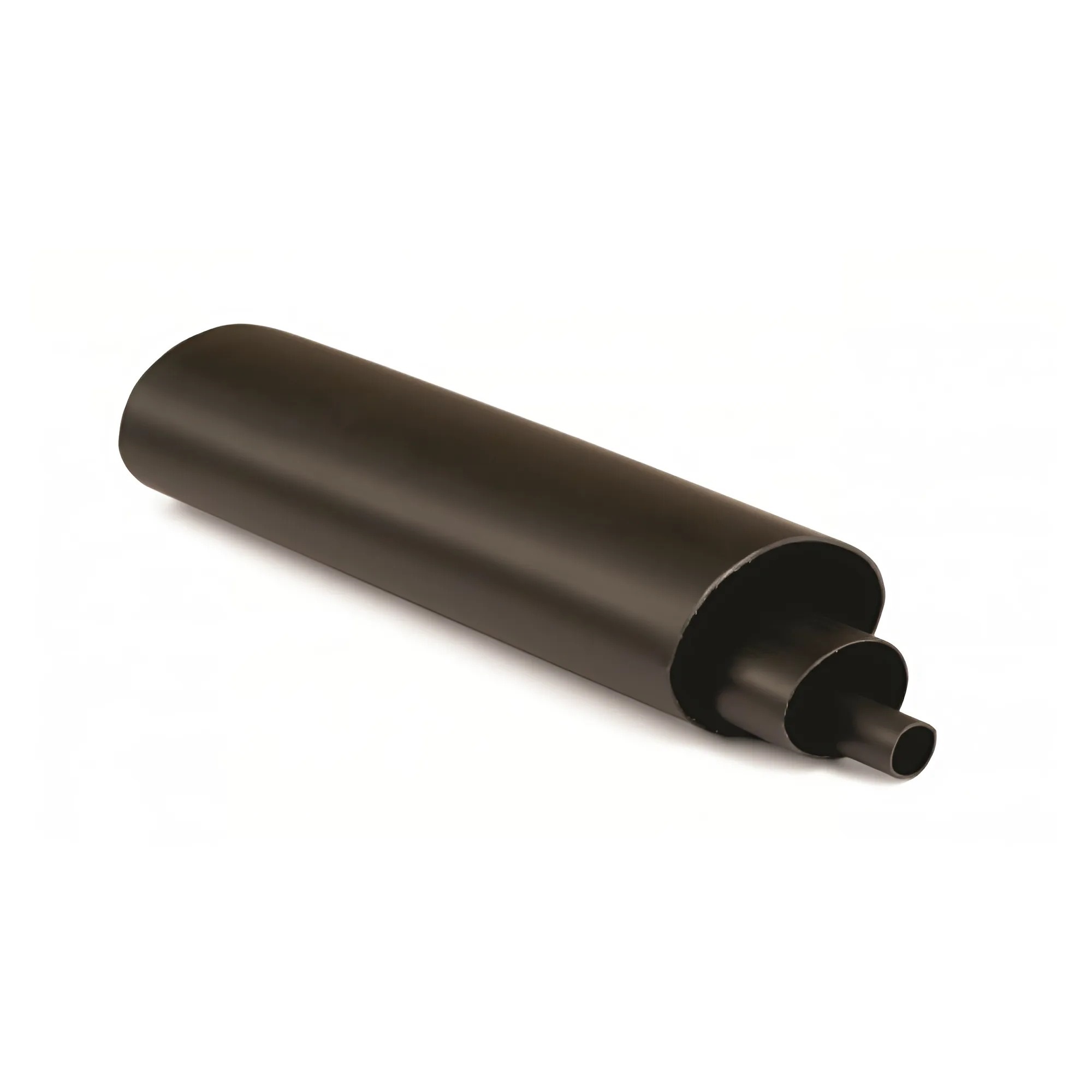

Heat shrink heavy wall tube 52/15mm glue composition
Code: 2CRTA52
Heat shrink heavy wall tube 52/15mm glue composition
Code: 2CRTA52
| Colour | Black |
| Model | Thick-walled |
| Halogen free | Yes |
| Wall thickness after shrinking, mm | 3.60 |
| Length, m | 1 |
| Material | Polyolefin (PO-X) |
| Operating temperature, °C | -40…120 |
| Inner diameter before heat-shrink, mm | 52 |
| Inner diameter after heat-shrink, mm | 16 |
| Printable | No |
| With inner glue | Yes |
| Nominal diameter inch | Other |
| Shrink rate | 4:1 |
| UL approval | No |
| Type | Heat-shrink |
| Delivery form | 1 meter pieces |
| Product type | Heat shrinkable tubes |
