Perforated ducts, blue RL12 150x100

Code: 00272RL

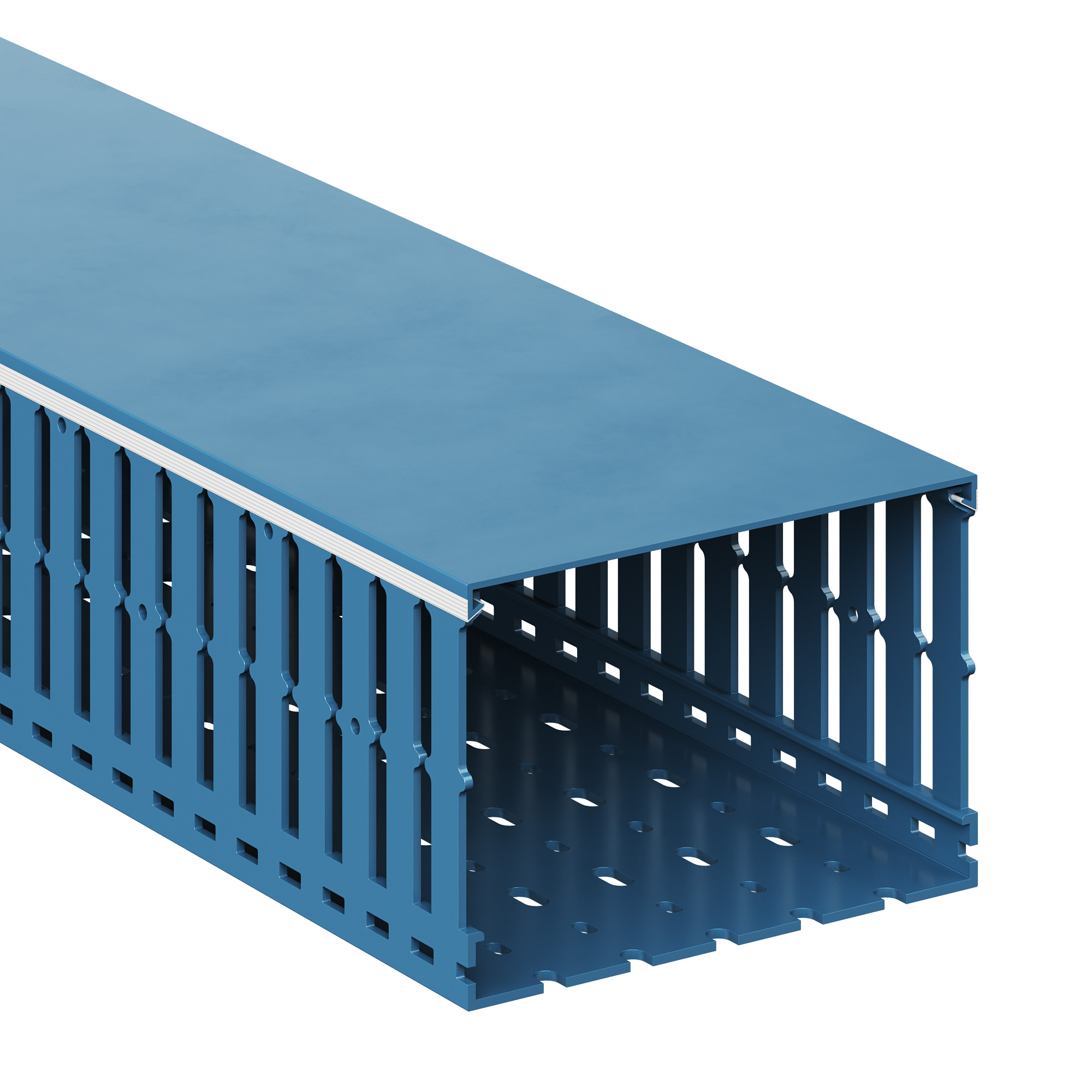

Perforated ducts, blue RL12 150x100
Perforated ducts, blue RL12 150x100

Perforated ducts, blue RL12 150x100

Code: 00272RL
Colour Blue
Width, mm 150
Halogen free No
Height, mm 100
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable Yes
Useful cross section, mm² 13876
Distance of slots, mm 20
Slit width, mm 8
With cover Yes
Color gray
Material PVC
Height, mm 100
Width, mm 150
Length, mm 2000
Product type Perforated ducts series RL6, RL12,RL75
Accessories
Analogs
The accompanying goods

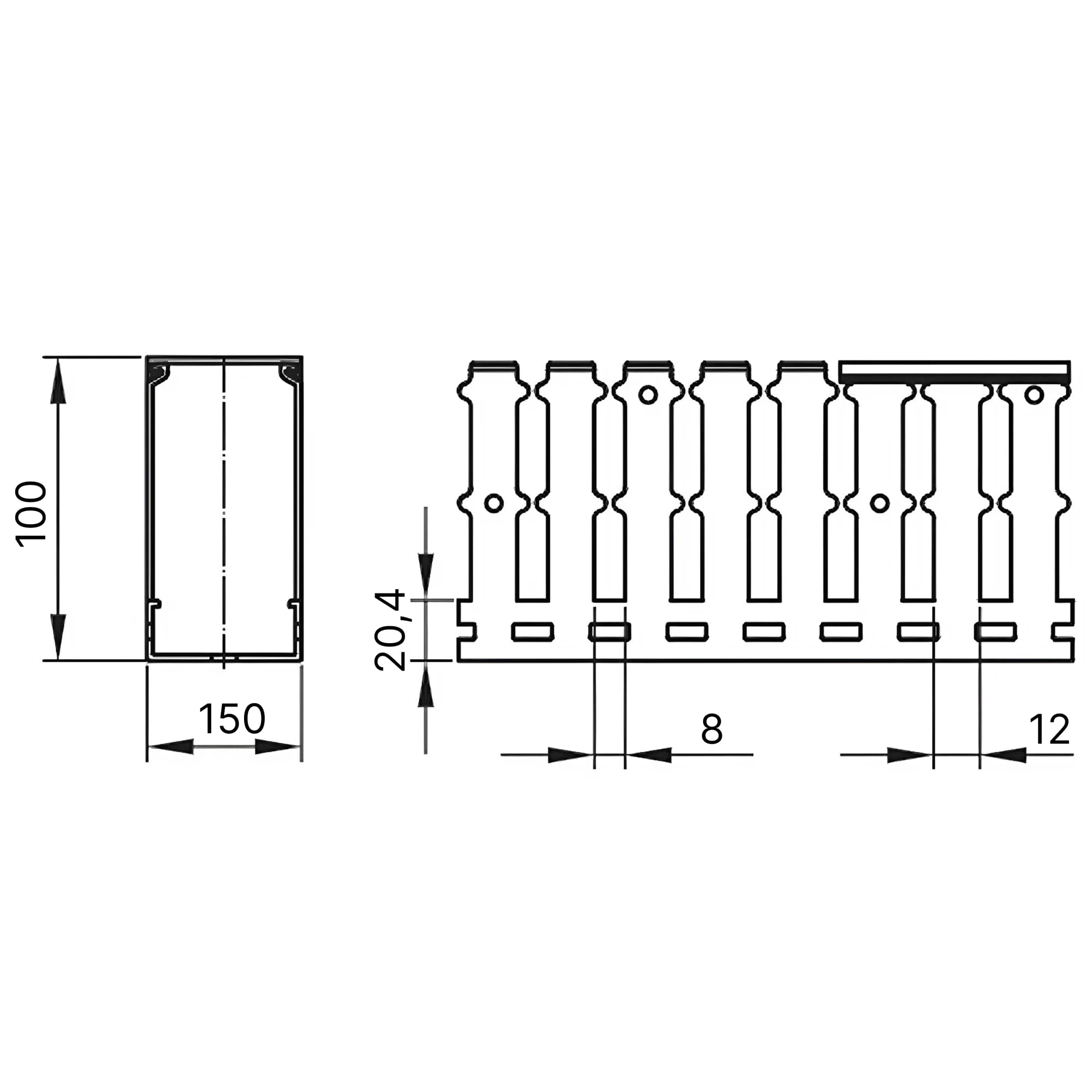

Drawings
Seria Name Eplan DWG STEP
Perforated ducts - "Quadro"
The System "Quadro"
RAR
27.23 Mb
Perforated ducts - "Quadro"
Perforated ducts, blue RL12 150x100
ZIP
188.15 Kb
ZIP
1.26 Mb
Certificates
Name Document
Quadro_Perforated straight elements - Exemption letter for fire safety certificates for accessories_1
PDF
1.22 MB
Quadro_Perforated ducts - Fire safety certificates for plastic ducts series Т1,Т1-Е,Т1-F,T1-EF,TD,TPD,DN-A,T1-N,T1-EN_1
PDF
3.87 MB
Quadro_Perforated ducts - Exemption letter Tool AN и 4I for electrical boxes
PDF
6.87 MB
Quadro_Perforated ducts - Fire safety certificates for electrical boxes
PDF
3.87 MB
Quadro_Perforated ducts - Certificate of conformity to GOST R for perforated duct seria RL
PDF
1.13 MB
Perforated ducts - Fire safety certificates for plastic ducts series RL6, RL12, RL75
PDF
2.39 MB
"Quadro"_Perforated ducts - Certificate of conformity to TÜV for perforated duct series RL6, RL12, RL75
PDF
1.59 MB
“Quadro”_Perforated ducts - EC Declaration of conformity signed for perforated duct series RL6, RL12, RL75
PDF
409.18 kB
“Quadro”_Perforated ducts - Certificate of conformity to EN for perforated duct series RL6, RL12, RL75
PDF
1.04 MB
“Quadro”_ Exemption Letter for perforated boxes
PDF
833.29 kB
