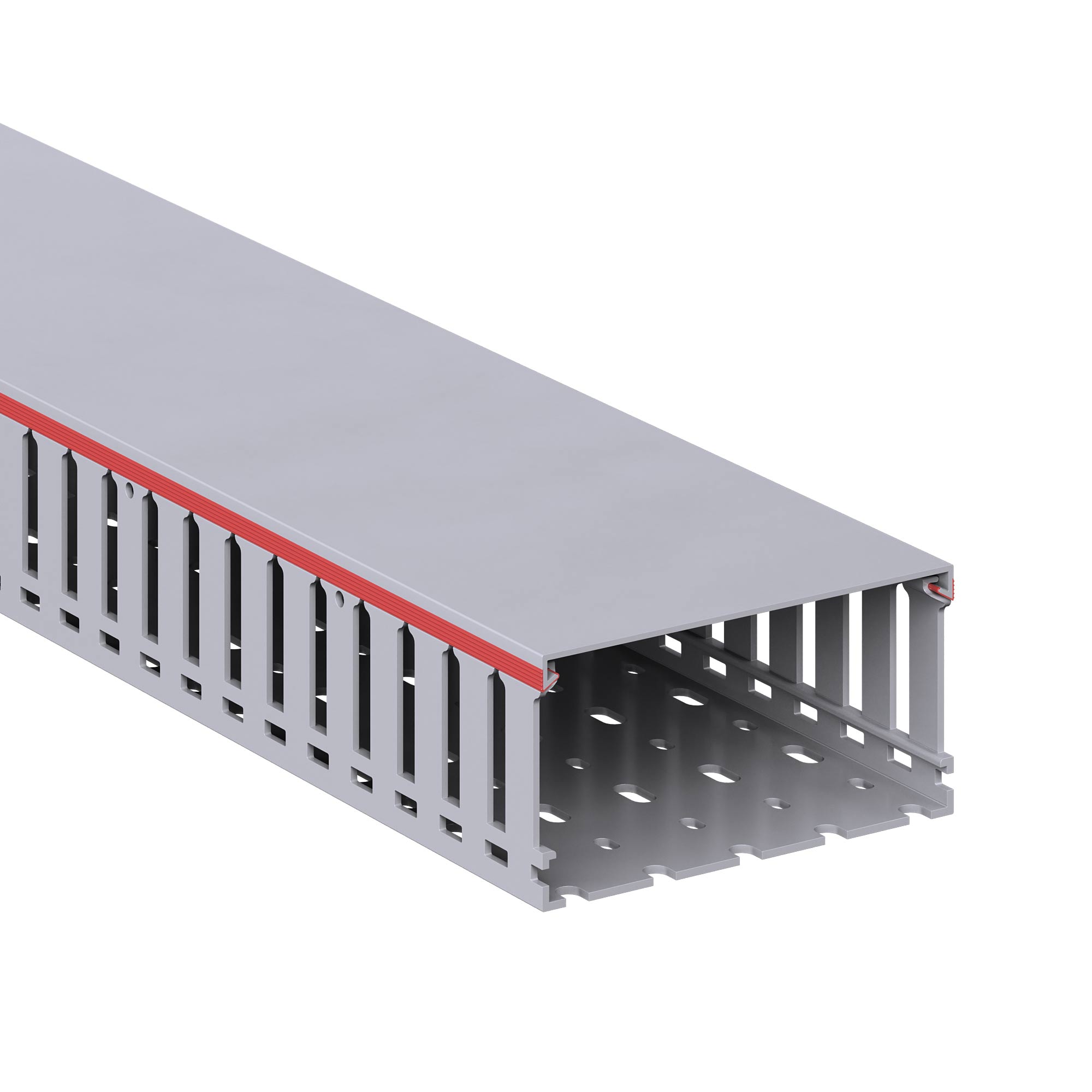

Perforated ducts, gray RL12 120x60

Code: 00142RL
Perforated ducts, gray RL12 120x60
  • To ask a question
Colour Grey
Width, mm 120
Halogen free No
Height, mm 60
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable No
Useful cross section, mm² 6388
Distance of slots, mm 20
Slit width, mm 8
With cover Yes
Color gray
Material PVC
Height, mm 60
Width, mm 120
Length, mm 2000
Product type Perforated ducts series RL6, RL12,RL75
Accessories

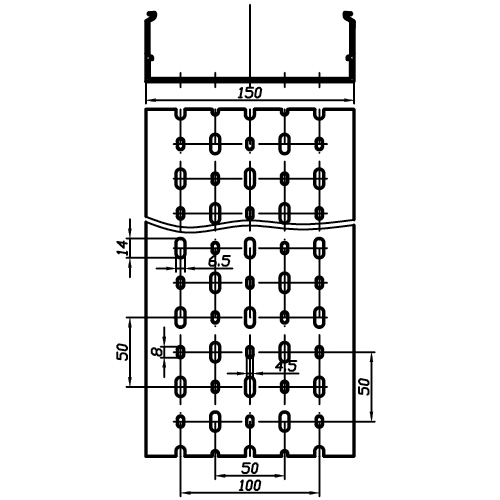

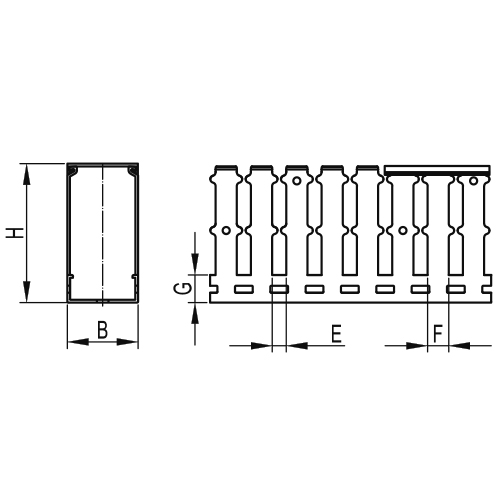

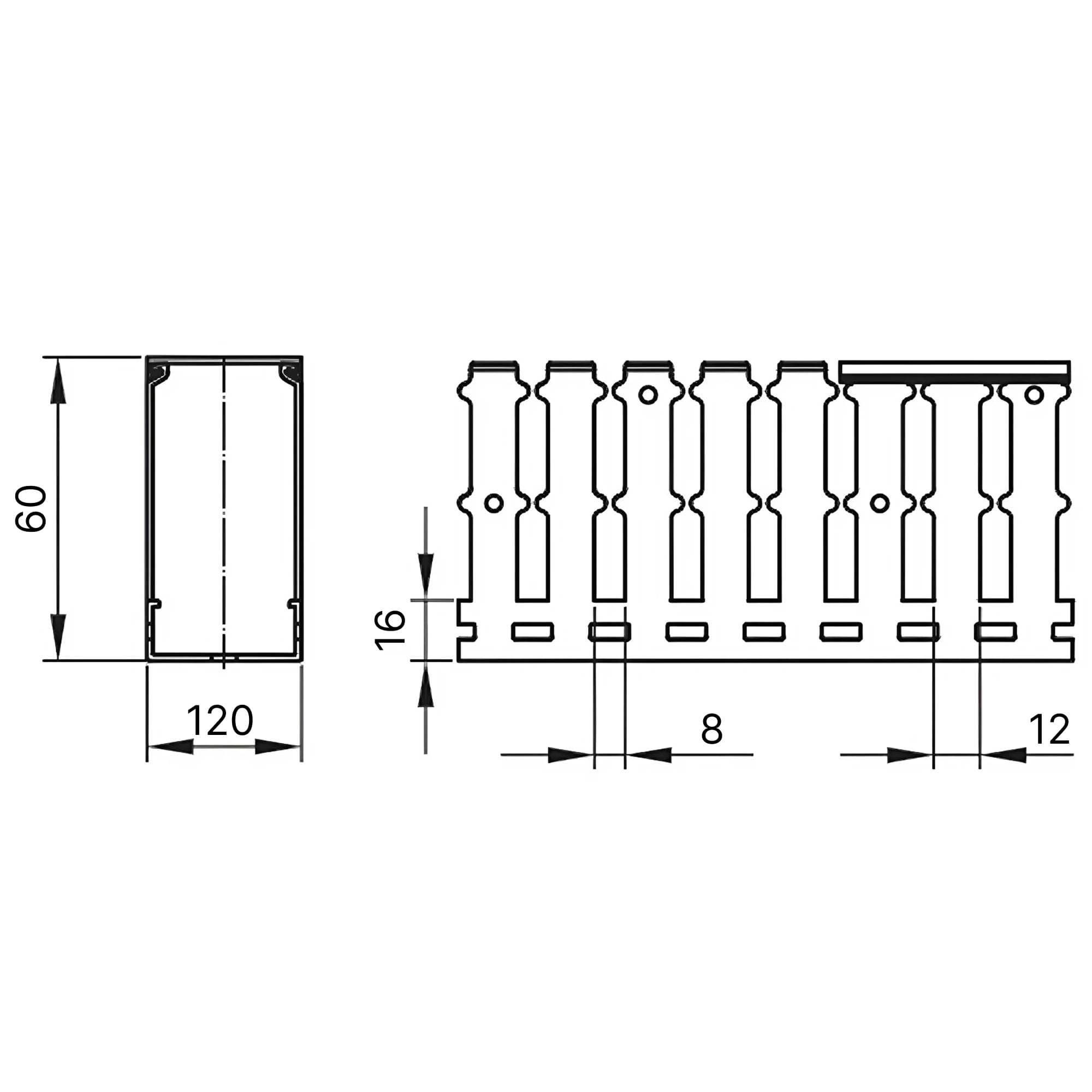

Drawings
Seria Name DWG STEP Eplan
Perforated ducts - "Quadro"
Perforated ducts - "Quadro"
