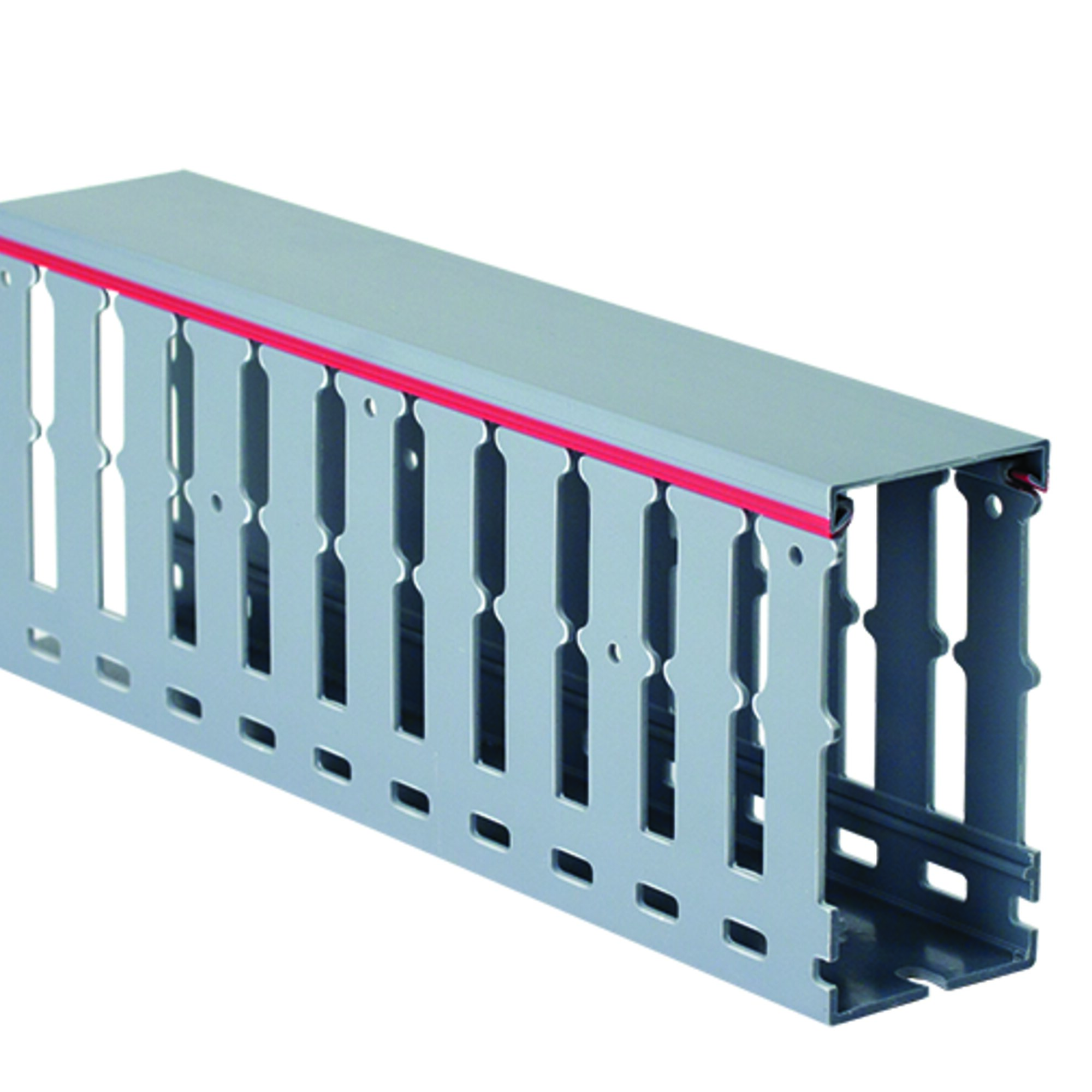

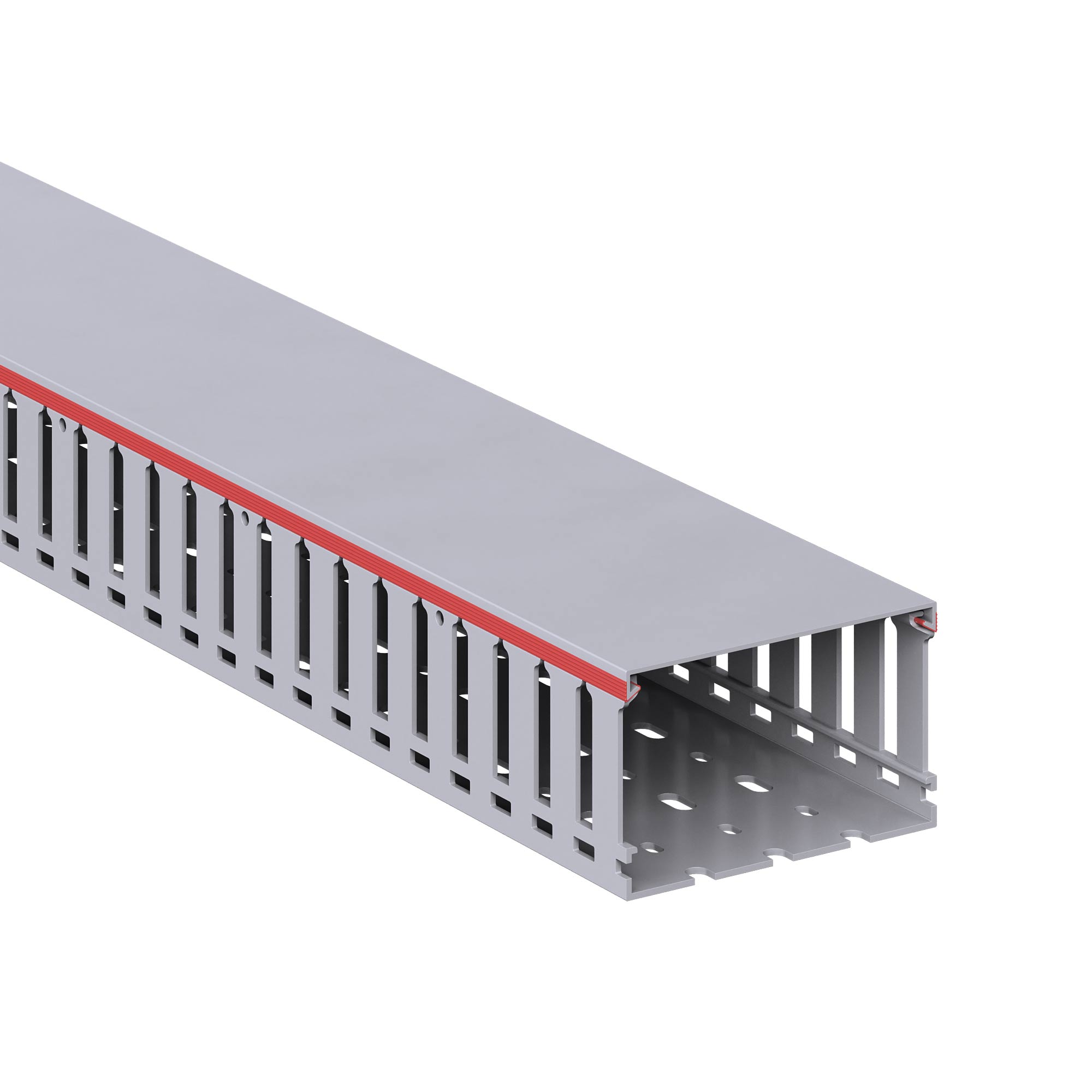

Perforated ducts, gray RL12 100x60

Code: 00140RL
Color gray
Material PVC
Height, mm 60
Width, mm 100
Length, mm 2000
Colour Grey
Width, mm 100
Halogen free No
Height, mm 60
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable No
Useful cross section, mm² 6000
Distance of slots, mm 20
Slit width, mm 8
With cover Yes

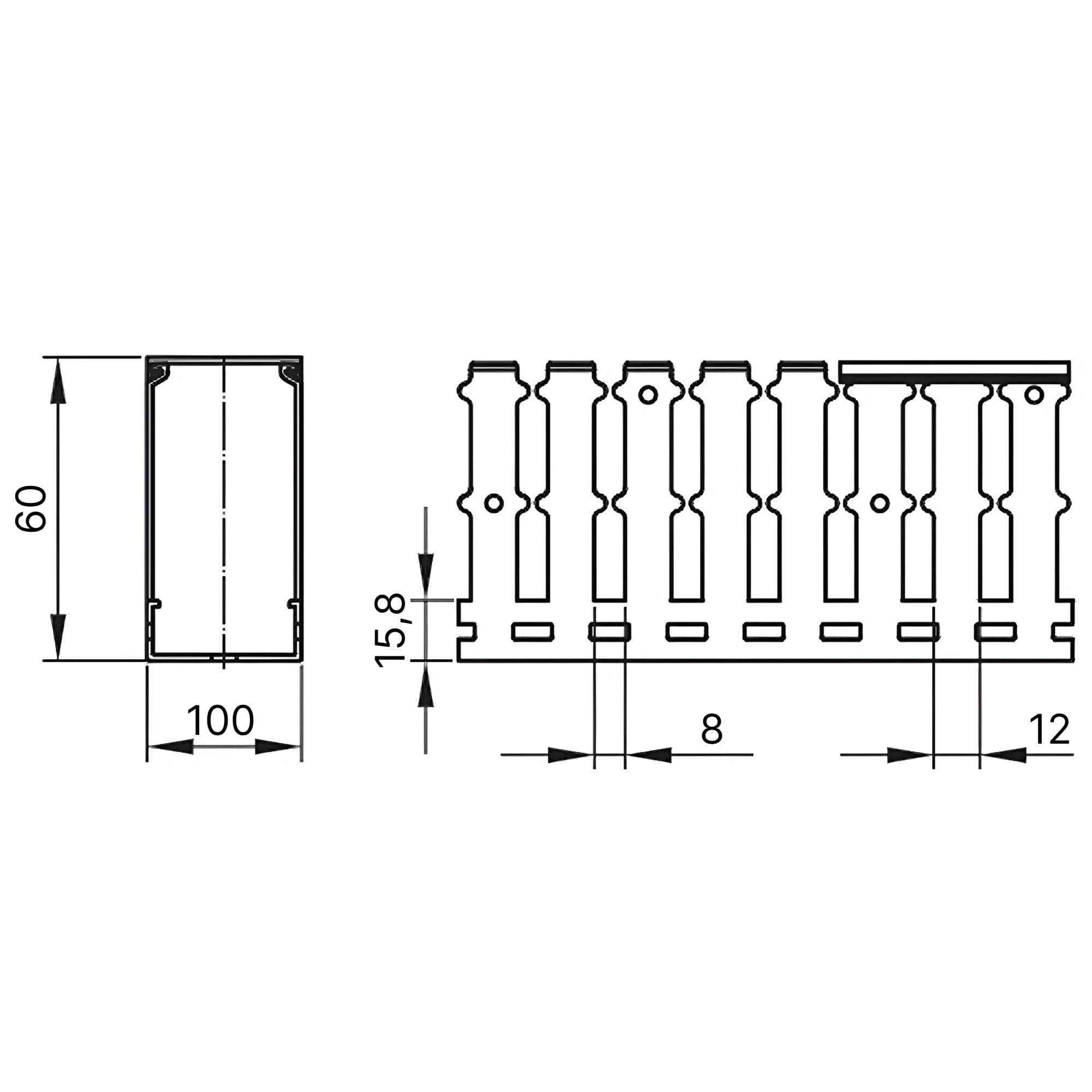

Drawings
Seria Name DWG STEP Eplan
Quadro - perforated ducts
Quadro - perforated ducts
