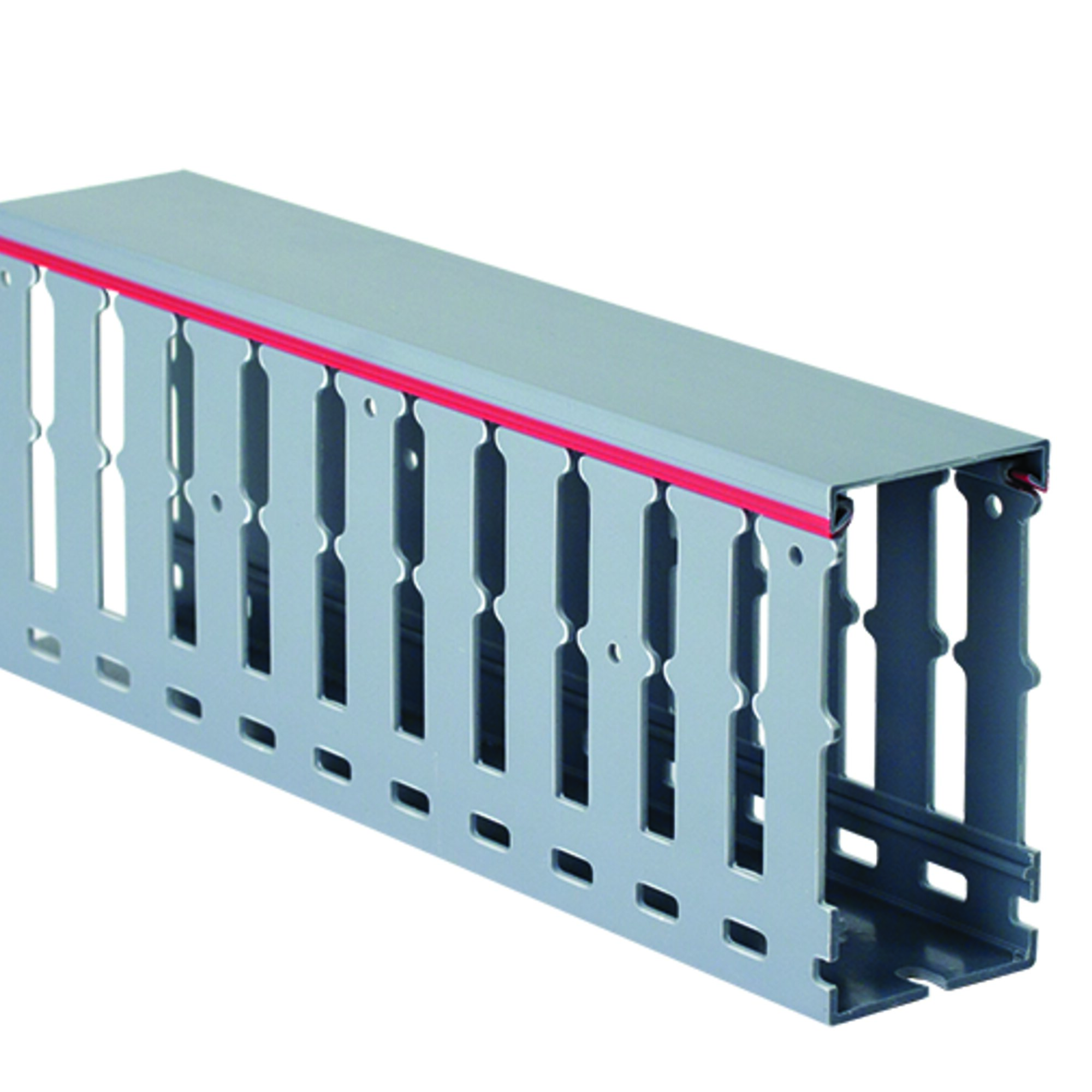

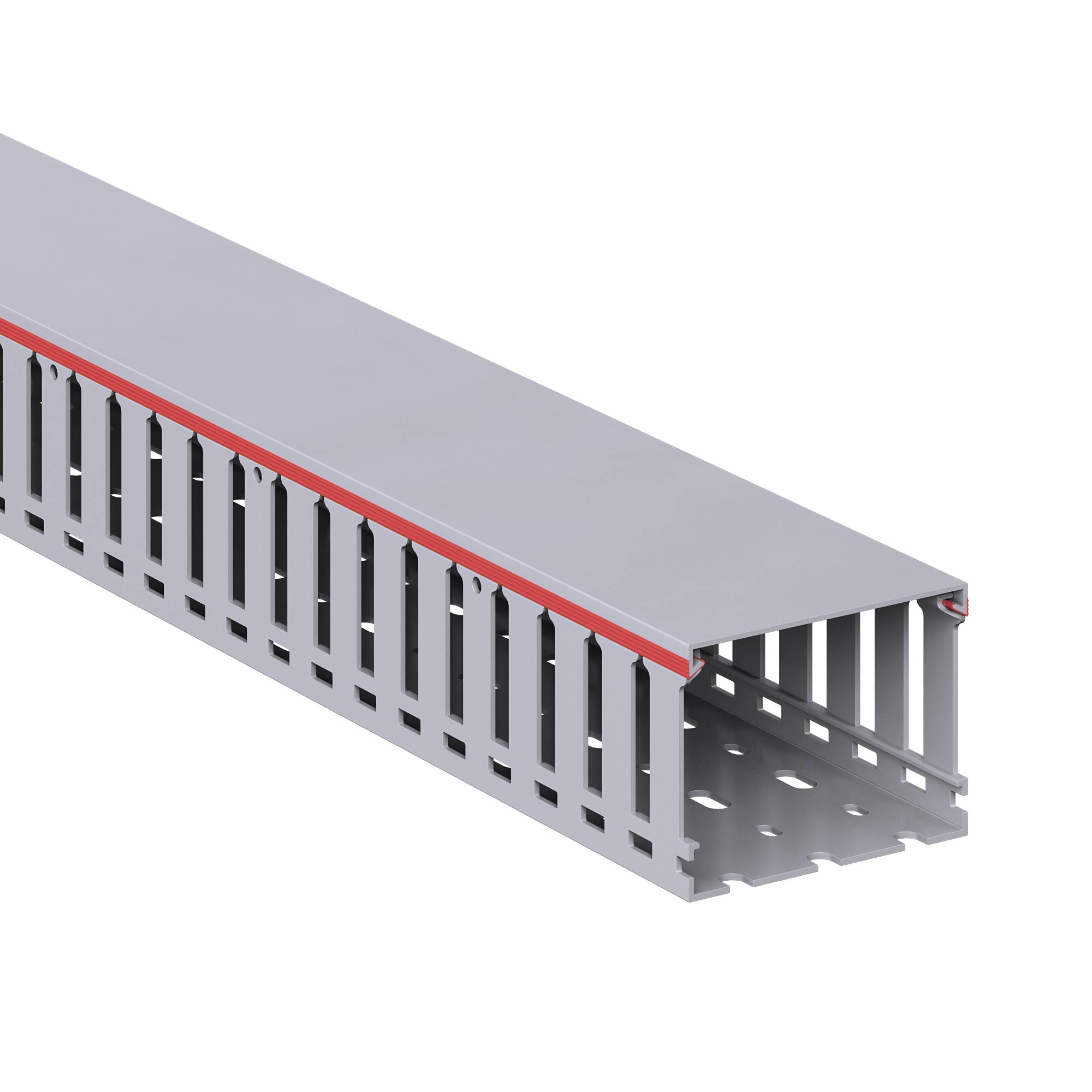

Perforated ducts, gray RL12 80x60

Code: 00139RL
Perforated ducts, gray RL12 80x60
  • To ask a question
Colour Grey
Width, mm 80
Halogen free No
Height, mm 60
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable No
Useful cross section, mm² 4216
Distance of slots, mm 20
Slit width, mm 8
With cover Yes
Color gray
Material PVC
Height, mm 60
Width, mm 80
Length, mm 2000
Product type Perforated ducts series RL6, RL12,RL75
Accessories

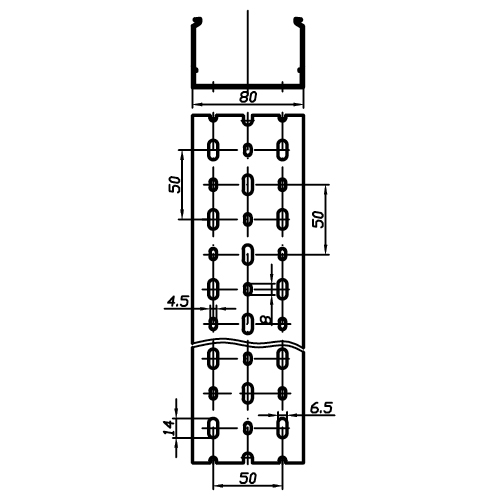

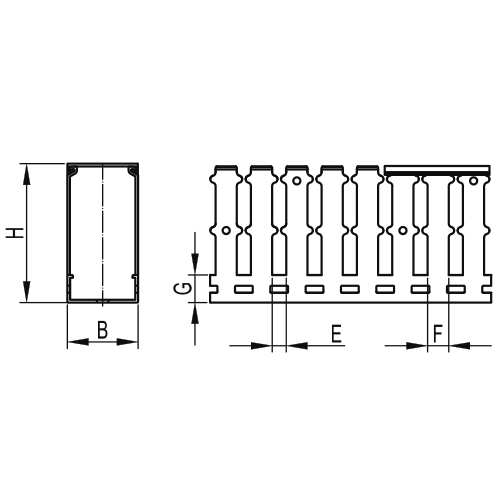

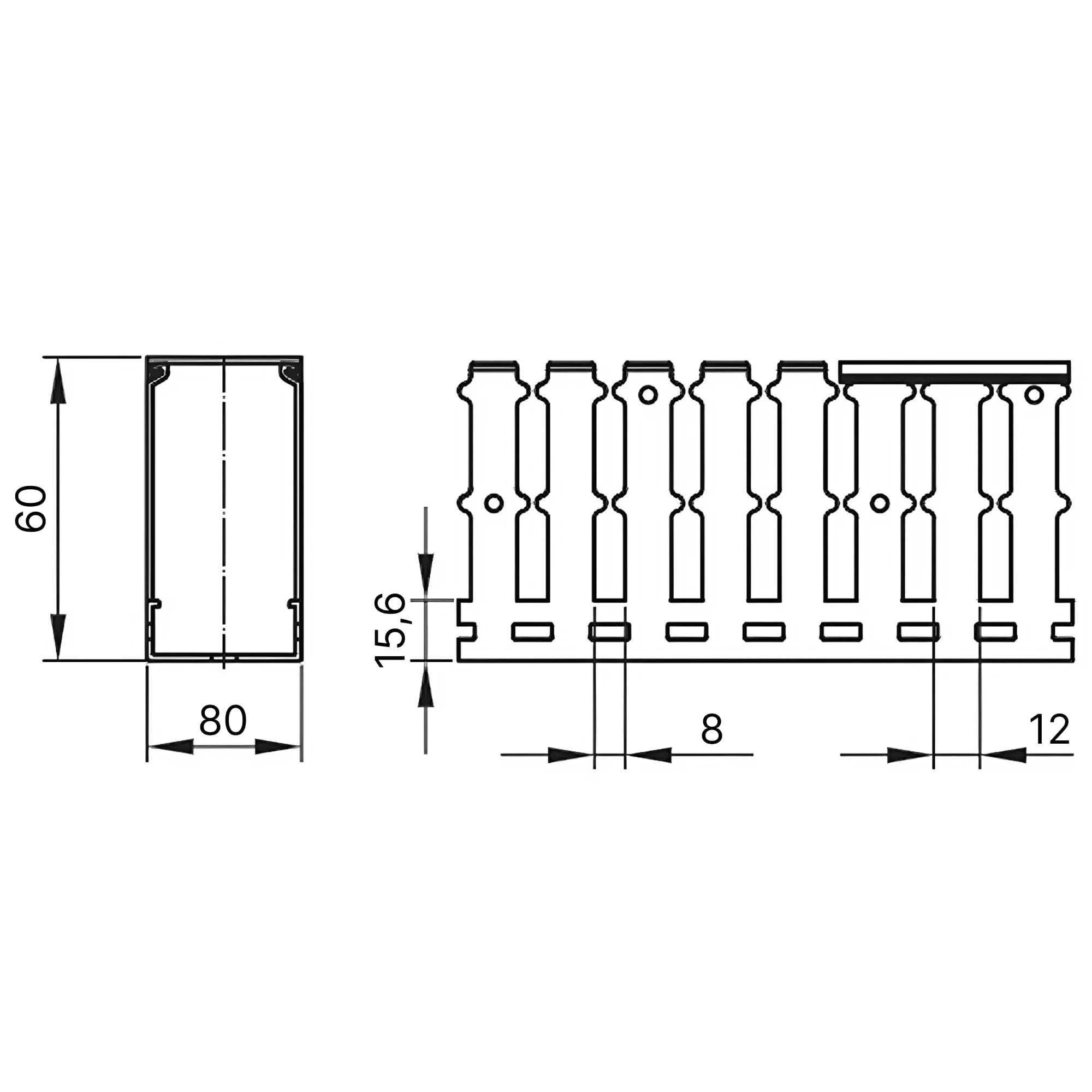

Drawings
