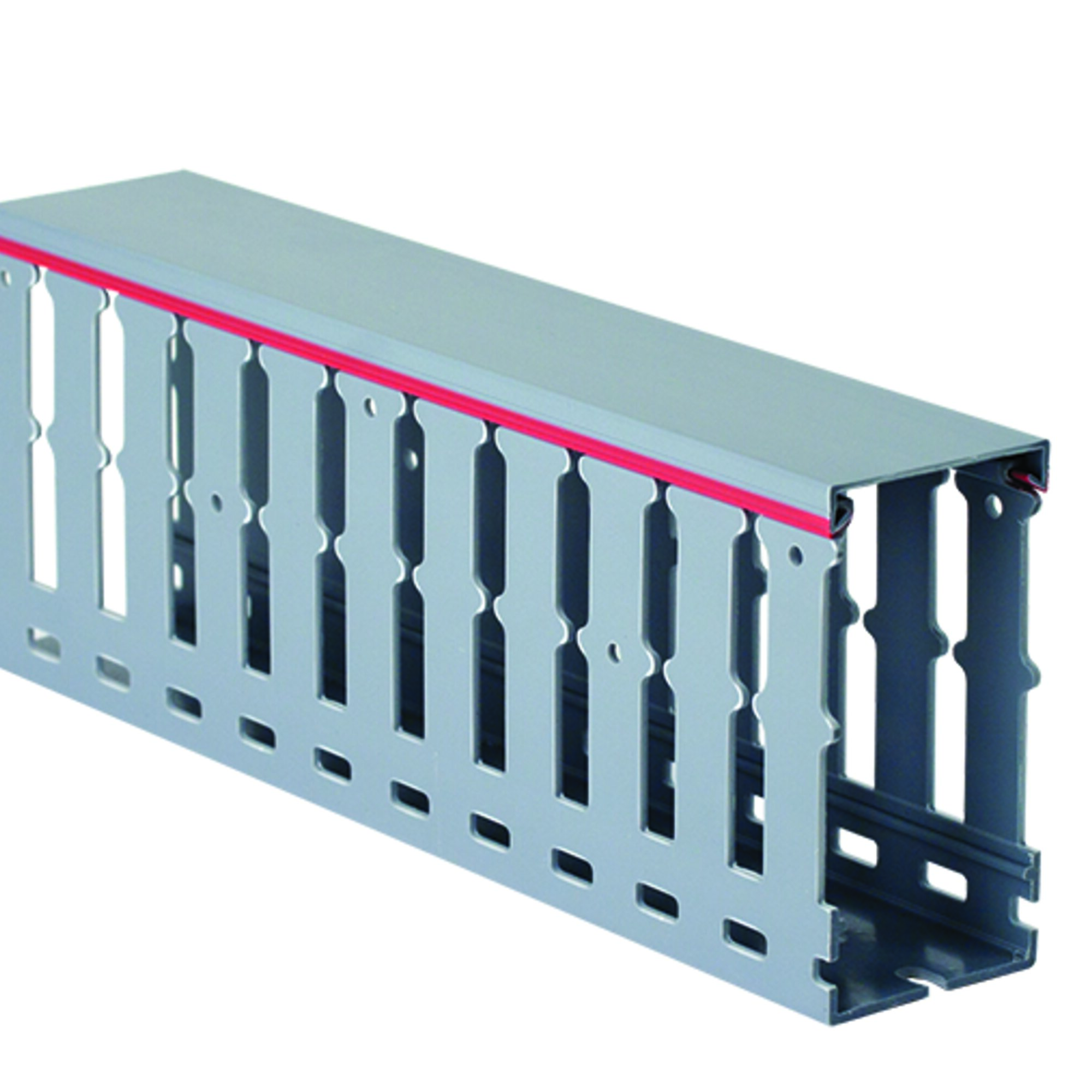

Perforated ducts, gray RL12 60x40

Code: 00135RL
Perforated ducts, gray RL12 60x40
  • To ask a question
Colour Grey
Width, mm 60
Halogen free No
Height, mm 40
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable No
Useful cross section, mm² 2025
Distance of slots, mm 20
Slit width, mm 8
With cover Yes
Color gray
Material PVC
Height, mm 40
Width, mm 60
Length, mm 2000
Product type Perforated ducts series RL6, RL12,RL75
Accessories

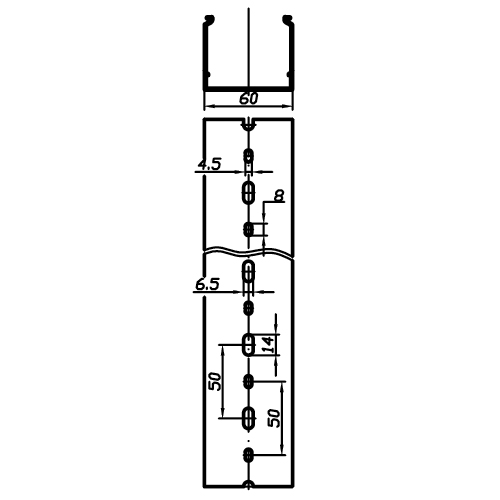

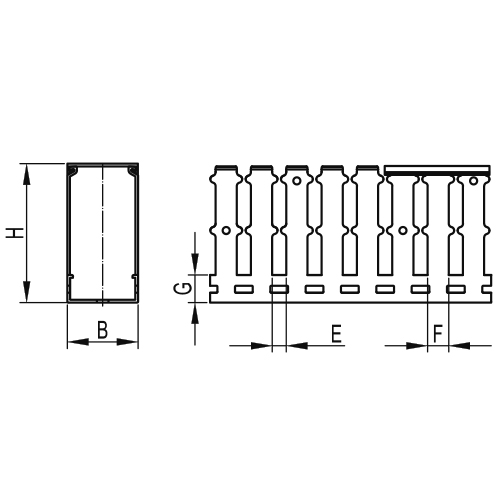

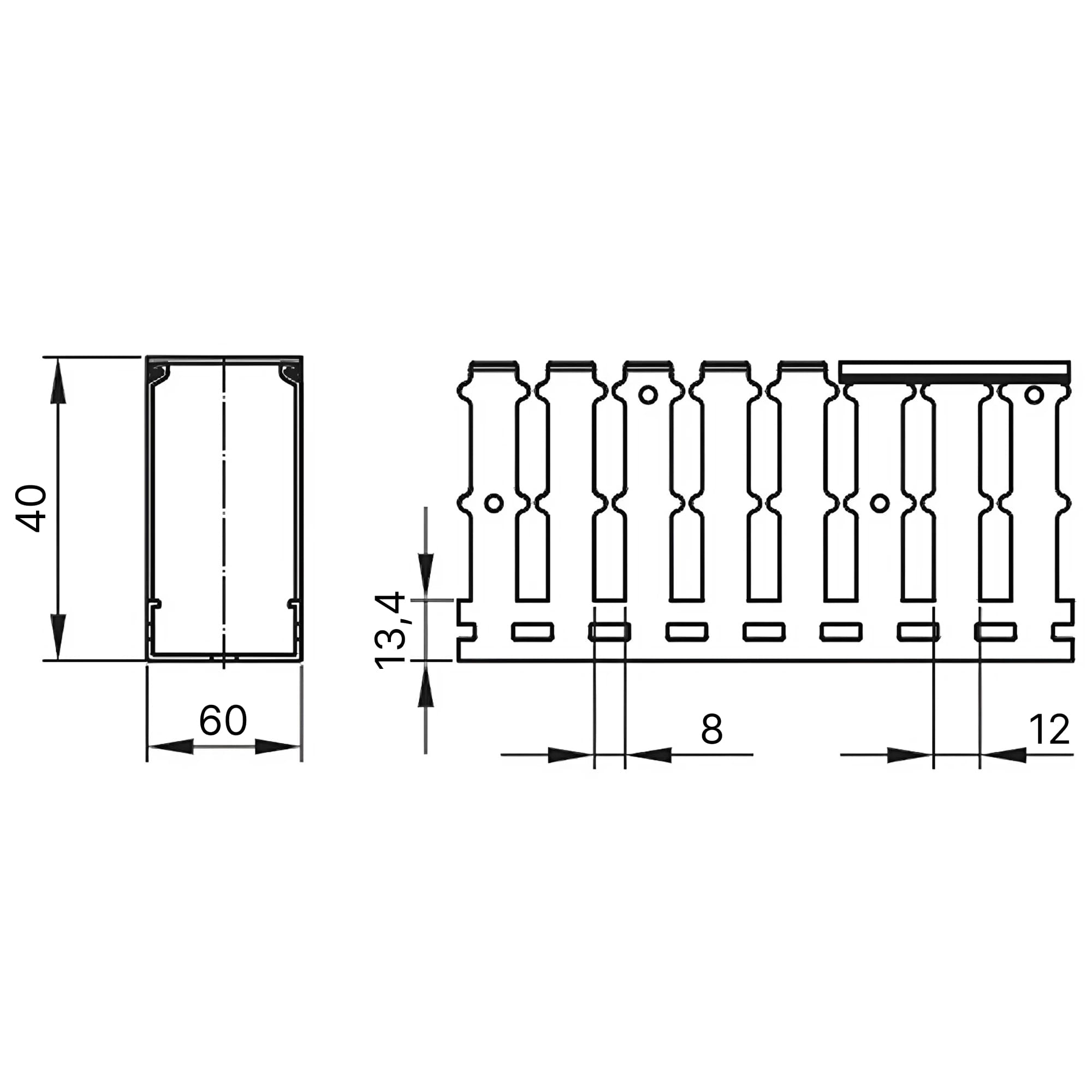

Drawings
Seria Name Eplan DWG STEP
Perforated ducts - "Quadro"
Perforated ducts - "Quadro"
