Color gray
Material PVC
Height, mm 40
Width, mm 40
Length, mm 2000
Colour Grey
Width, mm 40
Halogen free No
Height, mm 40
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable No
Useful cross section, mm² 1600
Distance of slots, mm 20
Slit width, mm 8
With cover Yes

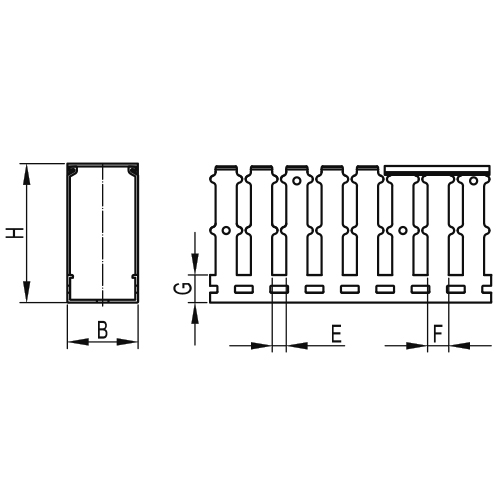

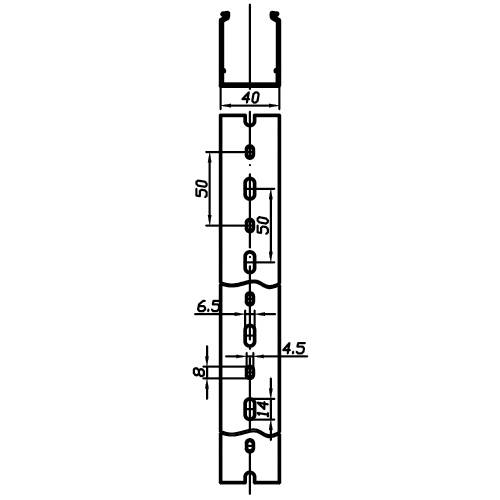

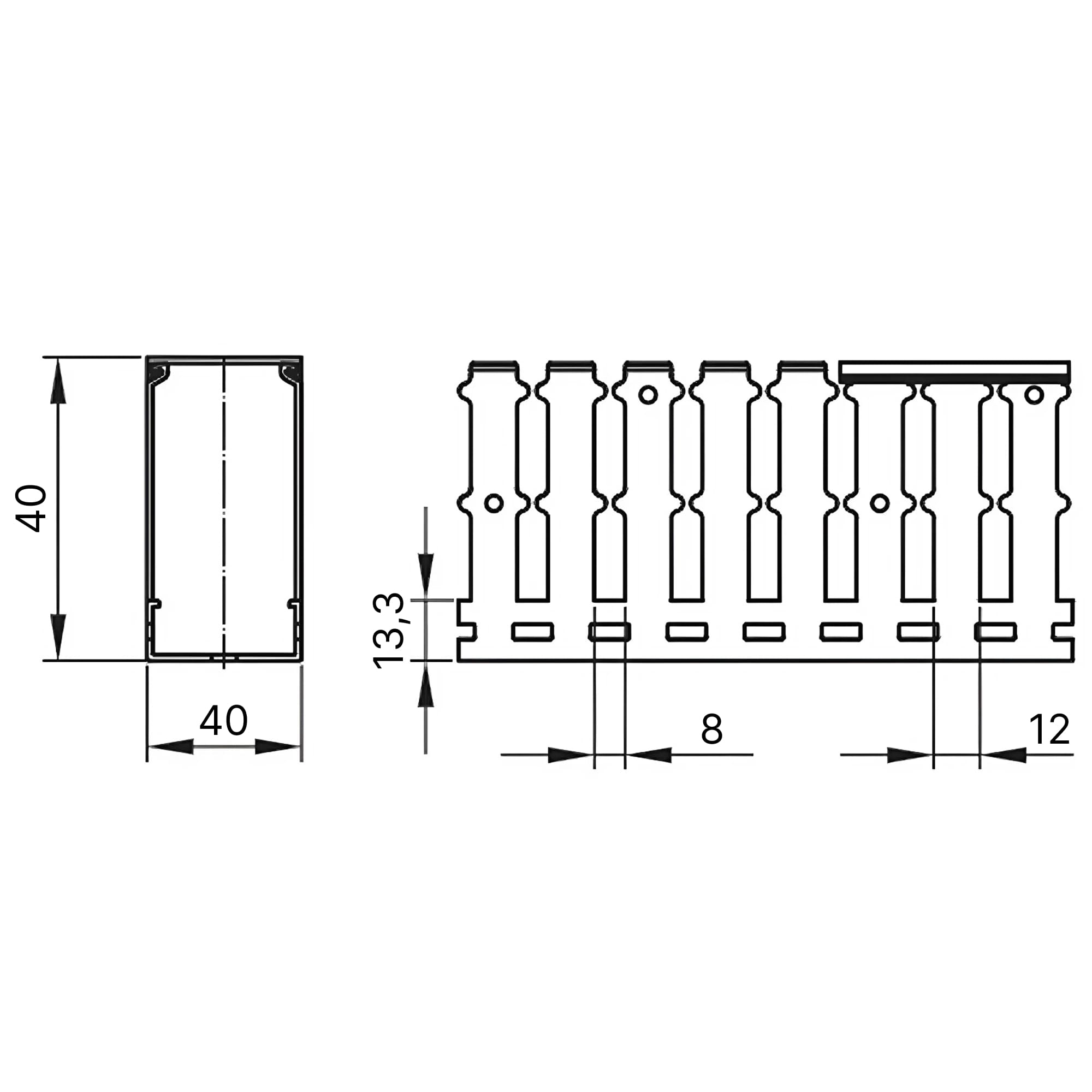

Drawings
Seria Name DWG STEP Eplan

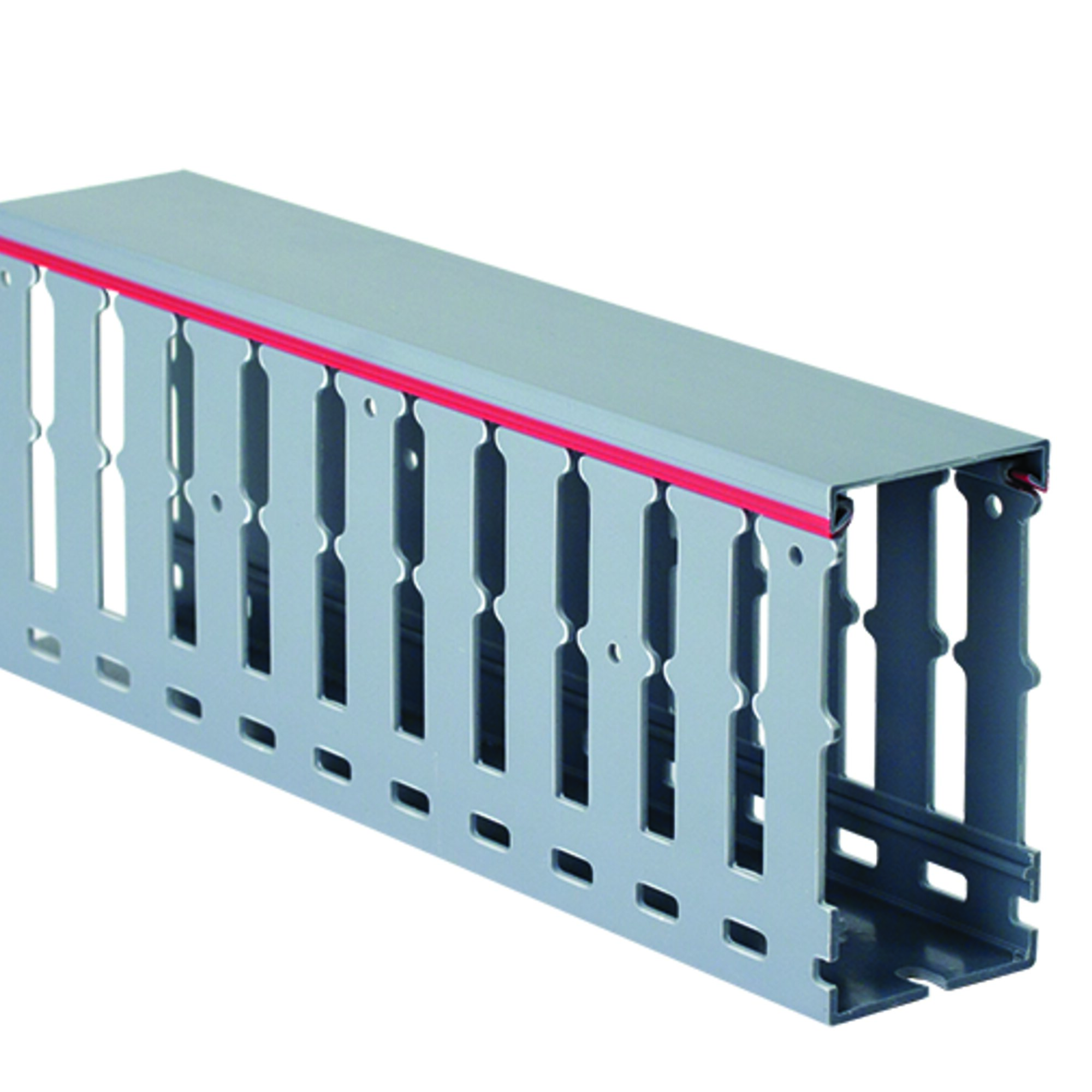

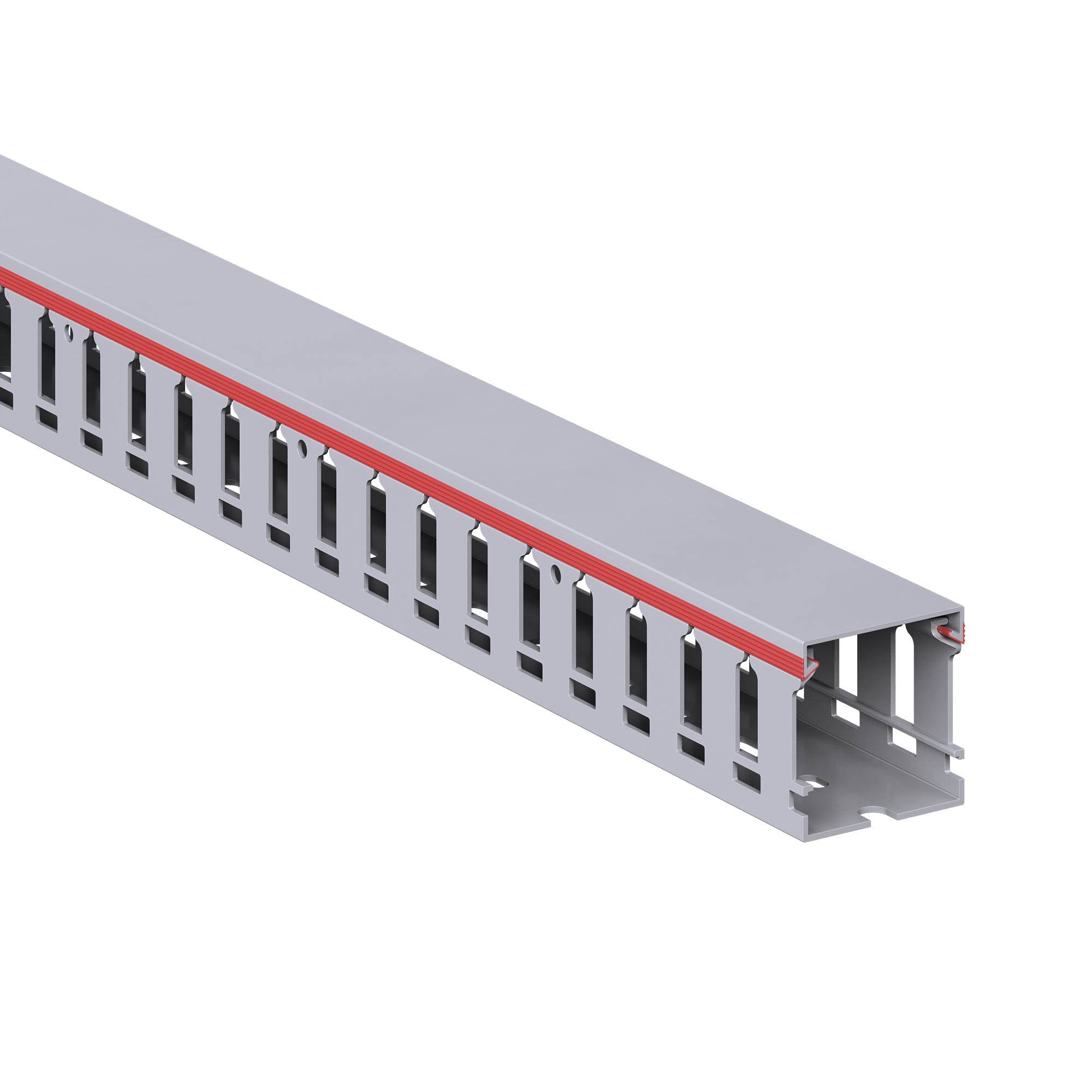

Quadro - perforated ducts
Quadro - perforated ducts
