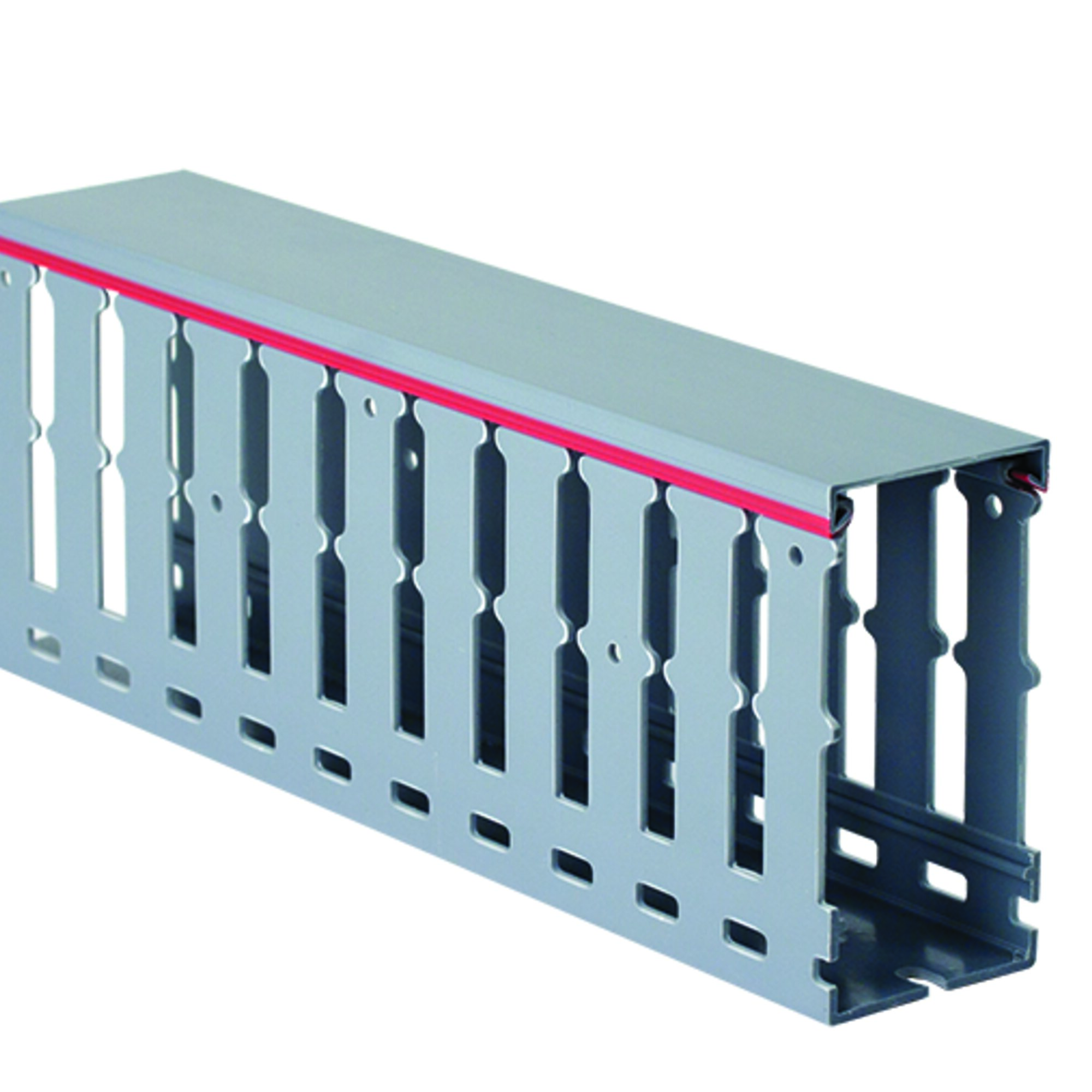

Perforated ducts, gray RL12 25x30

Code: 00127RL

To ask a question

Color	gray
Material	PVC
Length, mm	30

Width, mm	25
Length, mm	2000

Colour	Grey
Width, mm	25
Halogen free	No
Height, mm	30
Flexible	No
Type of side wall	Hole-/slot punching
Self-extinguishing	Yes

Length, mm	2000

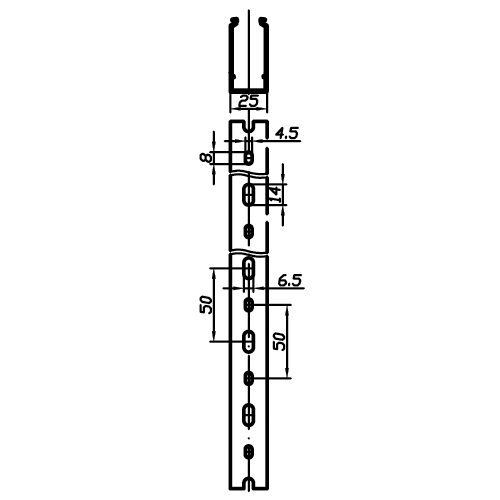

Type of fastening	Bottom perforation
Current leak stable	No
Useful cross section, mm²	578
Distance of slots, mm	20
Slit width, mm	8
With cover	Yes

Accessories

Kit holders perfoduct, for hole 22mm, 1 kit - 50 pcs.

Code: R5DPC22

Kit holders perfoduct, for hole 30mm, 1 kit - 30 pcs.

Code: R5DPC30

Kit holders perfoduct, for hole 96x96mm, 1 kit - 10 pcs.

Code: R5DPC96

Kit holders perfoduct, for hole 72x72mm, 1 kit - 10 pcs.

Code: R5DPC72

Tool FIXO RL4 for duct retainers DUCTAFIX RL4

Code: 06500RL

Tool FIXO RL6 for duct retainers DUCTAFIX RL6

Code: 06501RL

A support DINBLOK 3 for OMEGA profile

Code: 07103

Cover for perforated ducts RL 25mm

Code: 00702RL

Laser labels DUCTAMARK 1

Code: 07501

Duct retainers DUCTAFIX RL4

Code: 06502RL

Duct retainers DUCTAFIX RL6

Code: 06511RL

CL 40x40 cable holder

Code: 05104RL

CL 40x60 cable holder

Code: 05107RL

CL 60x60 cable holder

Code: 05108RL

Kit holders perfoduck, back, 4 pcs

Code: R5DSF01

Kit holders perfoduck, front, 4 pcs

Code: R5DSF02

FIXING INSERTS ZP1

Code: 06560

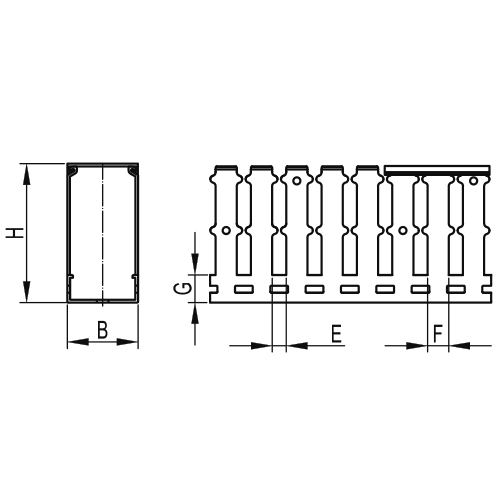

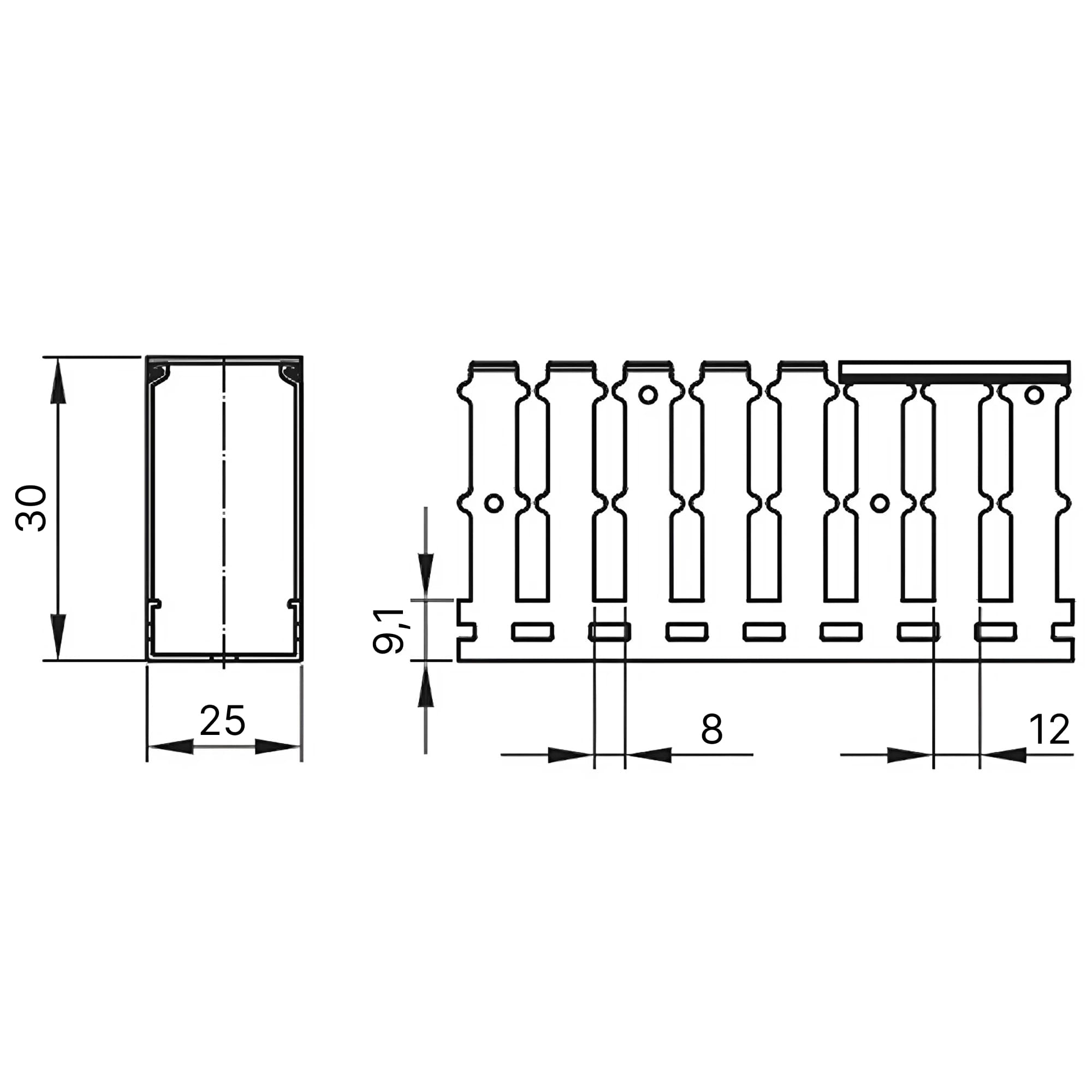

Drawings

Seria	Name	DWG	STEP	Eplan
Quadro - perforated ducts	Perforated ducts, gray RL12 25x30	ZIP 139.17 kB	ZIP 782.84 kB
Quadro - perforated ducts	The System "Quadro"			RAR 27.23 MB

Certificates

Name	Document
Quadro_Perforated straight elements - Exemption letter for fire safety certificates for accessories_1	PDF 1.22 MB
Quadro_Perforated ducts - Fire safety certificates for plastic ducts series Т1,Т1-Е,Т1-F,T1-EF,TD,TPD,DN-A,T1-N,T1-EN_1	PDF 3.87 MB
Quadro_Perforated ducts - Exemption letter Tool AN и 4I for electrical boxes	PDF 6.87 MB
Quadro_Perforated ducts - Fire safety certificates for electrical boxes	PDF 3.87 MB
Quadro_Perforated ducts - Certificate of conformity to GOST R for perforated duct seria RL	PDF 1.13 MB
Perforated ducts - Fire safety certificates for plastic ducts series RL6, RL12, RL75	PDF 2.39 MB
"Quadro"_Perforated ducts - Certificate of conformity to TÜV for perforated duct series RL6, RL12, RL75	PDF 1.59 MB
“Quadro”_Perforated ducts - EC Declaration of conformity signed for perforated duct series RL6, RL12, RL75	PDF 409.18 kB
“Quadro”_Perforated ducts - Certificate of conformity to EN for perforated duct series RL6, RL12, RL75	PDF 1.04 MB
“Quadro”_ Exemption Letter for perforated boxes	PDF 833.29 kB
