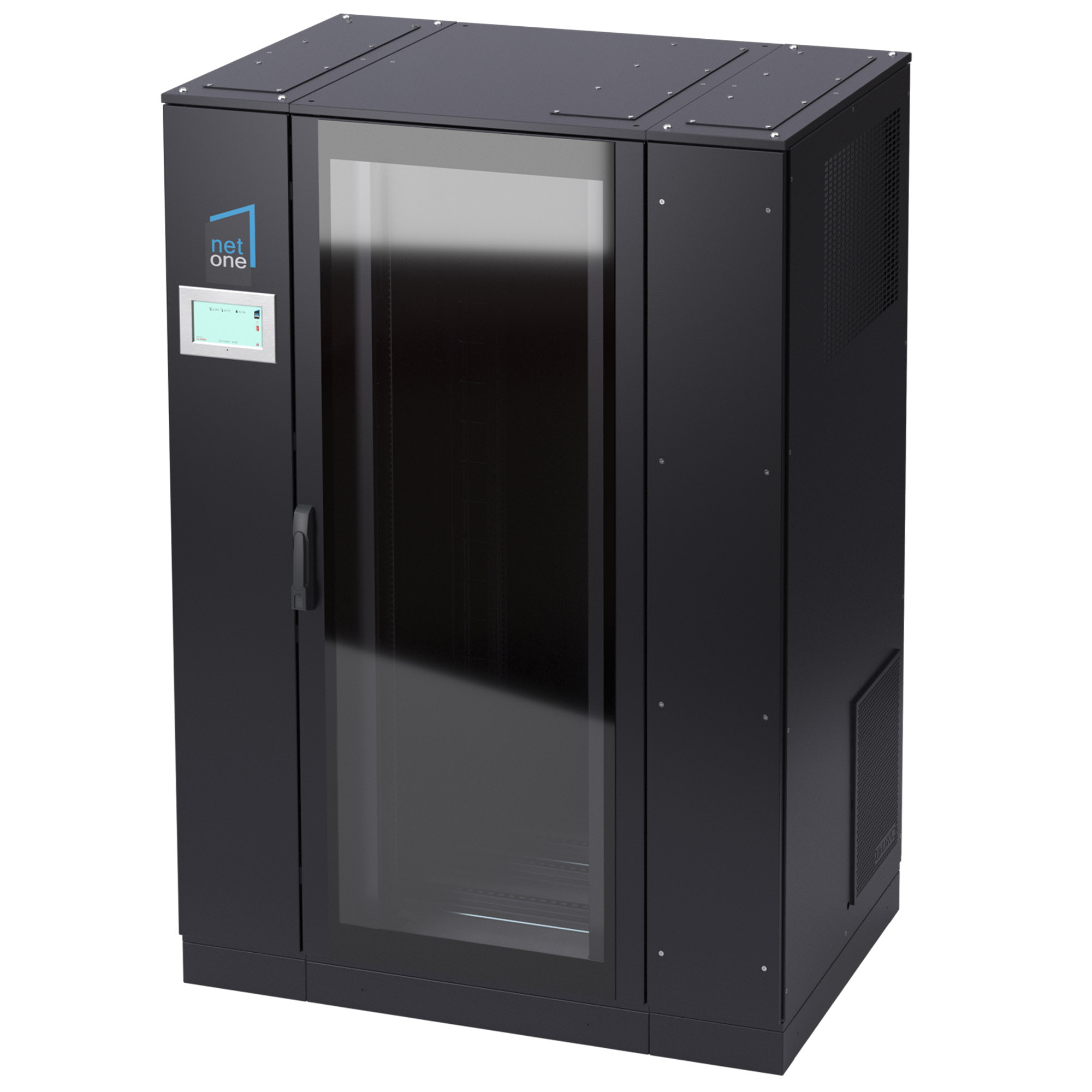

Net One with 3ph 5+5 kW air conditioning UPS 5 kVa 10' with monitoring and fire fighting R-Line
Code:
CDC50R05PR
Code:
CDC50R05PR
| Colour | Black |
| Width, mm | 1400 |
| Model | With permanent frame |
| Height, mm | 2100 |
| Depth, mm | 1000 |
| RAL-number | 9005 |
| Number of doors | 2 |
| Material | Steel |
| Number of height units | 42 |
| Degree of protection (IP) | IP54 |
| Surface finishing | Powder coating |
| Mounting level | Front and rear |
| Type of profile rail | L-shaped |
| With roof plate | Yes |
| With earthing | Yes |
| With front door | Yes |
| With sidewall | No |
| Demountable | No |
| Modular spacing | 482.6 mm (19 inch) |
| Type of ventilation | Active |
| Max. load capacity, kg | 1500 |
| UPS | Single-phase |
| UPS capacity | 5 kVA |
| Air-conditioner | Three-Phase |
| Air-conditioner voltage | 400V |
| Air-conditioner quantity | 1+1 |
| Air-conditioner capacity | 5+5 kW |
| Fire extinguishing system | Yes |
