Perforated ducts, gray RL6 40x60

Code: 01107RL

Perforated ducts, gray RL6 40x60

Code: 01107RL
Colour Stone grey
Width, mm 40
Halogen free No
Height, mm 60
Flexible No
Type of side wall Hole-/slot punching
Self-extinguishing Yes
Length, mm 2000
Type of fastening Bottom perforation
Current leak stable Yes
Useful cross section, mm² 2019
Distance of slots, mm 10
Slit width, mm 4
With cover Yes
Color gray
Material PVC
Height, mm 60
Width, mm 40
Length, mm 2000
Product type Perforated ducts series RL6, RL12,RL75
Accessories
The accompanying goods

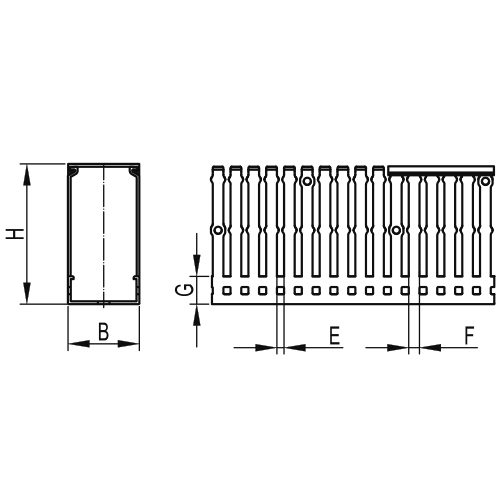

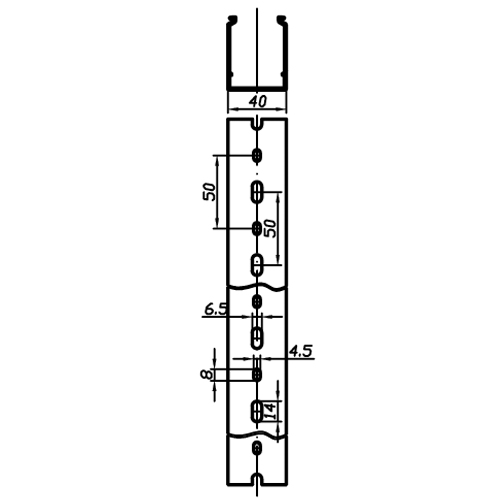

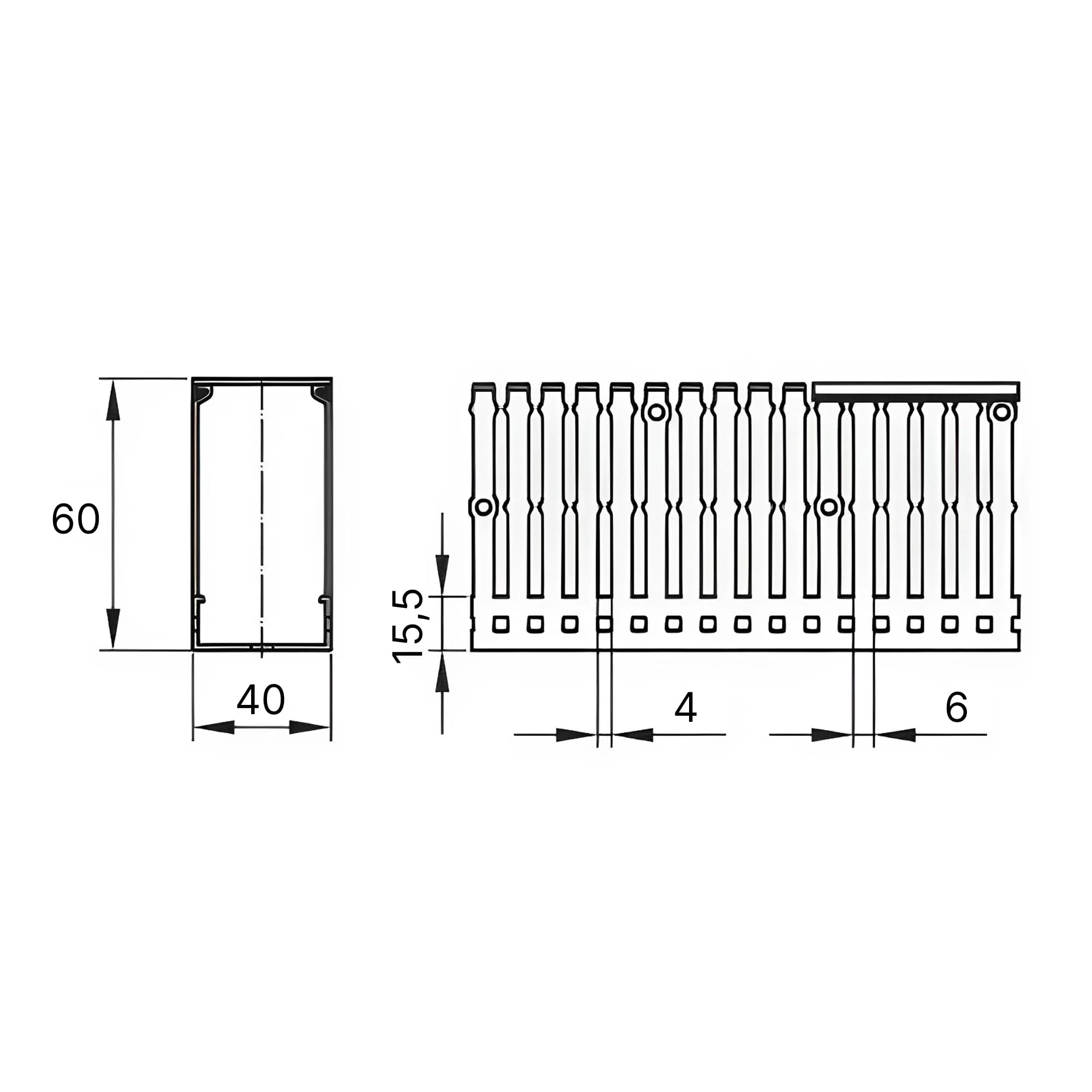

Drawings
Seria Name Eplan DWG STEP
