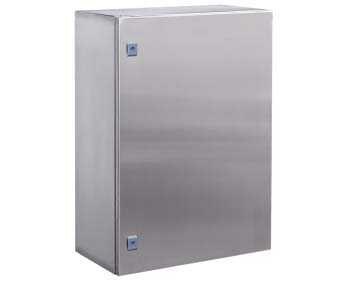

Wall cabinet CE, stainless steel (AISI 304), 400 x 600 x 200mm, with flange

Code: R5CEF04621
Colour Grey
Width, mm 600
Height, mm 400
Depth, mm 200
With mounting plate Yes
Number of doors 1
Number of locks 1
EMC-version No
With glazed door No
Floor mounting possible No
Material Stainless steel
Wall mounting possible Yes
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable No
Tackable No
With ventilation door No
Type of surface Untreated
Surface mounting Yes
With backside door No
Flush-mounted installation No
Color stainless steel
Raw material stainless steel
Height, mm 400
Width, mm 600
Thickness, mm 1.5
Ingress Protection rating, IP 66
Shock resistance, J 10
Depth, mm 200
Accessories
No name
Code: R5LEST160
Metal type key FIAT
Code: R5CE237
No name
Code: R5FPST01
No name
Code: R5FPST02
No name
Code: R5FPST03
No name
Code: R5HTB10
The accompanying goods
