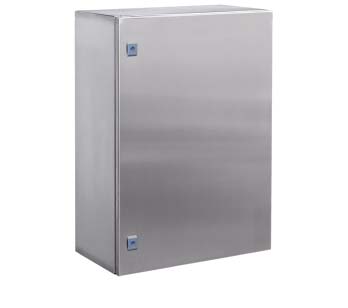

Hinged box CE with M/P stainless steel steel AISI 304 HxWxD 400x300x200 mm without flange

Code: R5CEB04321
Hinged box CE with M/P stainless steel steel AISI 304 HxWxD 400x300x200 mm without flange
  • To ask a question
Colour Grey
Width, mm 300
Height, mm 400
Depth, mm 200
With mounting plate Yes
Number of doors 1
Number of locks 1
EMC-version Yes
With glazed door Yes
Material Stainless steel
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable Yes
Tackable Yes
With ventilation door Yes
Surface finishing Untreated
With backside door Yes
Material Stainless steel AISI 304
Enclosure type Wall-mounted
Enclosure specification With a blank door
Product type Enclosure
Accessories
Drawings
Seria Name Insulation cut out DWG (dynamic.)
