Double-wall tube HDPE outdoor flex. ? 90 mm, SN 8, V0, UF, with pull, 50 m in coil, black color
Code:
151990
Code:
151990
| UV resistant | Yes |
| Compressive strength, N | 540 |
| Bending radius, static, mm | 720 |
| Material filament | Without coil |
| Plain interior | Yes |
| Flexibility | Flexible |

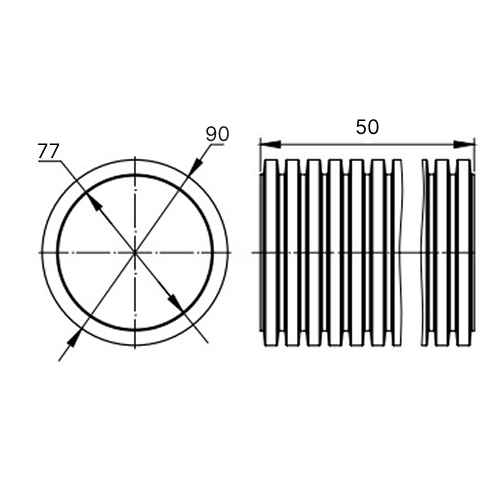

| Nominal diameter, mm | 90 |
| Colour | Black |
| Outer diameter, mm | 90 |
| Inner diameter, mm | 77 |
| Material | Solid PE (HD-PE) |
| Color | Black |
| Material | PVC |
| -5°С ... +60°С | -25°С ... +90°С |
| Ingress Protection rating, IP | IP44 (IP55) |
| от -25°С до +60°С | from -55°С to +90°С |
| Cord for wires | Yes |
| ТУ 2248-012-47022248-2009 | Technical specifications 2248-047-47022248-2015 |
| 3 года | 2 years |
| 15 лет | 2 years |
| Length | 50 m |
| 8 диаметров мм | 8 diameters mm |
| Product type | Double-walled pipes |
| Ring stiffness | 8 kPa |
| Compression resistance | 540 N |
| Complete set of broaching | Yes |
| Packing type | Coil |
| Packing standards | 50 m |
