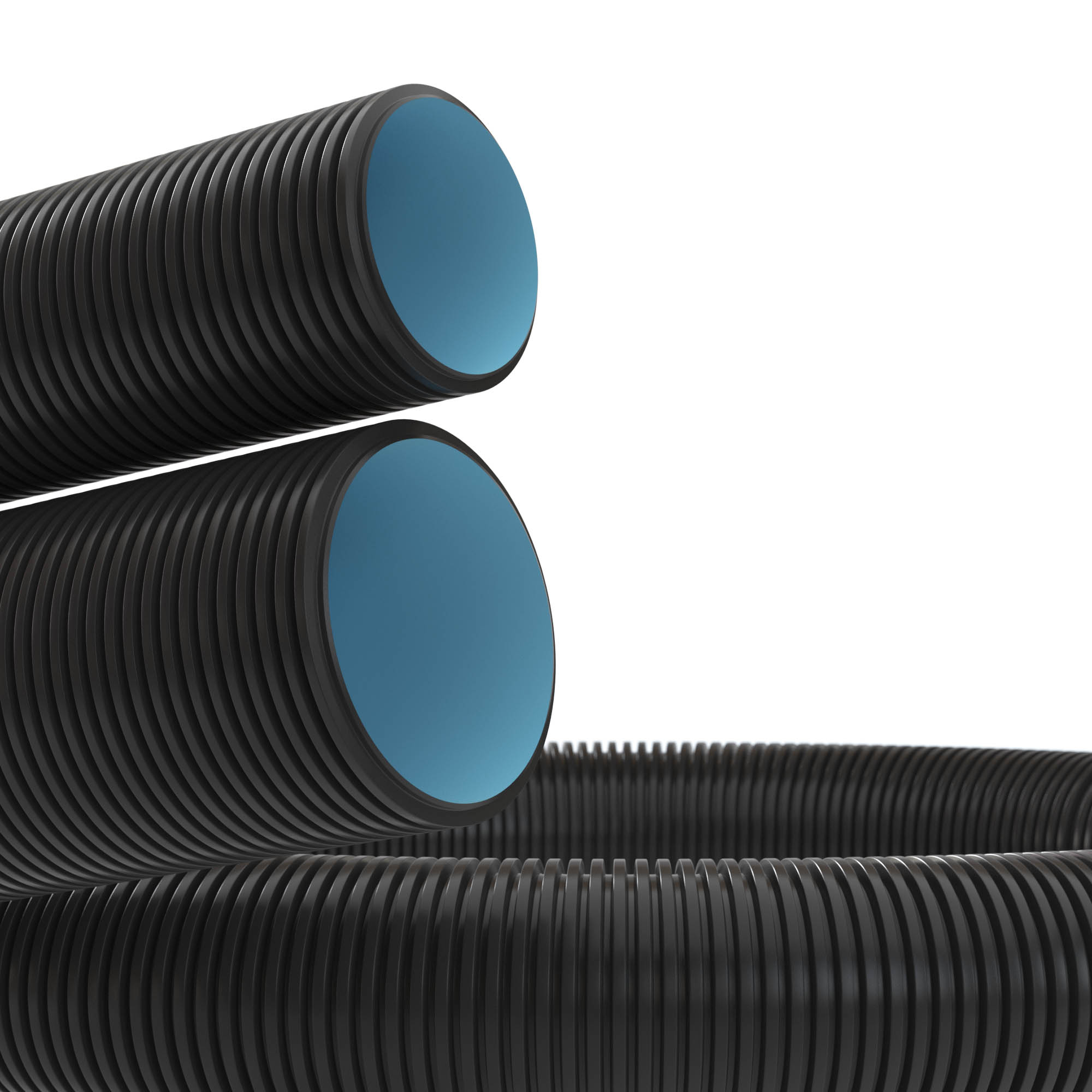

Double-wall tube HDPE outdoor flex. ? 110 mm, SN 8, V0, UF, with pull, 50 m in coil, black color
Code: 151911
Double-wall tube HDPE outdoor flex. ? 110 mm, SN 8, V0, UF, with pull, 50 m in coil, black color
Code: 151911
| Colour | Black |

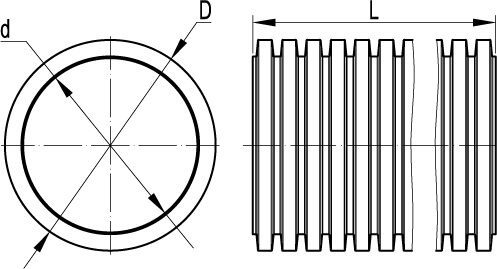

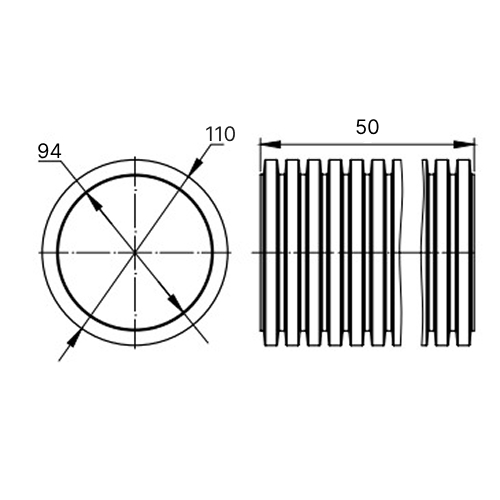

| Outer diameter, mm | 110 |
| Inner diameter, mm | 94 |
| Material | Polyethylene |
| Surface mounted | Да |
| Outdoor installation | Да |
| Suitable for underground installation | Нет |

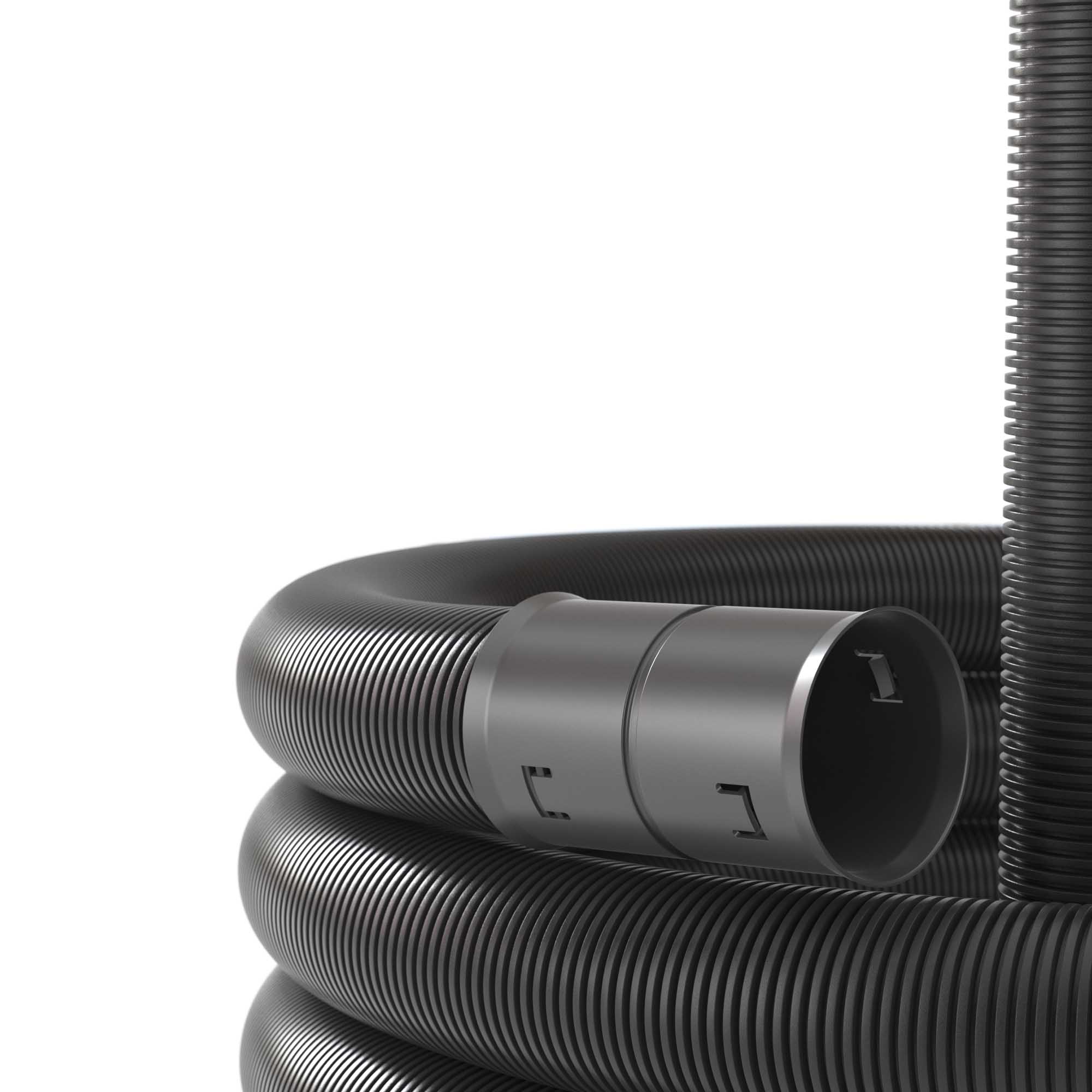

| With sleeve | Да |
| High conducting inner coating | Да |
| Color | Black |
| Material | PVC |
| -5°С ... +60°С | -25°С ... +90°С |
| Ingress Protection rating, IP | IP44 (IP55, IP67) |
| от -25°С до +60°С | from -55°С to +90°С |
| Cord for wires | Yes |
| ТУ 2248-012-47022248-2009 | Technical specifications 2248-047-47022248-2015 |
| 3 года | 2 years |
| 15 лет | 2 years |
| Length | 50000 mm |
| 8 диаметров мм | 8 diameters mm |
| Ring stiffness | 8 kPa |
| Compression resistance | 680 N |
| Complete set of broaching | Yes |
| Packing type | Coil |
| Packing standards | 50 m |
