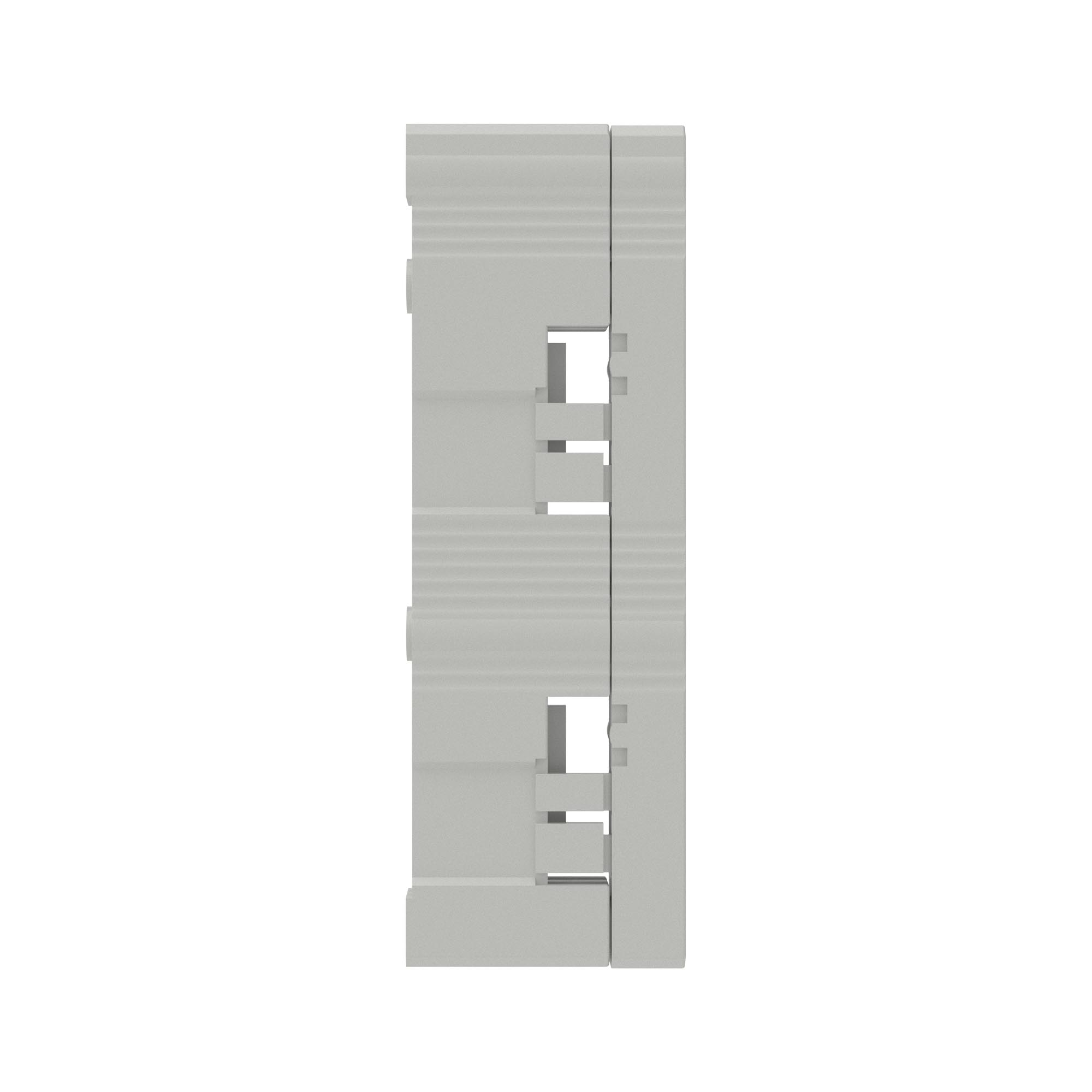

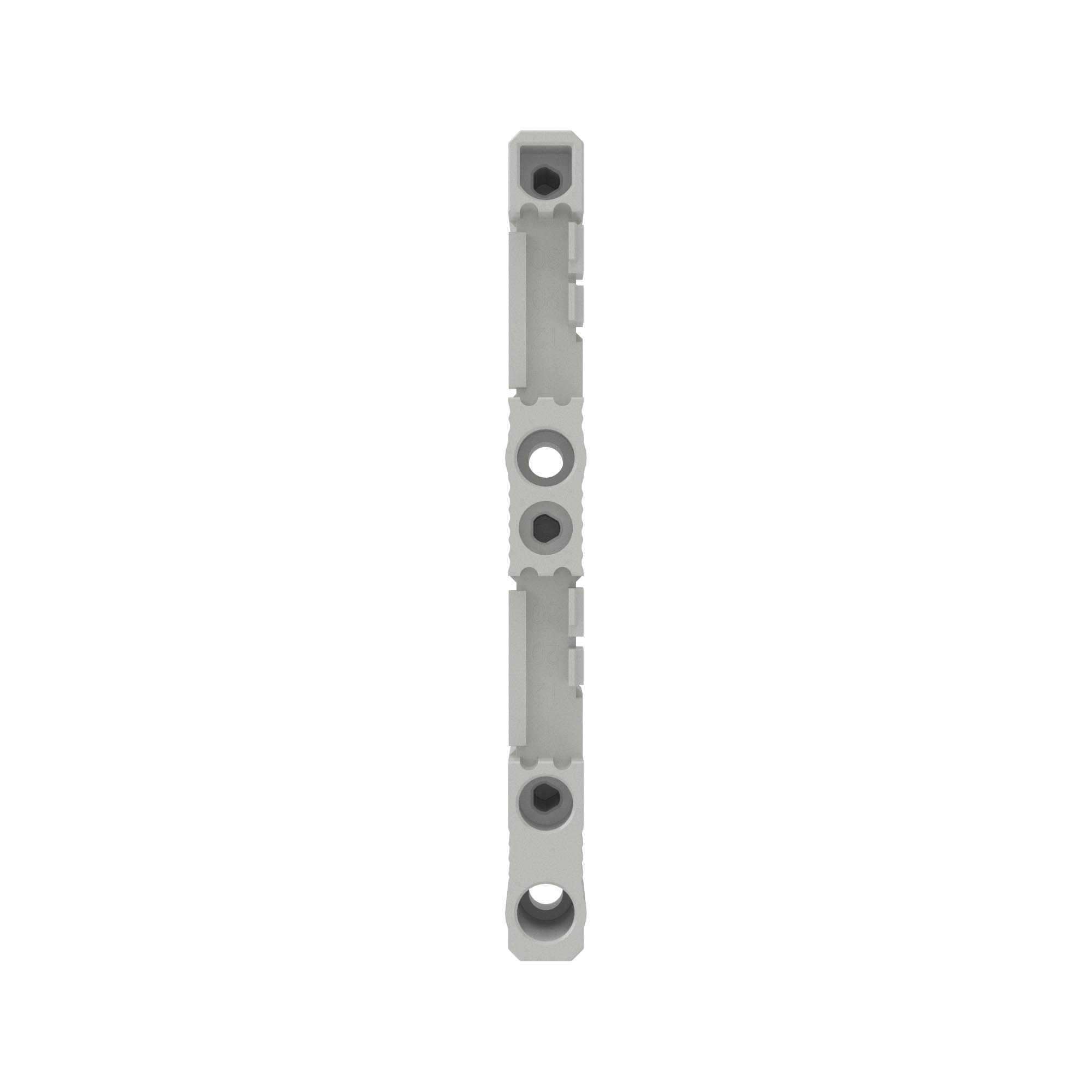

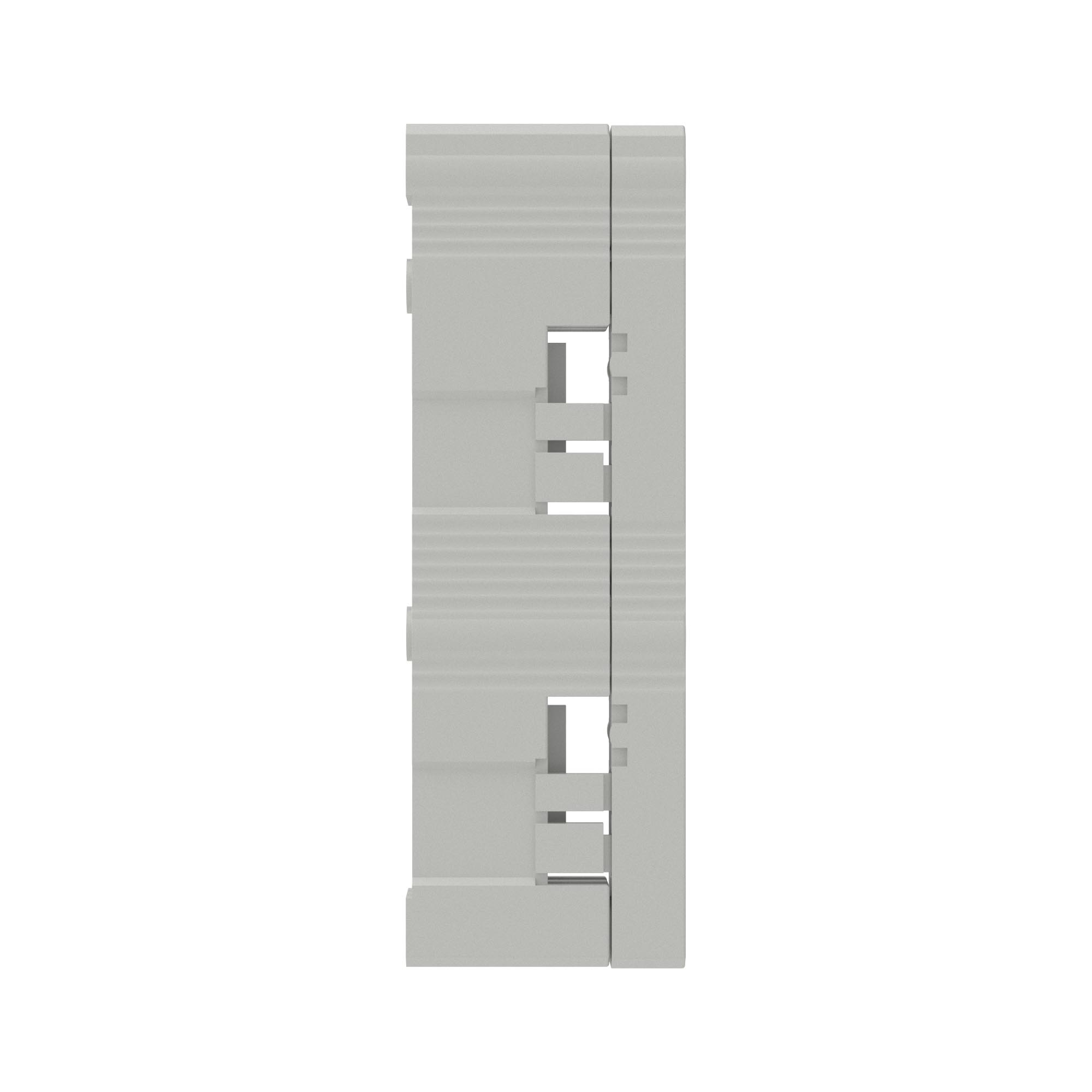

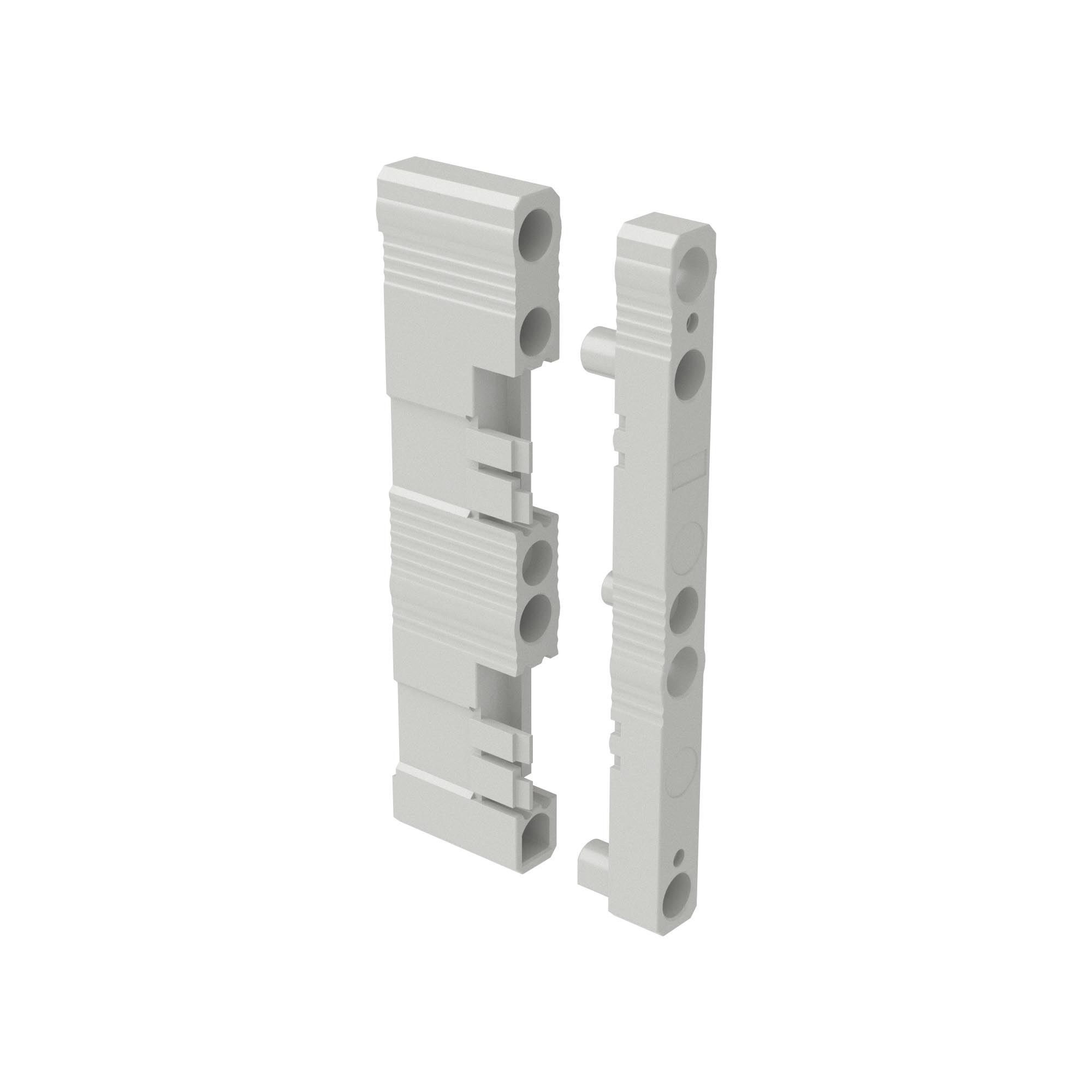

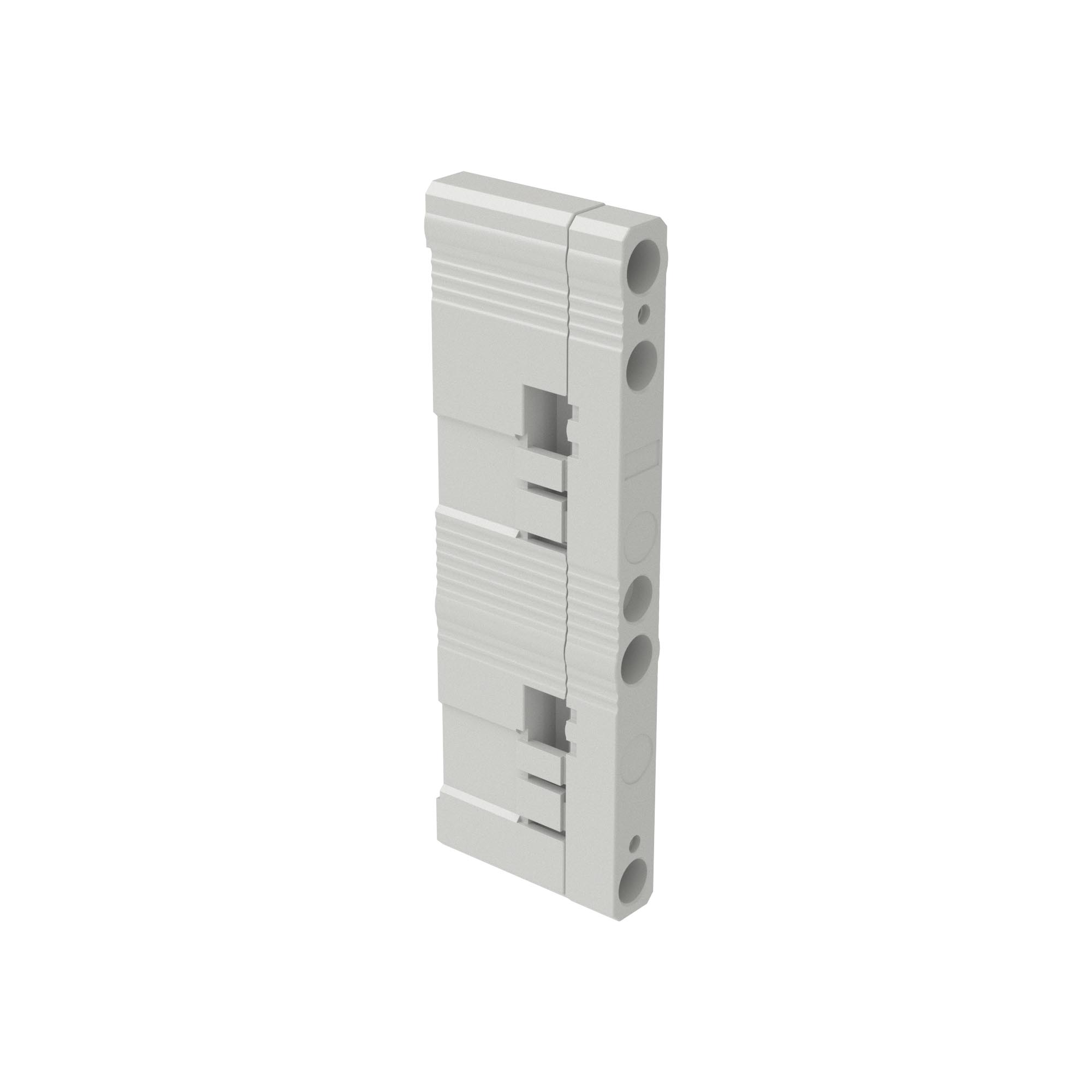

Busbar holder 12,20,30x5,10 2P 60mm
Code:
R5BBH060152P
Busbar holder 12,20,30x5,10 2P 60mm
Code:
R5BBH060152P
| Number of poles | 2 |
| Busbar distance, mm | 60 |
| Max. rated current, A | 630 |
| Product type | Main bus system insulator |
| Q'ty of busbars for poles | 1 |
| Number of poles | 2 |
| Distance between poles | 60 mm |
| Length | 138 mm |
| Width | 13,8 mm |
| Height | 45 mm |
| Material | PA66, GV30, V0 |
| Bolt width | 12, 20, 30 mm |
| Bus thickness | 5, 10 mm |
