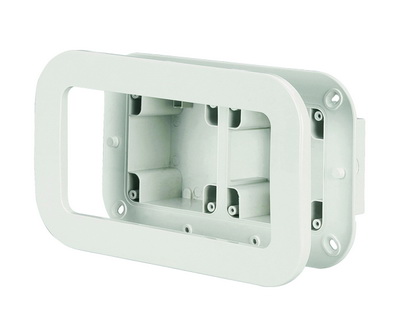

Box M95 for flush mounting. Twin.

Code: DIS137122
Box M95 for flush mounting. Twin.
Box M95 for flush mounting. Twin.
Width, mm 195
Temperature of mounting, °C -50 ... +60
Temperature of operation, °C from -50 to +60
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 40
Model Surface mounted (plaster)
Material Plastic
Type of fastening External mounting
Degree of protection (IP) IP66
Military model No
Identification colour Grey
Voltage acc. EN 60309-2 Other
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Angled
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Drill hole distance vertical 70
Flange size vertical 575
Flange size horizontal 280
Width of device 70
Height of device 70
Depth of device 153
Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
The System "Quadro"
RAR
27.23 MB
Quadro - industrial plugs
The system "Quadro" industrial connectors
ZIP
31.52 MB
Certificates
Name Document
Certificate of conformity to for the sockets and plugs (50 – 400 V) SCAME PARRE S.P.A.
PDF
4.91 MB
