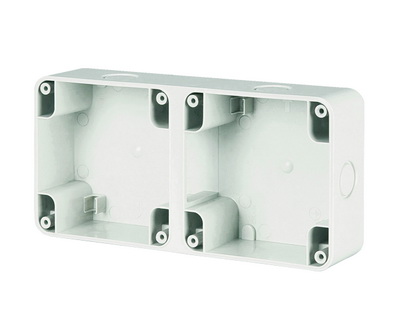

Box M95 for surface mounting Twin

Code: DIS137102
Width, mm 250
Temperature of mounting, °C -50 ... +60
Temperature of operation, °C from -50 to +60
Temperature of operation, °C 60
Shock resistance, J 2
Depth, mm 95
Model Surface mounted (plaster)
Material Plastic
Type of fastening External mounting
Degree of protection (IP) IP66
Military model No
Identification colour Grey
Voltage acc. EN 60309-2 Other
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Right-angled
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Drill hole distance vertical 85
Flange size vertical 125
Flange size horizontal 136
Width of device 110
Height of device 110
Depth of device 133
