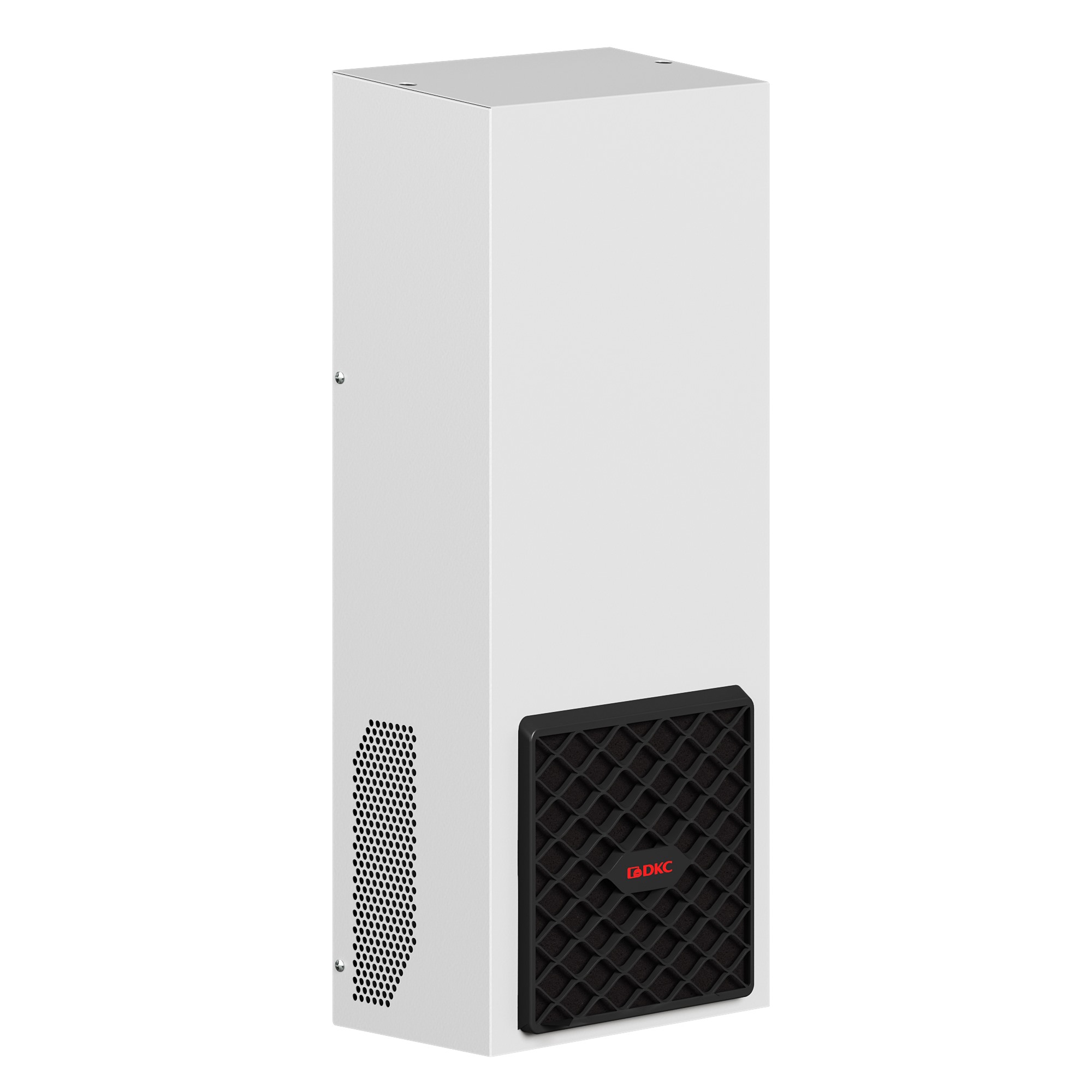

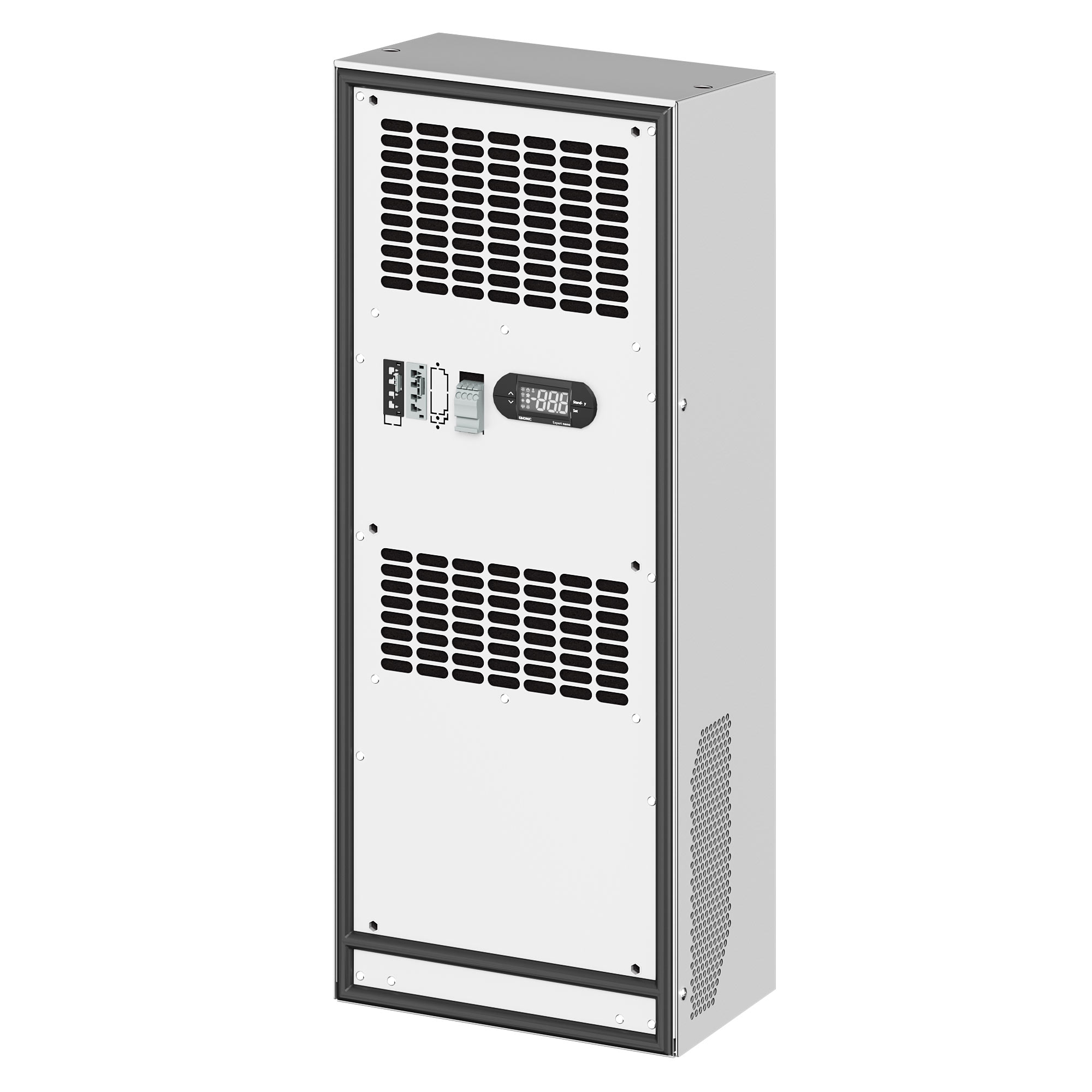

Outdoor wall-mounted conditioner for harsh enviroments +65°С, 3000 W, 400 V, 3 ph, 1200x404x250 mm
Code:
R5KLM30043LOHT
Code:
R5KLM30043LOHT
| Width, mm | 404 |
| Model | Air/air |
| Height, mm | 1200 |
| Depth, mm | 250 |
| Voltage type | AC |
| With heating function | No |
| With temperature control | Yes |
| Function master/slave | Yes |
| Ambient temperature during operating, °C | -40...65 |
| Operating voltage at AC 50 Hz, V | 400...400 |
| Operating voltage at AC 60 Hz, V | 400...400 |
| Total cooling capacity according to EN 14511 at 35/35 °C, W | 3000 |
| Speed-regulated | No |
| Product type | Air conditioner |
| Class of cooling output, W | 3000 |
| Rated operating voltage V, ~, Hz | 400 V, 3 p, 50/60 Hz |
| Version of cooler | Outdoor |
| Mounting type | Wall-mounted |
| External dimensions of cooler (W x H x D), mm | 1200 x 404 x 250 |
| Temperature regulating range, ˚C | +25…+40 |
| Operating temperature range, ˚C | -40…+65 |
| Material | Steel sheet |
| Degree of protection, internal circuit | IP55 |
| Degree of protection, external circuit | IP34 |
| Weight, kg | 70 |
| Refrigeration power DIN 3168 (L35/L35), W | 3000 |
| Refrigeration power DIN 3168 (L35/L50), W | 1700 |
| Rated power consumption (L35/L35), kW | 1.1 |
| Rated current, A | 3.5 |
| Protective device, A | 8 |
| Start-up current, A | 14 |
| Noise level, dB(A) | 71 |
| Coolant type | R134a |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.12.40.000 |
| Commodity Nomenclature of Foreign Economic Activity | 8415820000 |
