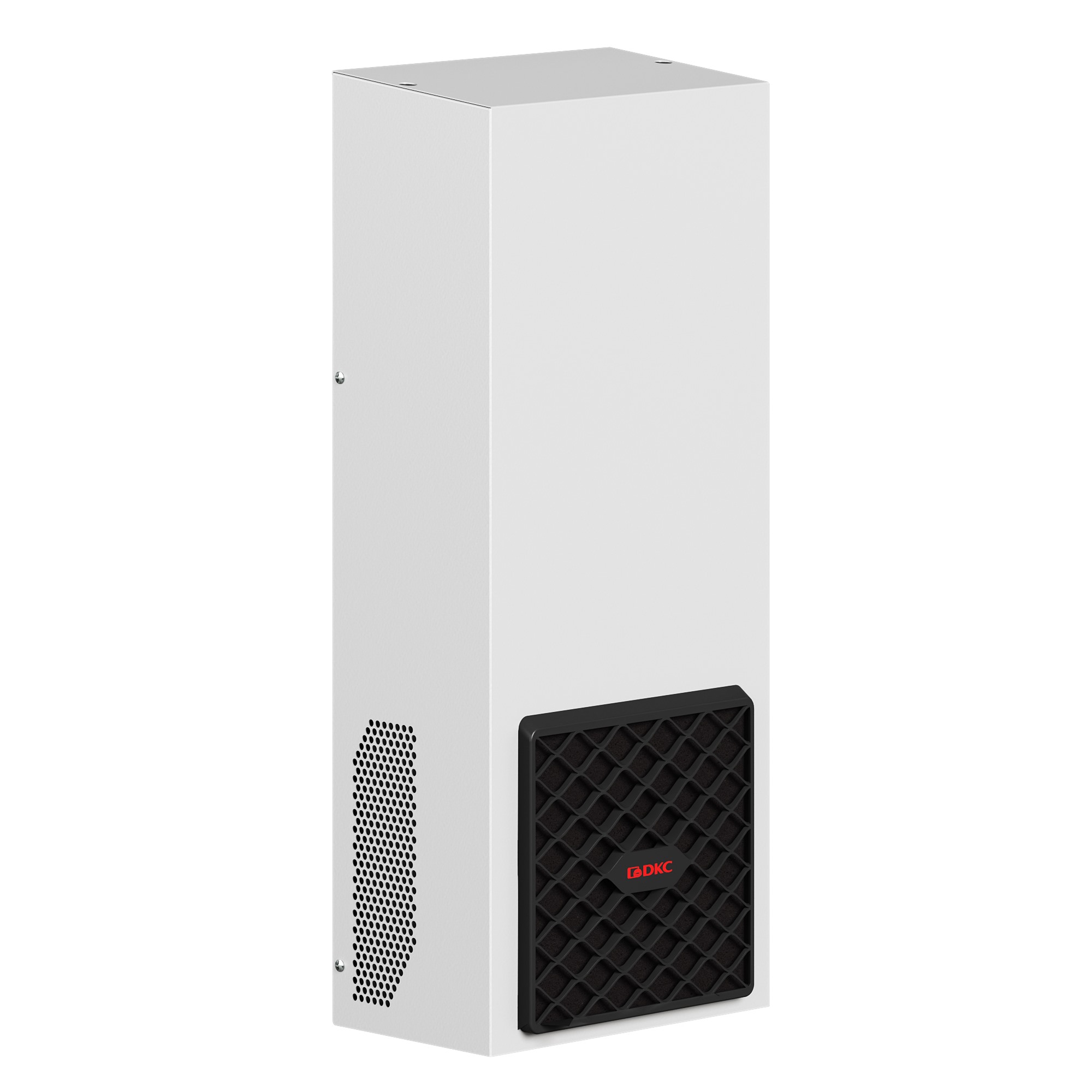

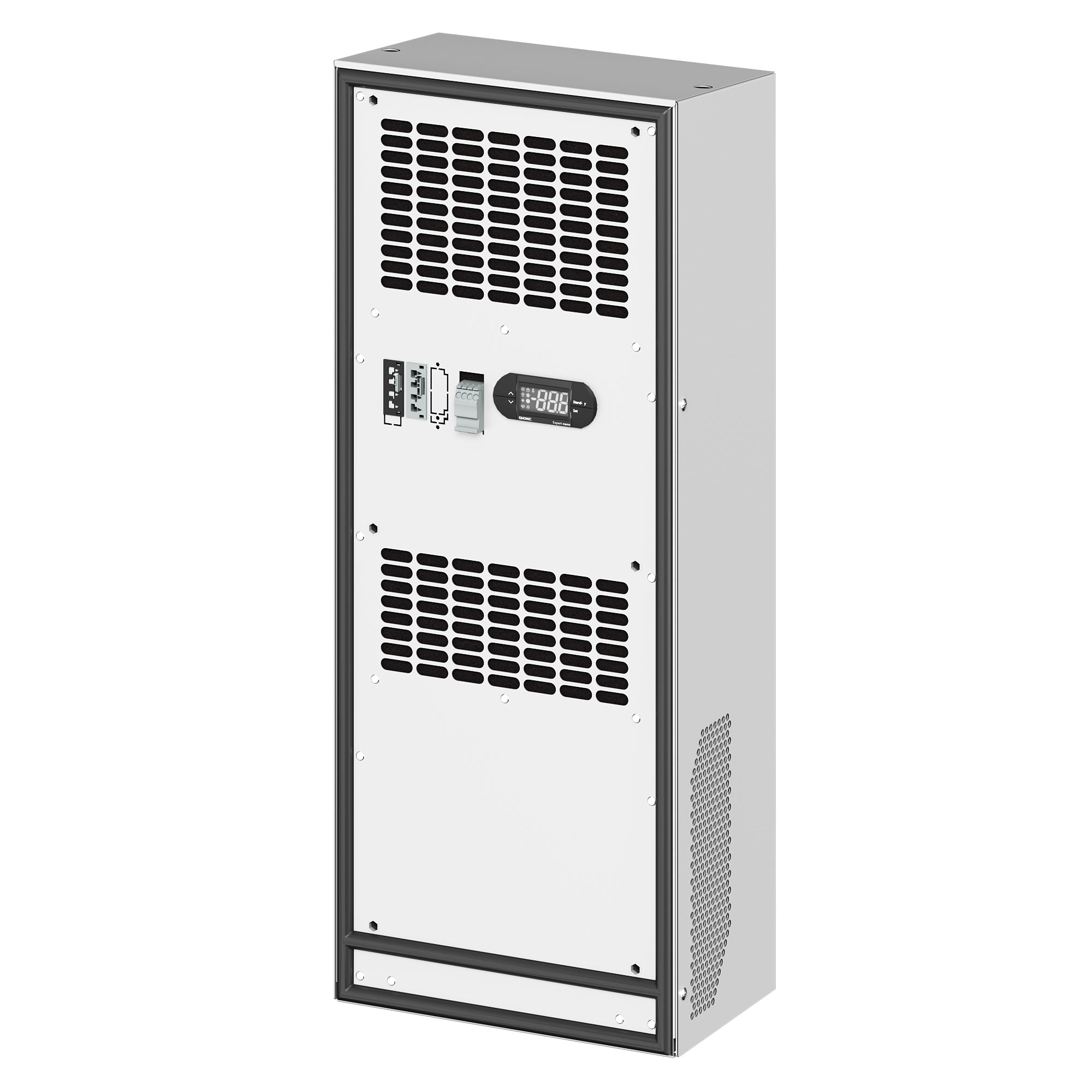

Outdoor wall-mounted conditioner for harsh enviroments +65°С, 800 W, 230 V, 1 ph, 780,5x316x190 mm
Code:
R5KLM08021LOHT
Code:
R5KLM08021LOHT
| Width, mm | 316 |
| Model | Air/air |
| Height, mm | 780.5 |
| Depth, mm | 190 |
| Voltage type | AC |
| With heating function | No |
| With temperature control | Yes |
| Function master/slave | Yes |
| Ambient temperature during operating, °C | -40...65 |
| Operating voltage at AC 50 Hz, V | 230...230 |
| Operating voltage at AC 60 Hz, V | 230...230 |
| Total cooling capacity according to EN 14511 at 35/35 °C, W | 800 |
| Speed-regulated | No |
| Product type | Air conditioner |
| Class of cooling output, W | 800 |
| Rated operating voltage V, ~, Hz | 230 V, 1 p, 50/60 Hz |
| Version of cooler | Outdoor |
| Mounting type | Wall-mounted |
| External dimensions of cooler (W x H x D), mm | 780,5 x 316 x 190 |
| Temperature regulating range, ˚C | +25…+40 |
| Operating temperature range, ˚C | -40…+65 |
| Material | Steel sheet |
| Degree of protection, internal circuit | IP55 |
| Degree of protection, external circuit | IP34 |
| Weight, kg | 28 |
| Refrigeration power DIN 3168 (L35/L35), W | 860 |
| Refrigeration power DIN 3168 (L35/L50), W | 690 |
| Rated power consumption (L35/L35), kW | 0.4 |
| Rated current, A | 2.9 |
| Protective device, A | 6 |
| Start-up current, A | 17 |
| Noise level, dB(A) | 67 |
| Coolant type | R134a |
| Russian Classification of Products by Economic Activities (OKPD 2) | 27.12.40.000 |
| Commodity Nomenclature of Foreign Economic Activity | 8415820000 |
