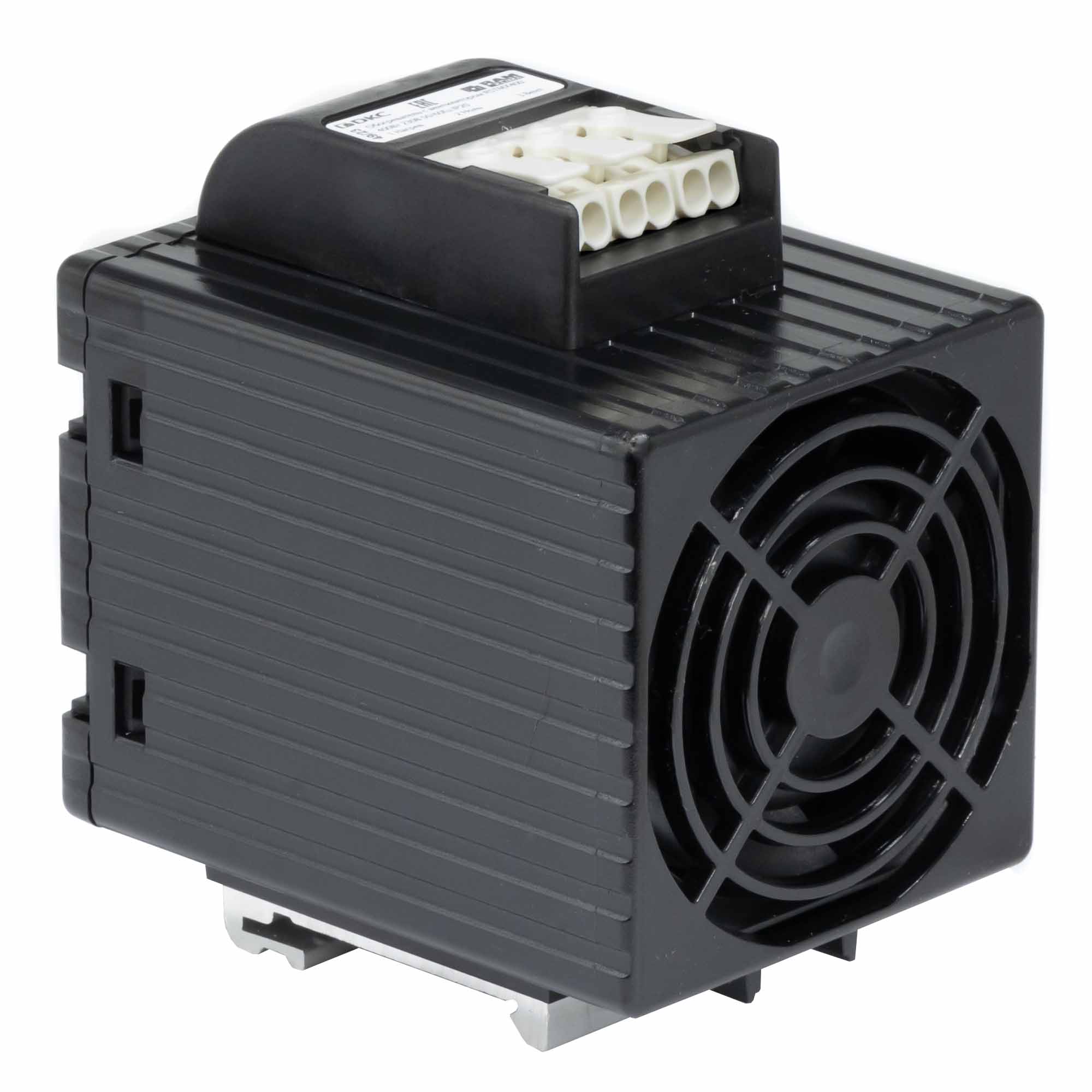

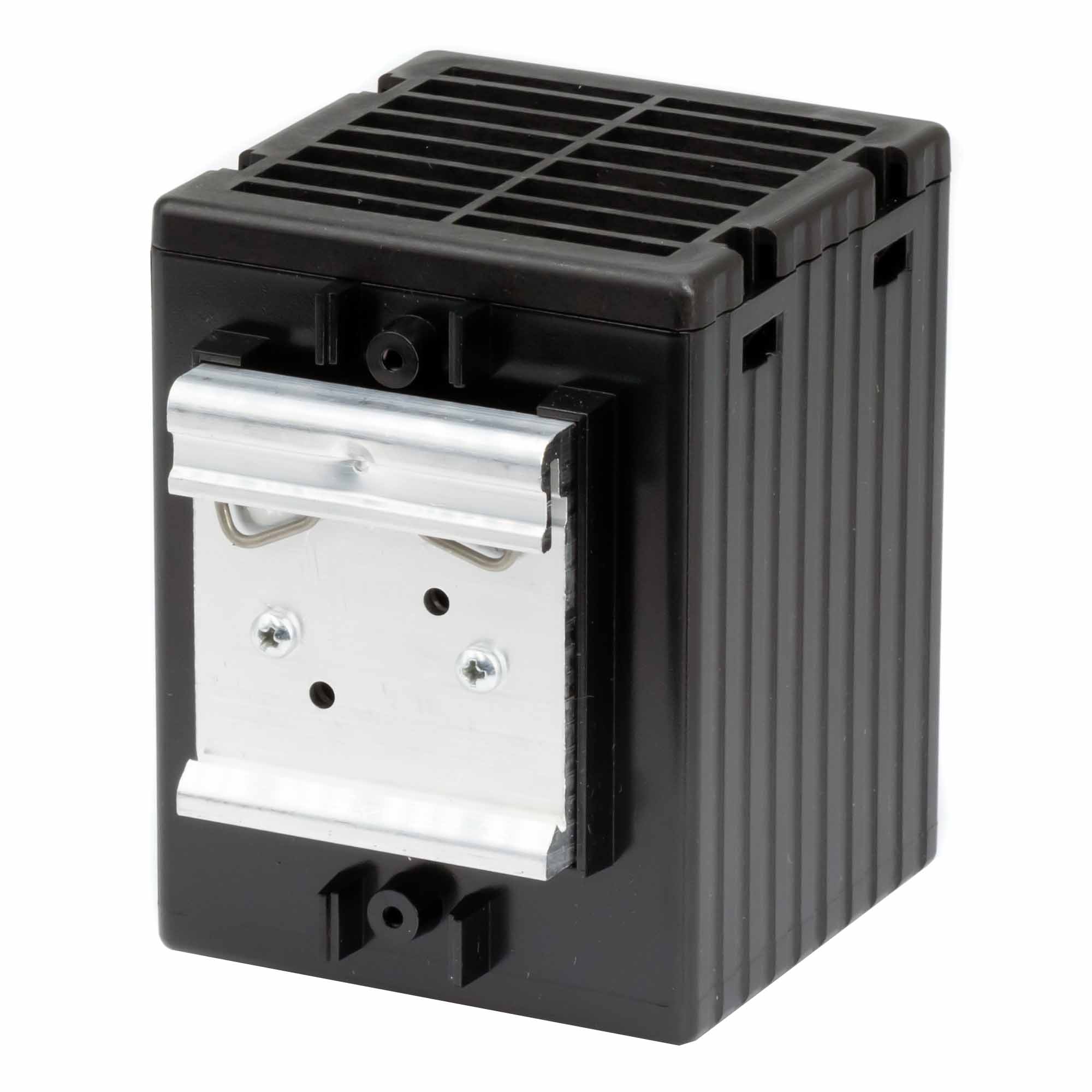

Heater in plastic case with blower 300 W, 230 V

Code: R5TMX300
Heater in plastic case with blower 300 W, 230 V
Heater in plastic case with blower 300 W, 230 V
Width, mm 66
Height, mm 88
Depth, mm 97
With room temperature controller No
With blower Yes
Degree of protection (IP) IP20
Rated power, W 300
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
Mounting method DIN-rail (DRA)
With digital indication No
With hygrostat No
Heating capacity, W 300
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
With blower Yes
With plastic protective case Yes
External dimensions of heater (W x H x D), mm 66 x 88 x 97
Operating temperature range, ˚C –40...+70
Storage temperature range, ˚C –40...+70
Heating element type PTC
Degree of protection IP20
Weight, kg 0.36
Product type Heater
Drawings
Seria Name Eplan DWG (dynamic blocks)
RAM klima - Climate Control System
The microclimate control system "RAM klima"
RAR
261.98 MB
RAM klima - Climate Control System
Heaters and thermostats (dynamic blocks)
RAR
3.57 MB
RAM klima - Climate Control System
Vetilyatsionnye grilles and fans (dynamic blocks)
RAR
1.76 MB
Certificates
Name Document
Declaration of Conformity for the heaters
PDF
1.49 MB
Declaration of Conformity for the heaters
PDF
471.20 kB
