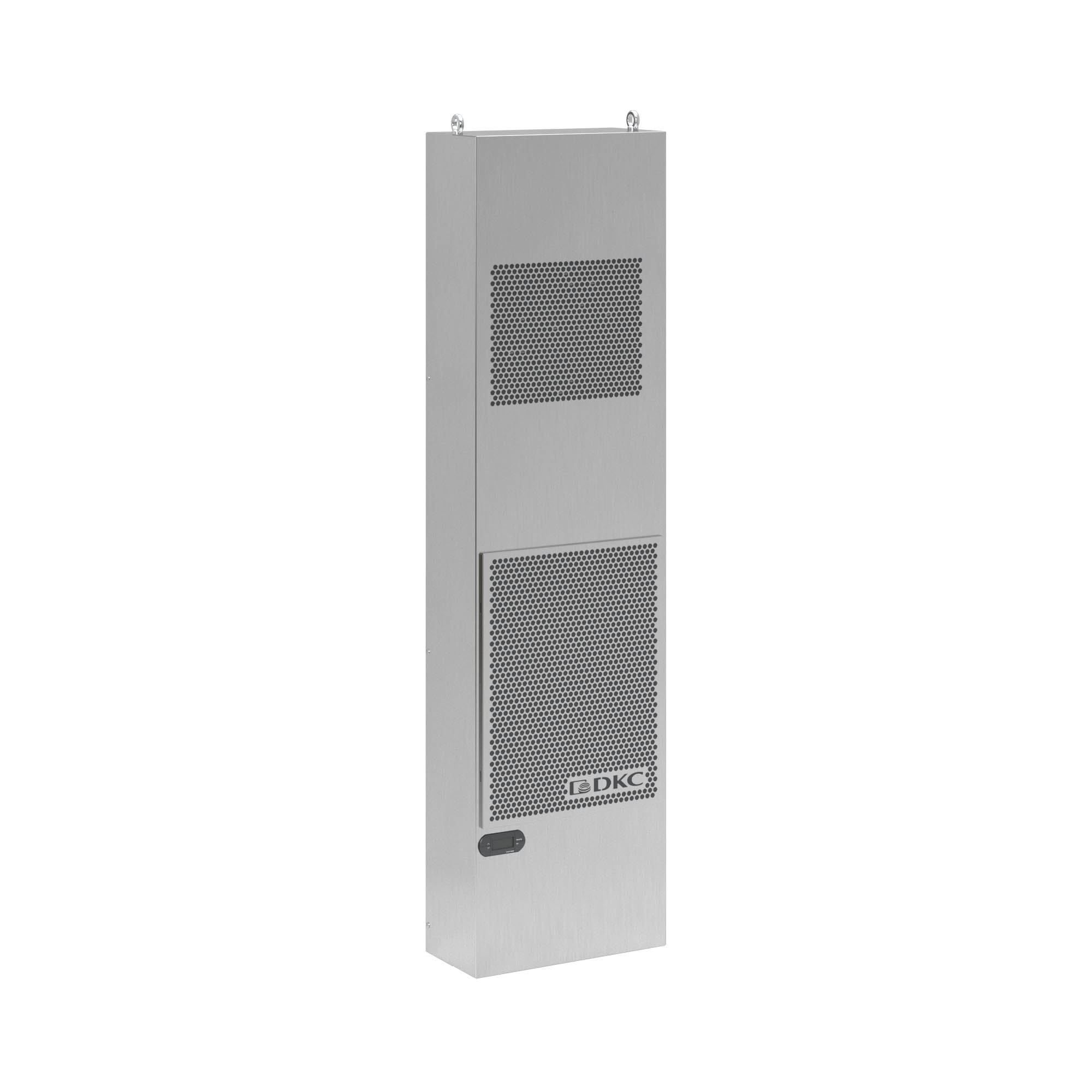

Wallmounting cooler Slim OUT stainless steel AISI304 3000W, 400V, 3ph, 400x1650x220mm

Code: R5KLMI430043SOT
Width, mm 400
Model Air/air
Height, mm 1650
Depth, mm 220
With temperature control Yes
Function master/slave No
With heater function No
Operating voltage at AC 50 Hz, V 400…460
Operating voltage at AC 60 Hz, V 400…460
Voltage type AC
With heating function No
Ambient temperature during operating 20…50
Total cooling capacity according to EN 14511 at 35/35 C°, W 3000
Speed-regulated Yes
Product type Air conditioner
Class of cooling output, W 3000
Rated operating voltage V, ~, Hz 400/460 V, 3 p, 50/60 Hz
Version of cooler Indoor
Mounting type Wall-mounted
External dimensions of cooler (W x H x D), mm 400 x 1650 x 220
Temperature regulating range, ˚C +30…+40
Operating temperature range, ˚C +20…+50
Material Stainless steel
Degree of protection, internal circuit IP54
Degree of protection, external circuit IP34
Weight, kg 68
Refrigeration power DIN 3168 (L35/L35), W 2800/3080
Refrigeration power DIN 3168 (L35/L50), W 2240/2350
Rated power consumption (L35/L35), kW 1,1/1,27
Rated current, A 2,6/2,9
Protective device, A 8
Start-up current, A 12
Noise level, dB(A) 71
Coolant type R134a
Delivery package Digital thermostat, air filter, condensate evaporator, lifting eyebolts, drilling templates
Comment SLIM OUT - fully extended
