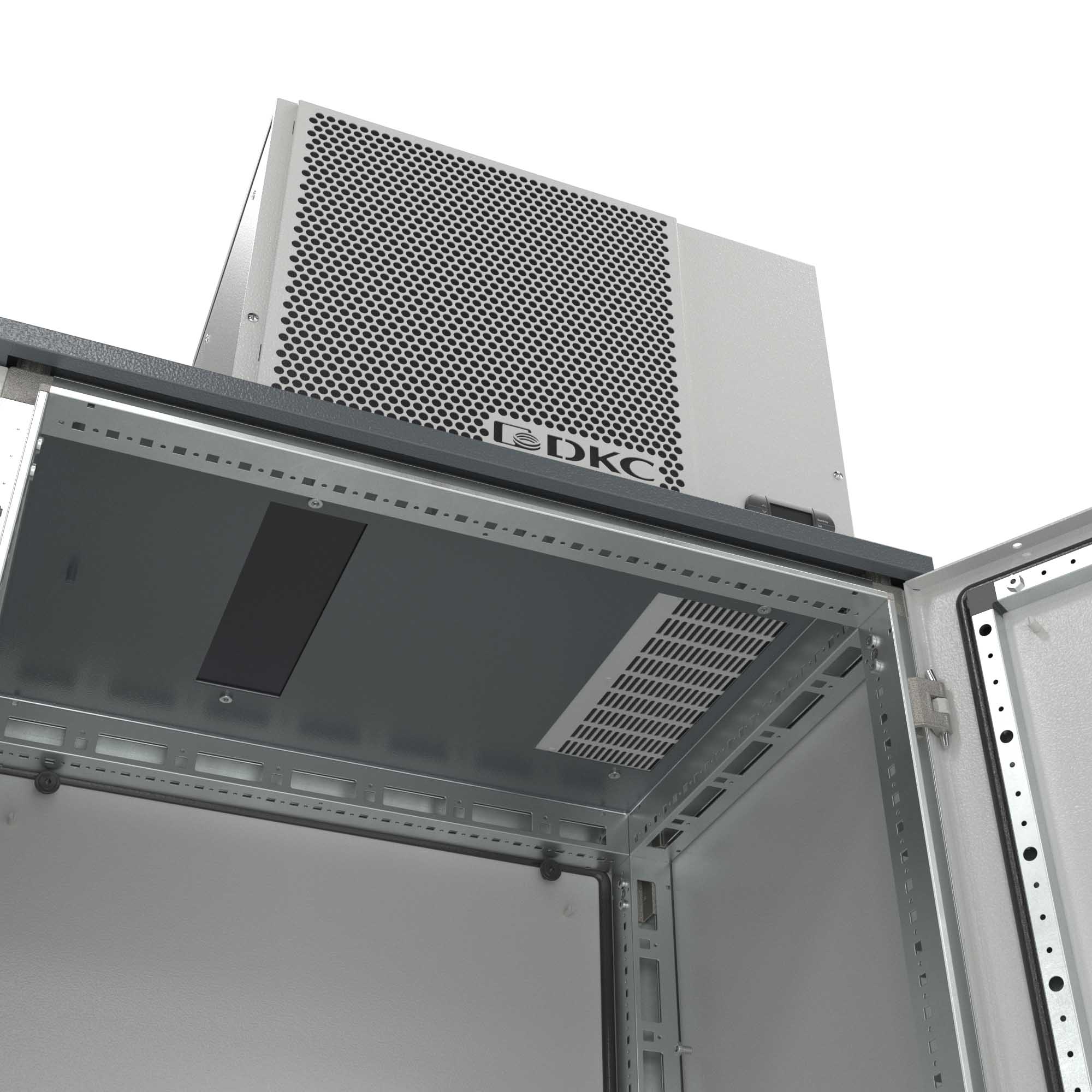

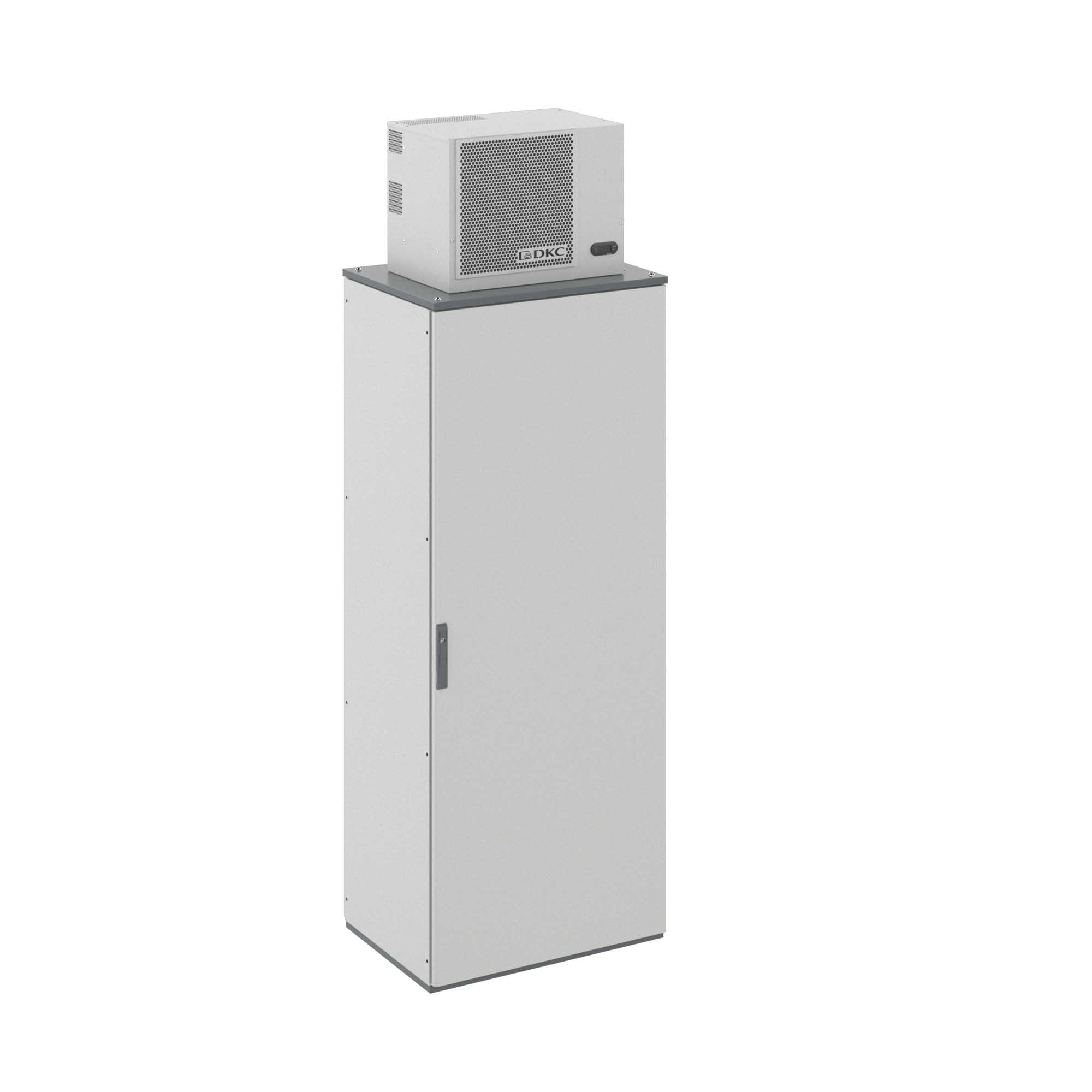

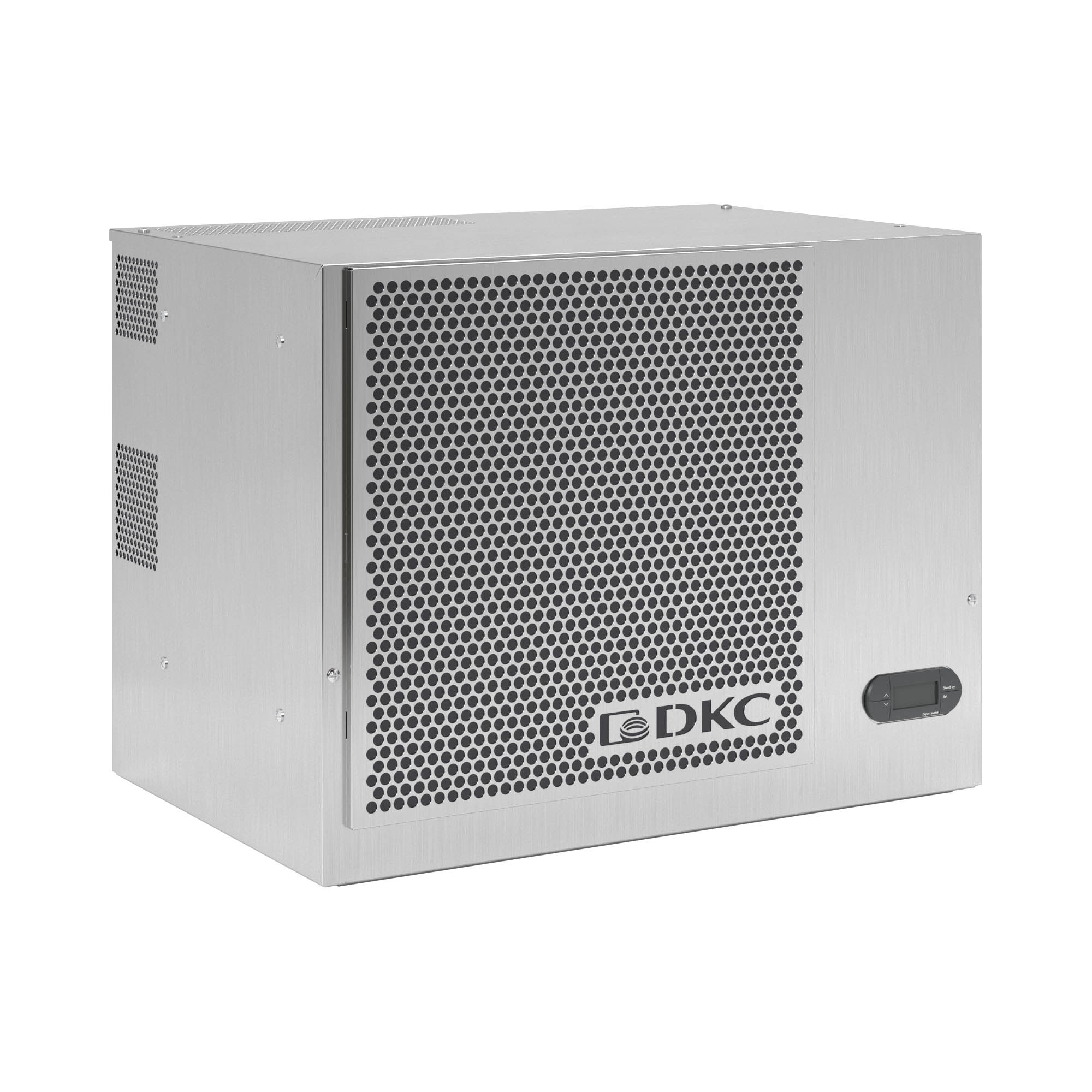

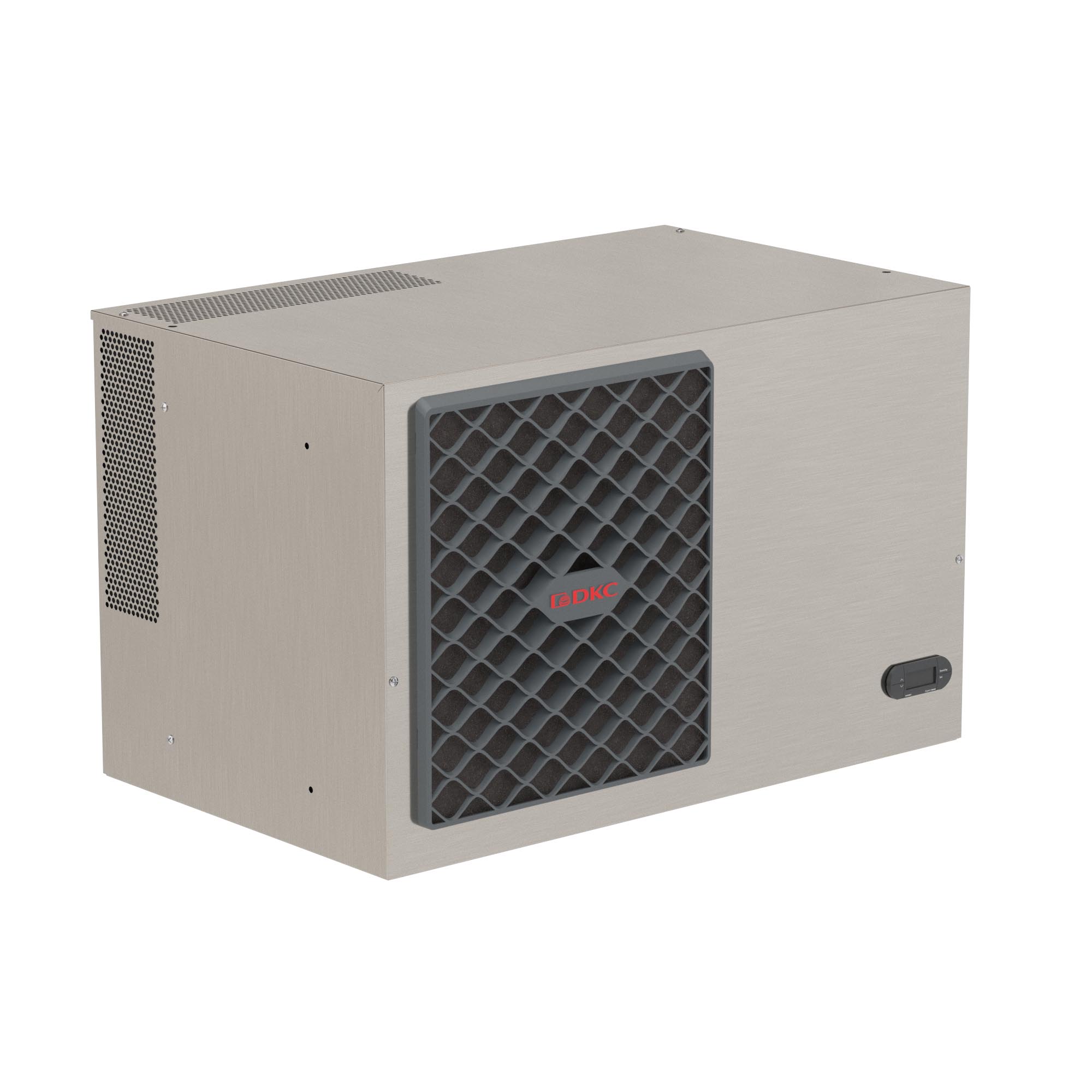

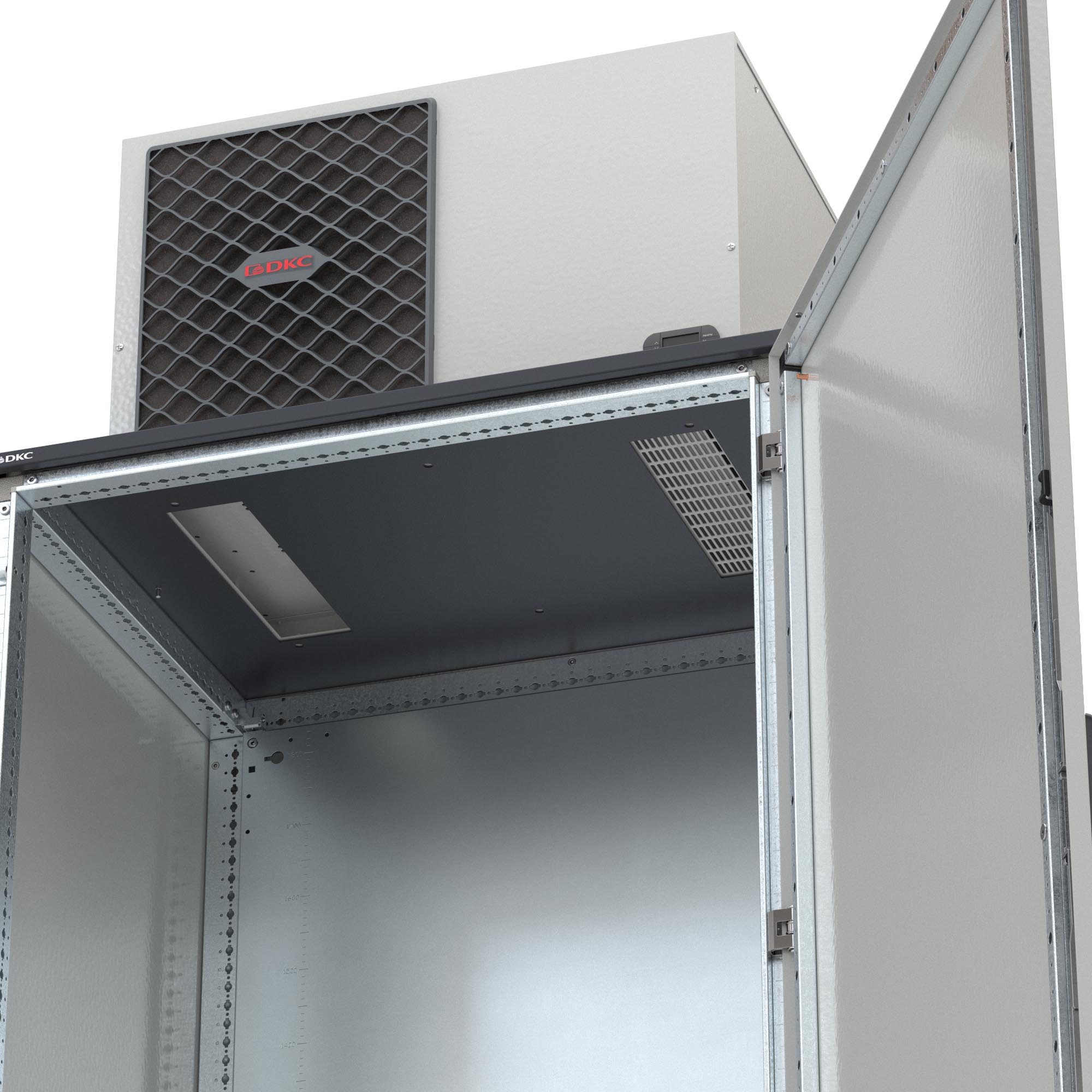

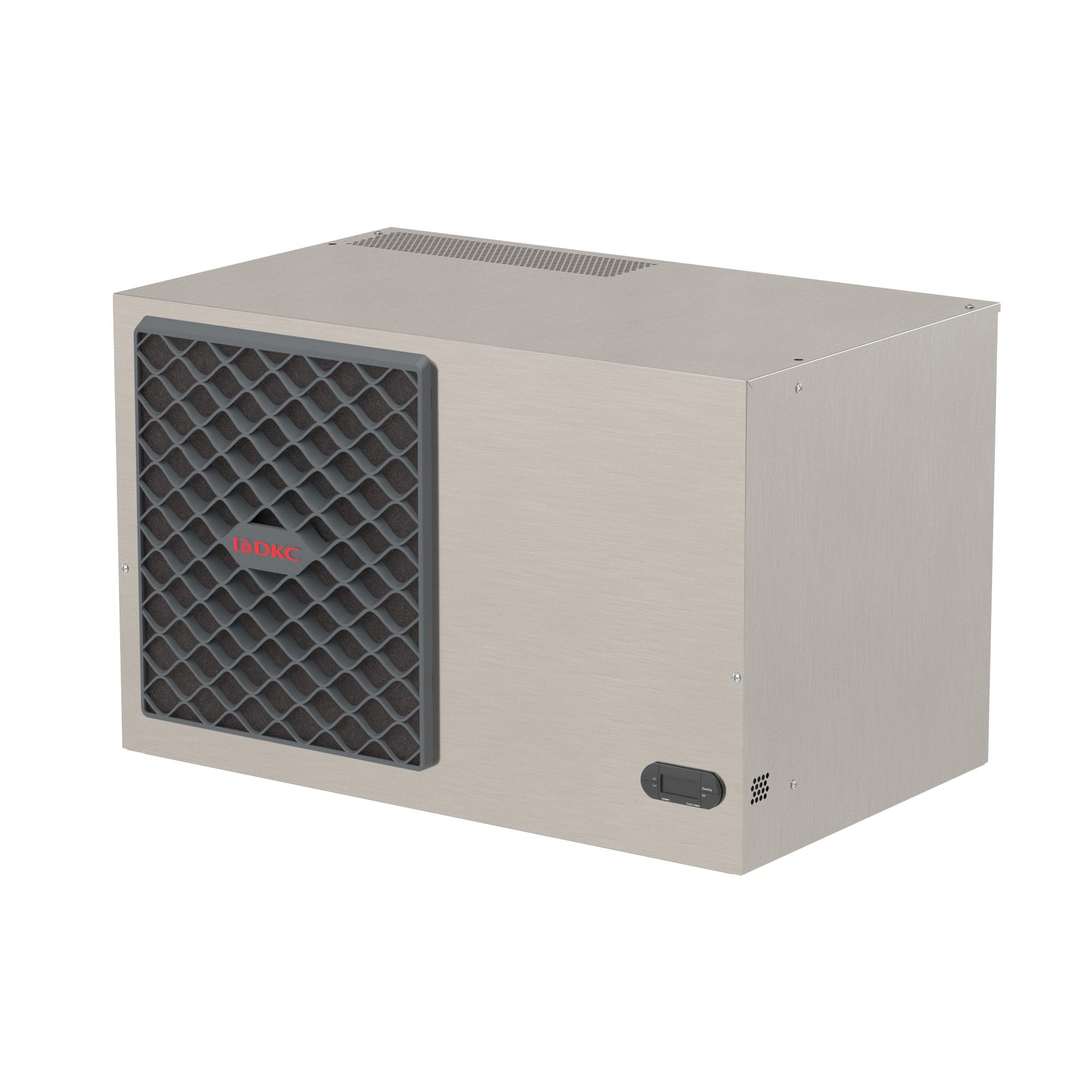

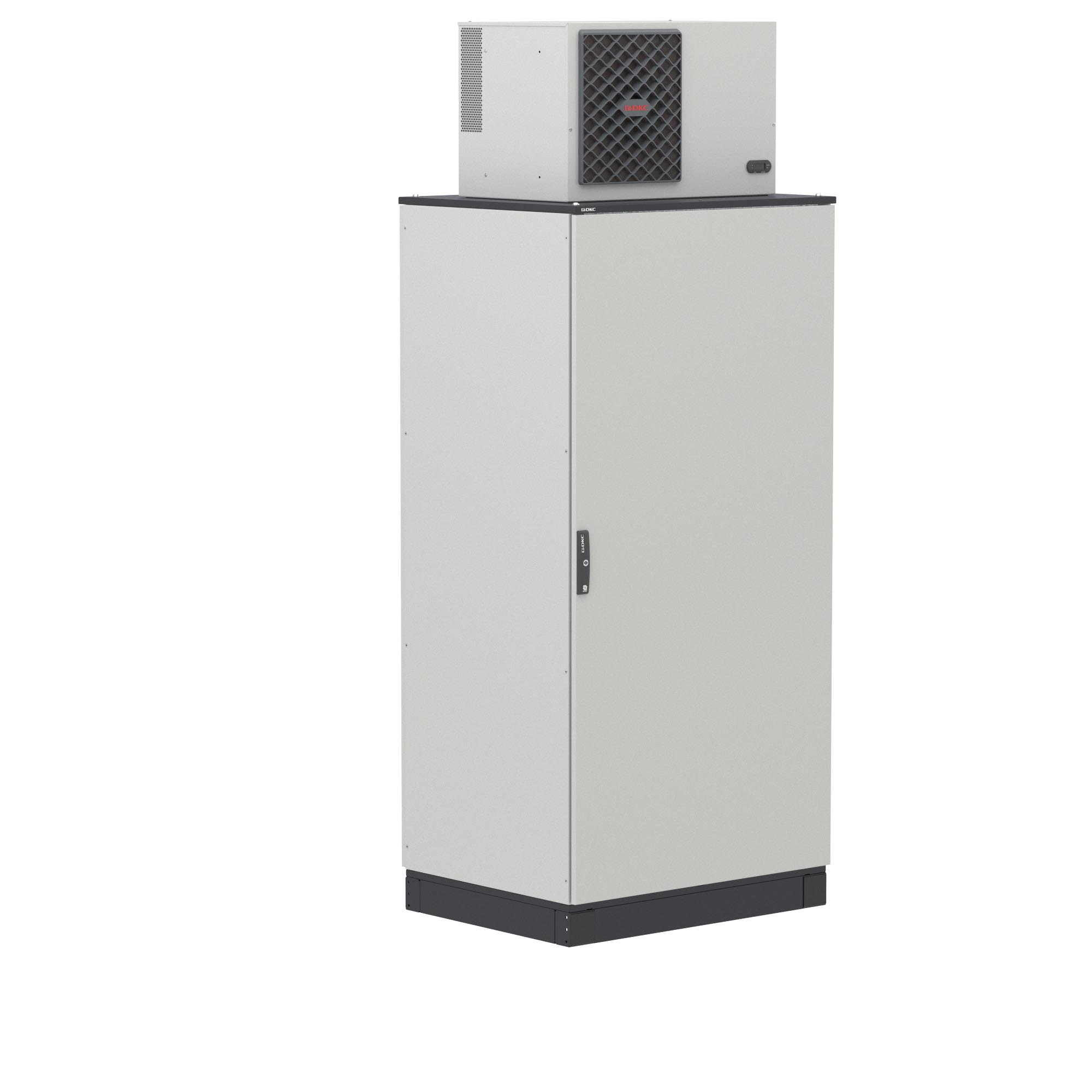

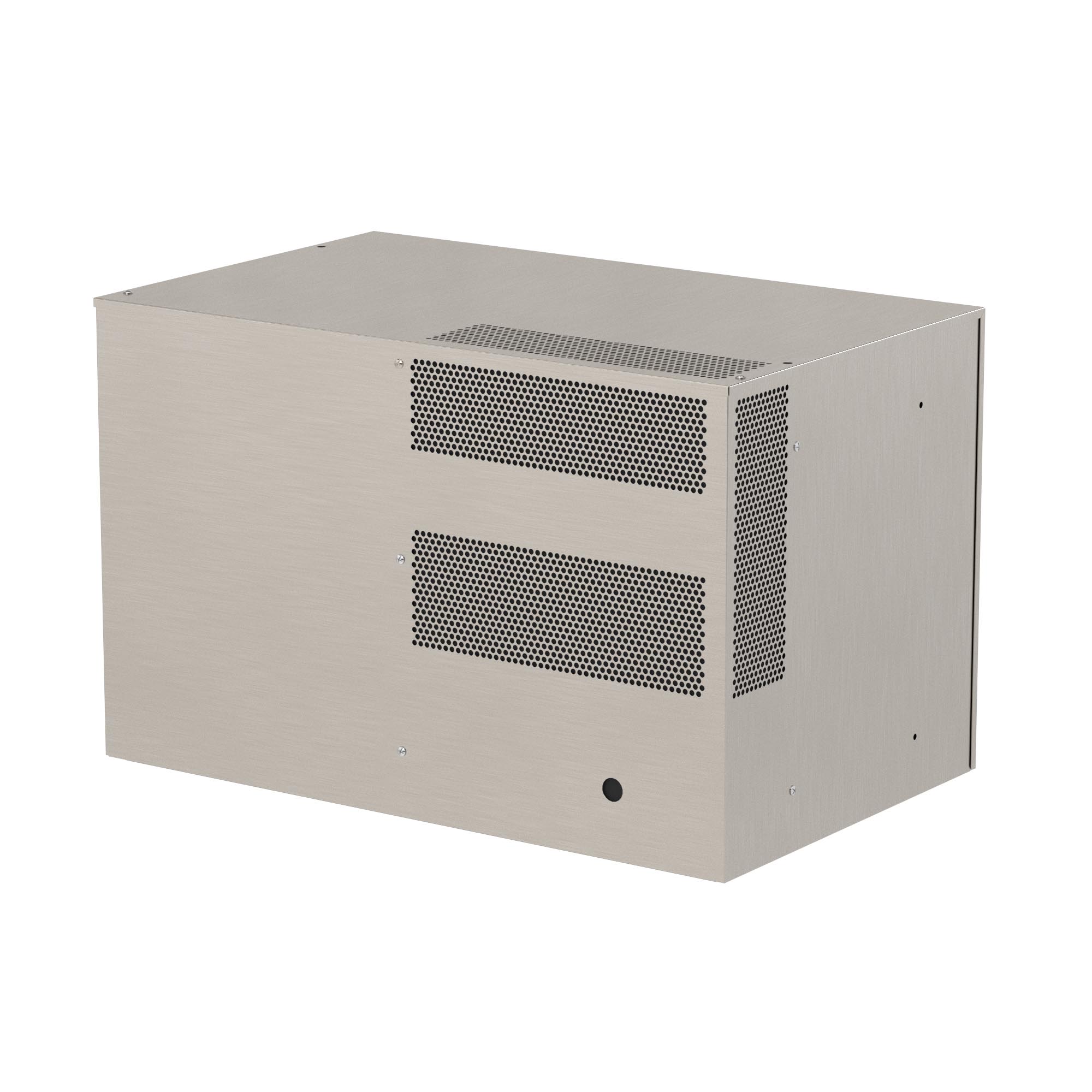

Roofmounting cooler stainless steel AISI304 3000W, 400V, 3ph, 505х800х508mm
Roofmounting cooler stainless steel AISI304 3000W, 400V, 3ph, 505х800х508mm
Code:
R5KLMI430043RT
To ask a question
Products card
Characteristics
Drawings
Certificates
ETIM
Characteristics
Width, mm
800
Model
Air/air
Height, mm
505
Depth, mm
508
With temperature control
Yes
Function master/slave
No
With heater function
No
Operating voltage at AC 50 Hz, V
400…460
Operating voltage at AC 60 Hz, V
400…460
Voltage type
AC
With heating function
No
Ambient temperature during operating
20…50
Total cooling capacity according to EN 14511 at 35/35 C°, W
3000
Speed-regulated
Yes
Product type
Air conditioner
Class of cooling output, W
3000
Rated operating voltage V, ~, Hz
400/460 V, 3 p, 50/60 Hz
Version of cooler
Indoor
Mounting type
Roof-mounted
External dimensions of cooler (W x H x D), mm
800 х 505 х 508
Temperature regulating range, ˚C
+30…+40
Operating temperature range, ˚C
+20…+50
Material
Stainless steel
Degree of protection, internal circuit
IP54
Degree of protection, external circuit
IP34
Weight, kg
72
Refrigeration power DIN 3168 (L35/L35), W
2800
Refrigeration power DIN 3168 (L35/L50), W
2240
Rated power consumption (L35/L35), kW
1.1
Rated current, A
2.6
Protective device, A
8
Start-up current, A
12
Noise level, dB(A)
71
Coolant type
R134a
Delivery package
Digital thermostat, air filter, condensate evaporator, lifting eyebolts, drilling templates
Comment
The external ventilation circuit has been created optimizing the refrigeration power (ambient), allowing a side by side installation of several coolers, keeping unchanged the coolers performance, avoiding the hot air retrieval
