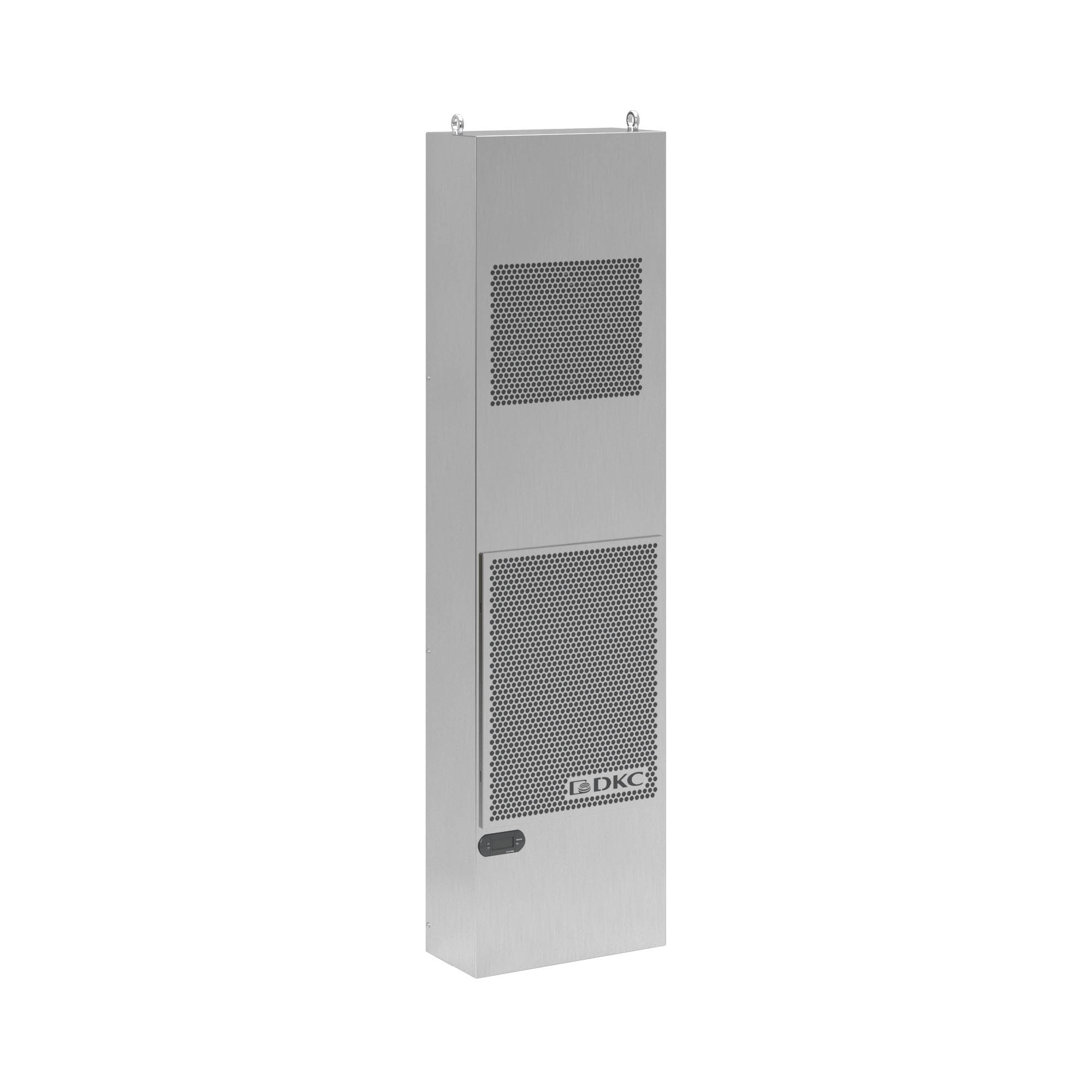

Wallmounting cooler Slim OUT stainless steel AISI304 2000W, 230V, 1ph, 400x1650x220mm

Code: R5KLMI420021SOT
  • To ask a question
Width, mm 400
Model Air/air
Height, mm 1650
Depth, mm 220
With temperature control Yes
Function master/slave No
With heater function No
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
With heating function No
Ambient temperature during operating 20…50
Total cooling capacity according to EN 14511 at 35/35 C°, W 2000
Speed-regulated Yes
Product type Air conditioner
Class of cooling output, W 2000
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
Version of cooler Indoor
Mounting type Wall-mounted
External dimensions of cooler (W x H x D), mm 400 x 1650 x 220
Temperature regulating range, ˚C +30…+40
Operating temperature range, ˚C +20…+50
Material Stainless steel
Degree of protection, internal circuit IP54
Degree of protection, external circuit IP34
Weight, kg 63
Refrigeration power DIN 3168 (L35/L35), W 1960/2150
Refrigeration power DIN 3168 (L35/L50), W 1570/1640
Rated power consumption (L35/L35), kW 0,93/1,07
Rated current, A 6/6,6
Protective device, A 12
Start-up current, A 26
Noise level, dB(A) 70
Coolant type R134a
Delivery package Digital thermostat, air filter, condensate evaporator, lifting eyebolts, drilling templates
