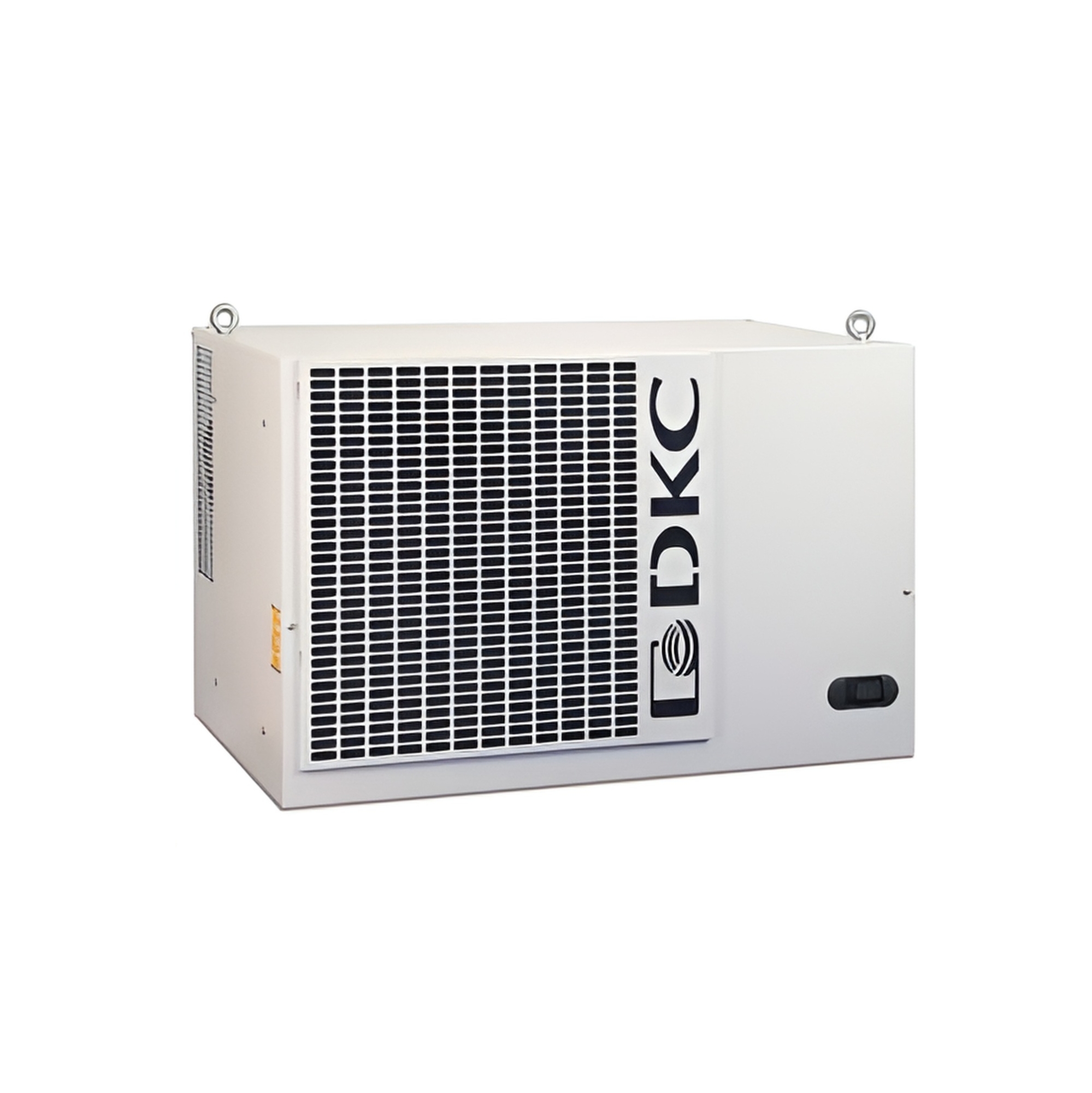

Roof-mounted conditioner 1000 W, 230 V, 1 ph, 310х600х408 mm

Code: R5KLM10021RT
Width, mm 600
Model Air/air
Height, mm 310
Depth, mm 408
With temperature control Yes
Function master/slave No
With heater function No
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
With heating function No
Ambient temperature during operating +20…+50
Total cooling capacity according to EN 14511 at 35/35 C°, W 1000
Speed-regulated Yes
Product type Air conditioner
Class of cooling output, W 1000
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
Version of cooler Indoor
Mounting type Roof-mounted
External dimensions of cooler (W x H x D), mm 600 х 310 х 408
Temperature regulating range, ˚C +30…+40
Operating temperature range, ˚C +20…+50
Material Steel sheet
Degree of protection, internal circuit IP54
Degree of protection, external circuit IP34
Weight, kg 43
Refrigeration power DIN 3168 (L35/L35), W 1020
Refrigeration power DIN 3168 (L35/L50), W 820
Rated power consumption (L35/L35), kW 0.49
Rated current, A 3.7
Protective device, A 8
Start-up current, A 20
Noise level, dB(A) 69
Coolant type R134a
Delivery package Digital thermostat, air filter, condensate evaporator, lifting eyebolts, drilling templates
Comment The external ventilation circuit has been created optimizing the refrigeration power (ambient), allowing a side by side installation of several coolers, keeping unchanged the coolers performance, avoiding the hot air retrieval
Drawings
Seria Name Eplan DWG STEP DWG (dynamic blocks)
