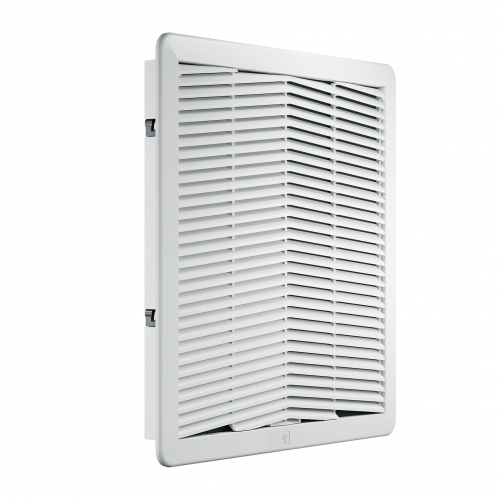

Ventilation grille with filter GCH 325x325 mm, IP54

Code: R5GCH20F
Ventilation grille with filter GCH 325x325 mm, IP54
Ventilation grille with filter GCH 325x325 mm, IP54
Mounting method Snap mounting
Width, mm 325
Height, mm 325
Degree of protection (IP) IP54
For maximum number of fans 1
With built-in filter Yes
Material Plastic
Type of surface Brushed/grinded
Product type Accessories for fans
Mounting type Wall-mounted
Size Size 20 325 x 325
EMC-version No
Thick-wall version Yes
External dimensions (W x H x D), mm 325 x 325 x 32,5
Maximum installation depth, mm 26.7
Required mounting cut-out (W x H), mm 290 x 290
Degree of protection IP54
Optionally degree of protection IP55
Material ABS plastic, UL94V0
Operating temperature range, ˚C -40…+70
Storage temperature range, ˚C -40…+70
Filter class G3
Color RAL 7035
Weight, kg 0.74
Delivery package Ventilation grille, air filter mat, drilling templates
Comment Tool-free mounting for wall thicknesses up to 16 mm
