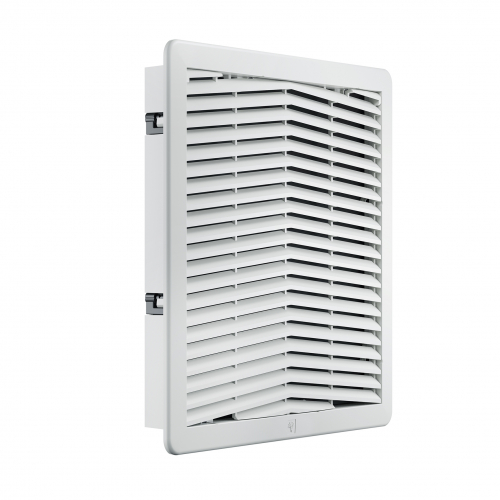

Ventilation grille with filter GCH 250x250 mm, IP54

Code: R5GCH15F
Mounting method Snap mounting
Width, mm 250
Height, mm 250
Degree of protection (IP) IP54
For maximum number of fans 1
With built-in filter Yes
Material Plastic
Type of surface Brushed/grinded
Product type Accessories for fans
Mounting type Wall-mounted
Size Size 15 252 x 252 / 250 x 250
EMC-version No
Thick-wall version Yes
External dimensions (W x H x D), mm 250 x 250 x 32
Maximum installation depth, mm 27
Required mounting cut-out (W x H), mm 223 x 223
Degree of protection IP54
Optionally degree of protection IP55
Material ABS plastic, UL94V0
Operating temperature range, ˚C -40…+70
Storage temperature range, ˚C -40…+70
Filter class G3
Color RAL 7035
Weight, kg 0.49
Delivery package Ventilation grille, air filter mat, drilling templates
Comment Tool-free mounting for wall thicknesses up to 16 mm
