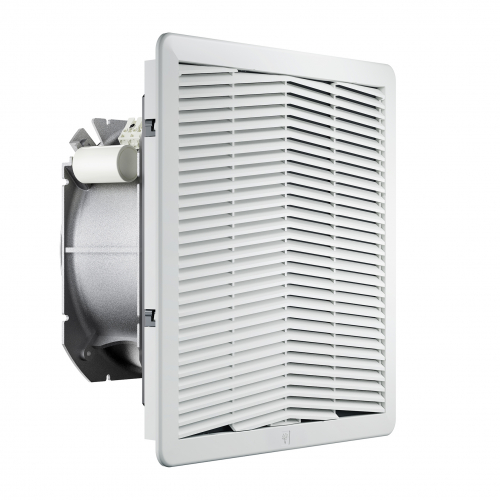

Fan with filter CHF 475/535 m3/h, 230 V, 325x325 mm, IP54

Code: R5CHF20KU230BE
Mounting method Snap mounting
Width, mm 325
Height, mm 325
Number of fans 1
EMC-version No
Degree of protection (IP) IP54
With filter Yes
Rated power, W 76
Roof ventilator No
Volume flow, freeblowing, m³/h 475
Operating voltage at AC 50 Hz, V 230
Operating voltage at AC 60 Hz, V 230
Voltage type AC
RAL-number 7035
With protective cover Yes
Noise emission, dB(A) 60
Depth, mm 158.5
Suitable for 19 inch rack mounting No
Built as slide-in ventilator No
Air circulater No
Wall build in Yes
Colour Grey
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 230 V, 1 p, 50/60 Hz
CF146426 475
Size Size 20 325 x 325
EMC-version No
Thick-wall version Yes
Code of ventilation grille R5GCH20F
External dimensions (W x H x D), mm 325 x 325 x 158,5‬
Maximum installation depth, mm 152.7
Required mounting cut-out (W x H), mm 290 x 290
Degree of protection IP54
Optionally degree of protection IP55
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+50
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 60
Rated current, A 0.33
Rated power consumption, W 76
Maximum static pressure, Pa 140
Service life (MTBF), h 45000
Filter class G3
Color RAL 7035
Weight, kg 3.4
Delivery package Fan, air filter mat, drilling templates
Comment Tool-free mounting for wall thicknesses up to 16 mm
