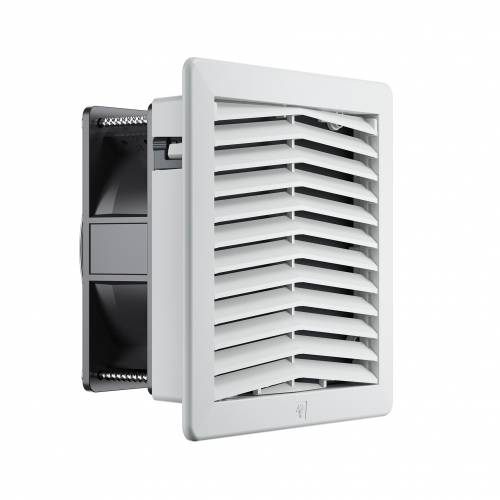

Fan with filter CHF 46 m3/h, 24 V, 150x150 mm, IP54

Code: R5CHF1224B
Mounting method Snap mounting
Width, mm 150
Height, mm 150
Number of fans 1
EMC-version No
Degree of protection (IP) IP54
With filter Yes
Rated power, W 7
Roof ventilator No
Volume flow, freeblowing, m³/h 46
Voltage type DC
RAL-number 7035
With protective cover Yes
Noise emission, dB(A) 42.5
Depth, mm 74.8
Suitable for 19 inch rack mounting No
Built as slide-in ventilator No
Air circulater No
Wall build in Yes
Operating voltage at DC, V 24
Colour Grey
Product type Fan
Mounting type Wall-mounted
Rated operating voltage V, ~, Hz 24 V, DC
CF146426 46
Size Size 12 150 x 150
EMC-version No
Thick-wall version Yes
Code of ventilation grille R5GCH12F
External dimensions (W x H x D), mm 150 х 150 х 74,8‬
Maximum installation depth, mm 70.3
Required mounting cut-out (W x H), mm 125 x 125
Degree of protection IP54
Optionally degree of protection IP55
Material ABS plastic, PC, UL94V0
Operating temperature range, ˚C -10…+50
Storage temperature range, ˚C -40…+70
Noise level, dB(A) 42.5
Rated current, A 0.3
Rated power consumption, W 7
Maximum static pressure, Pa 54
Service life (MTBF), h 45000
Filter class G3
Color RAL 7035
Weight, kg 0.5
Delivery package Fan, air filter mat, drilling templates
Comment Tool-free mounting for wall thicknesses up to 16 mm
