Width, mm 600
Height, mm 80
Surface protection Galvanic/electrolytic zinc plated
Material quality Other
Length, mm 2000
Material Steel
Wire cross-section, mm 4
Integrated partition None
Profile shape U-shape
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
Colour Natural colour
Product type Straight elements
Length 2000 mm
Width 600 mm
Height 80 mm
Material Electrolytic galvanized steel

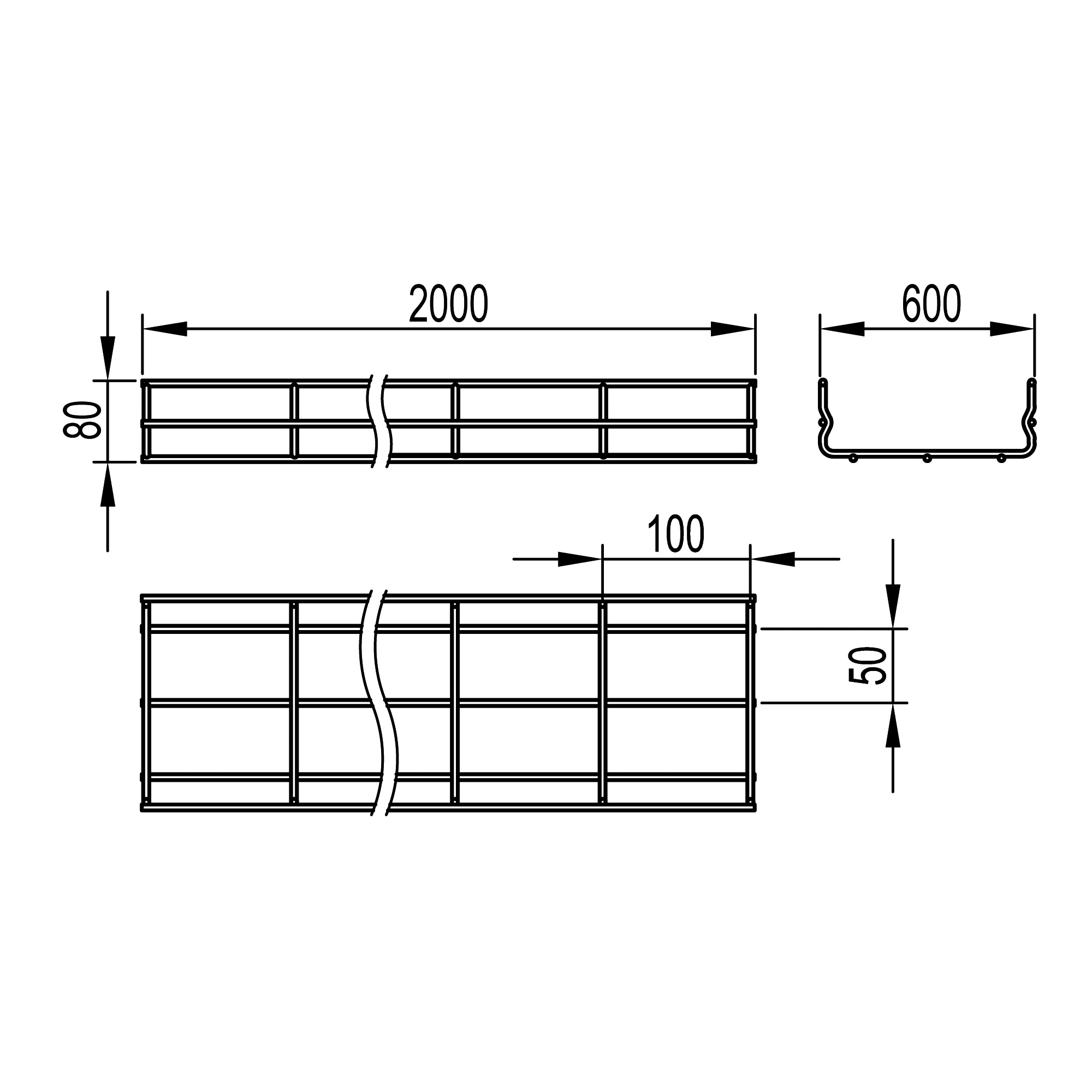

Drawings
Seria Name Autodesk Revit Intergraph DWG (dynamic blocks)
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Certificates
Name Document
