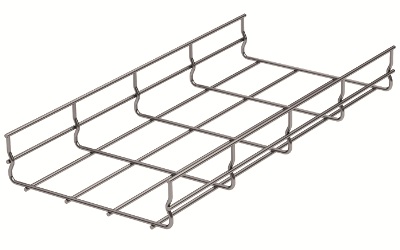

Mesh tray 80х400 L2000

Code: FC8040L2

Mesh tray 80х400 L2000

Code: FC8040L2
Width, mm 400
Height, mm 80
Surface protection Galvanic/electrolytic zinc plated
Material quality Other
Length, mm 2000
Material Steel
Wire diameter, mm 4
Integrated partition None
Profile shape U-shape
Stainless steel, pickled Нет
Wide span model Нет
Suitable for circuit integrity Нет
Colour Natural colour
Product type Straight elements
Length 2000 mm
Width 400 mm
Height 80 mm
Material Electrolytic galvanized steel
Type Metal wire mesh trays - "F5 Combitech"
Analogs

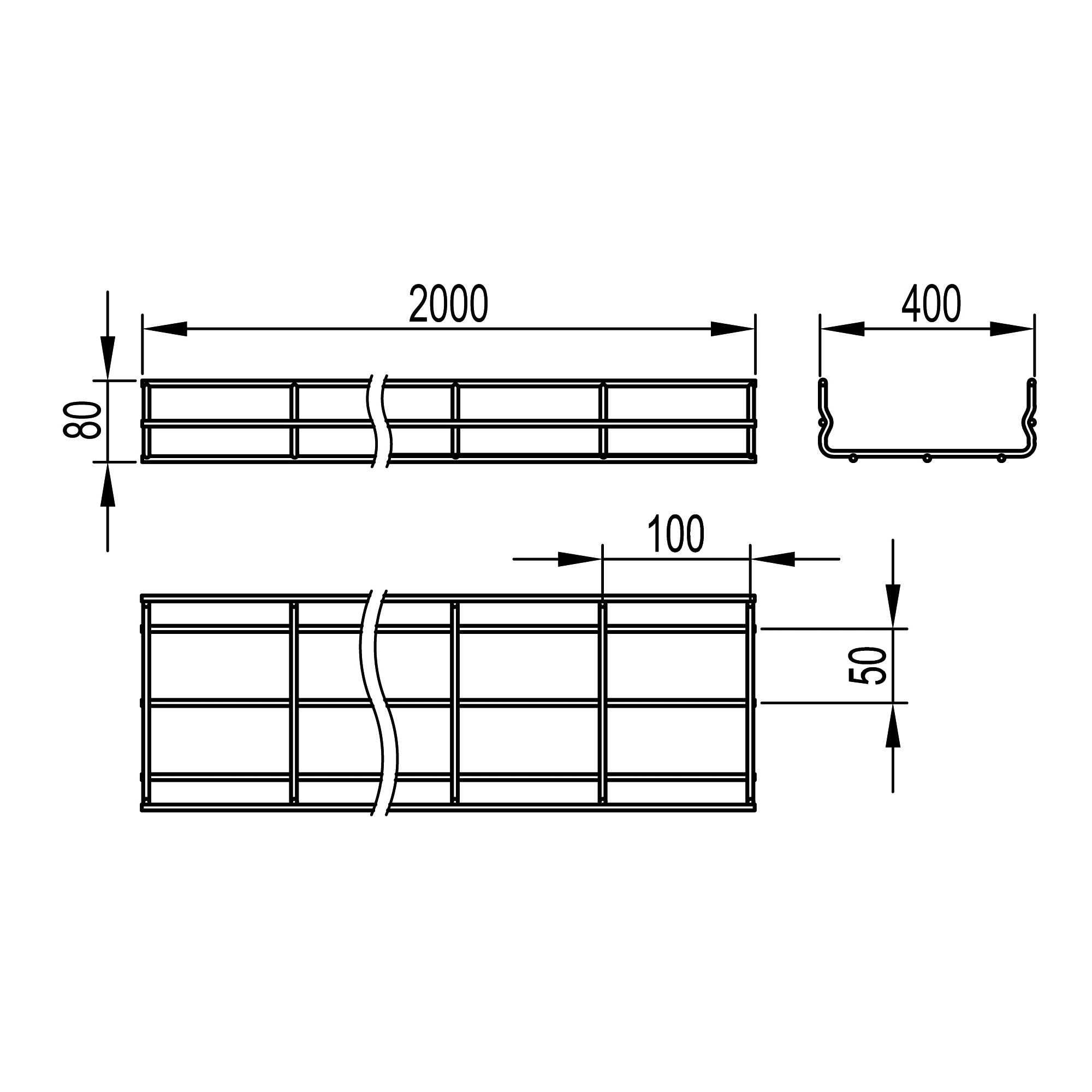

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
