Mesh tray 30х600 L2000

Code: FC3060L2

Mesh tray 30х600 L2000

Code: FC3060L2
Width, mm 600
Height, mm 30
Surface protection Galvanic/electrolytic zinc plated
Material quality Other
Length, mm 2000
Material Steel
Wire diameter, mm 4
Integrated partition None
Profile shape U-shape
Stainless steel, pickled Нет
Wide span model Нет
Suitable for circuit integrity Нет
Colour Natural colour
Product type Wire mesh cable tray
Type Metal wire mesh trays - "F5 Combitech"
Height 30 mm
Length 2000 mm
Material Pre-galvanized
Width 600 mm
Analogs

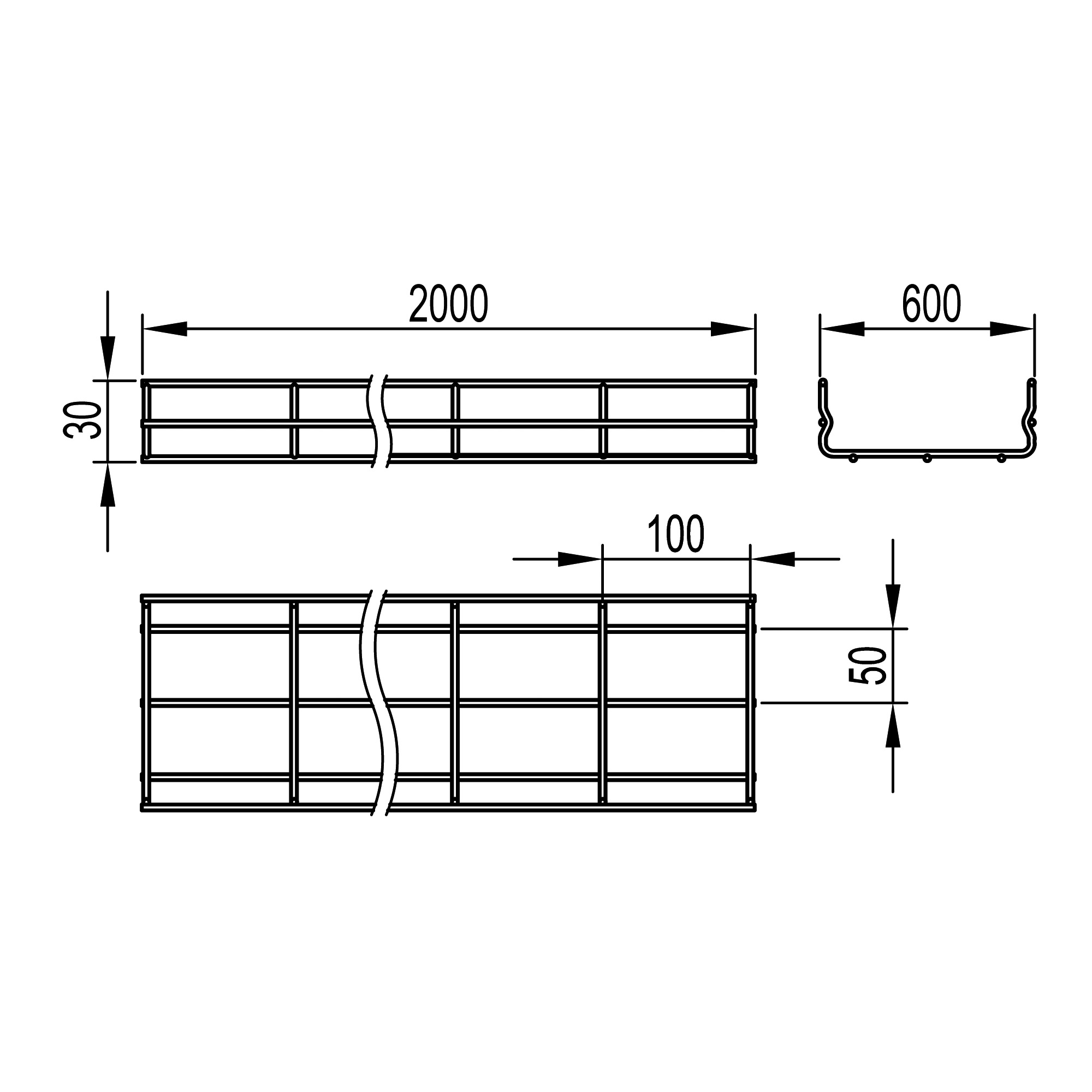

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Certificates
Name Document
