Width, mm 300
Height, mm 100
Surface protection Galvanic/electrolytic zinc plated
Material quality Other
Length, mm 2000
Material Steel
Wire cross-section, mm 4
Integrated partition None
Profile shape U-shape
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
Colour Natural colour
Product type Straight elements
Length 2000 mm
Width 300 mm
Height 100 mm
Material Electrolytic galvanized steel

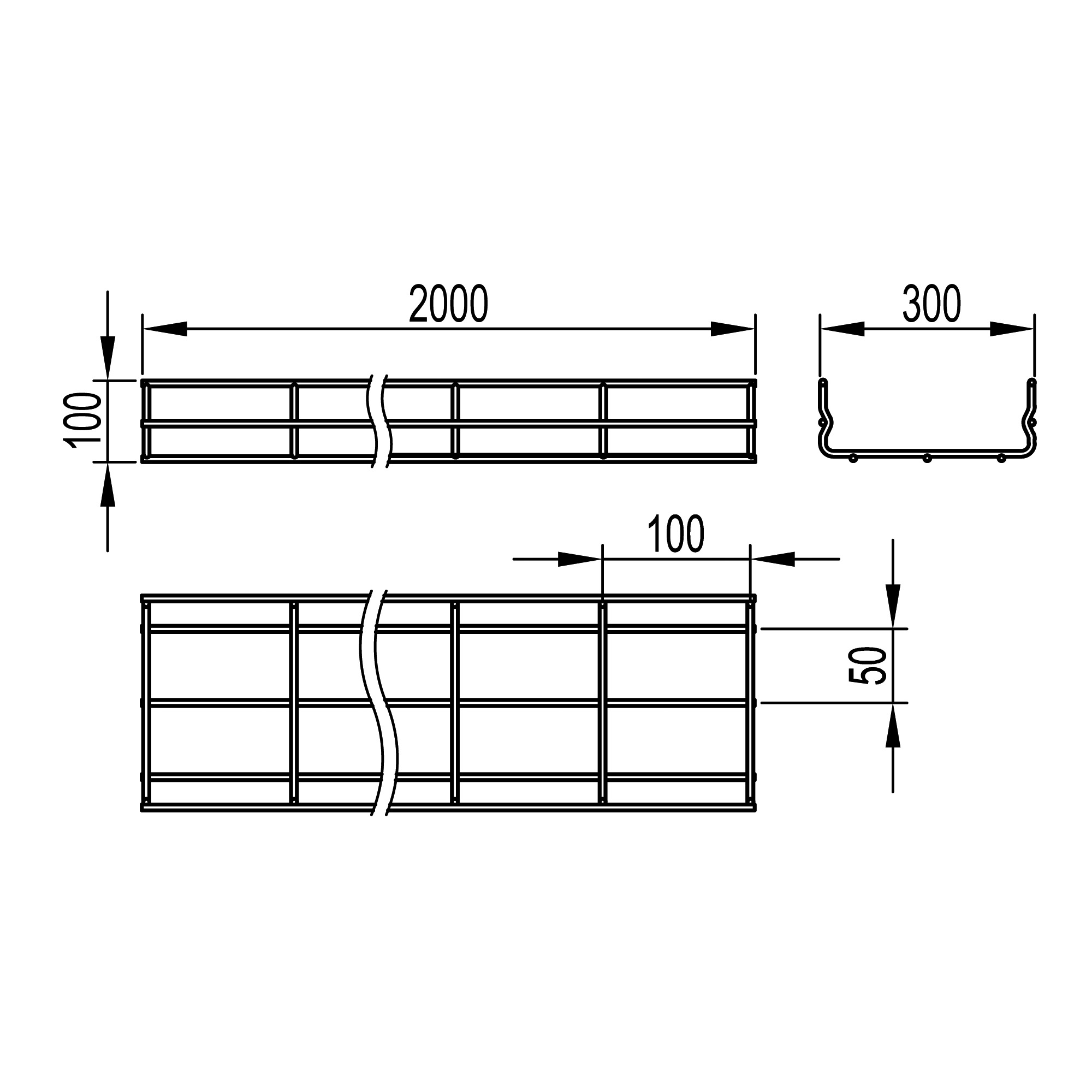

Drawings
Seria Name Autodesk Revit Intergraph DWG (dynamic blocks)
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Metal wire mesh trays - "F5 Combitech"
Certificates
Name Document
Completed projects
OPFC Sakhalin-2
Year: 2018 - 2020
The OPFC will be a part of one of the biggest oil and gas projects – Sakhalin-2, which is aim to be the premiere energy source for Asia-Pacific
Omsky Oil Refinery
City: Omsk Year: 2019 - 2020
One of Russia’s most modern refineries — and the country’s leader by refining volumes, Gazprom Neft’s Omsk Refinery is one of the largest and most important oil refineries in the world
ZAPSIBNEFTEKHIM
City: Tobol'sk Year: 2018 - 2019
ZAPSIBNEFTEKHIM is one of the largest petrochemical complexes in Russia.  The project has doubled Russia’s polymer production capacity, putting the nation among the Top 10 global producers.
