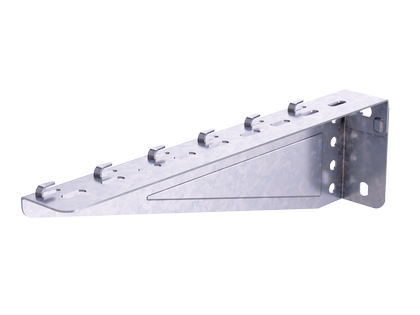

Light bracket for Mesh tray , b. 150 mm
Code: FBL3015
Light bracket for Mesh tray , b. 150 mm
Code: FBL3015
Colour | Light grey |
Width, mm | 44 |
Model | Wall- and profile console |
Height, mm | 70 |
Surface protection | Galvanic/electrolytic zinc plated |
Length, mm | 187 |
Material | Steel |
Stainless steel, pickled | Yes |
Suitable for circuit integrity | Yes |
Material quality | Steel galvanised |
Product type | Brackets |
For trays width (max.) | 150 mm |
Material | Electrolytic galvanized steel |

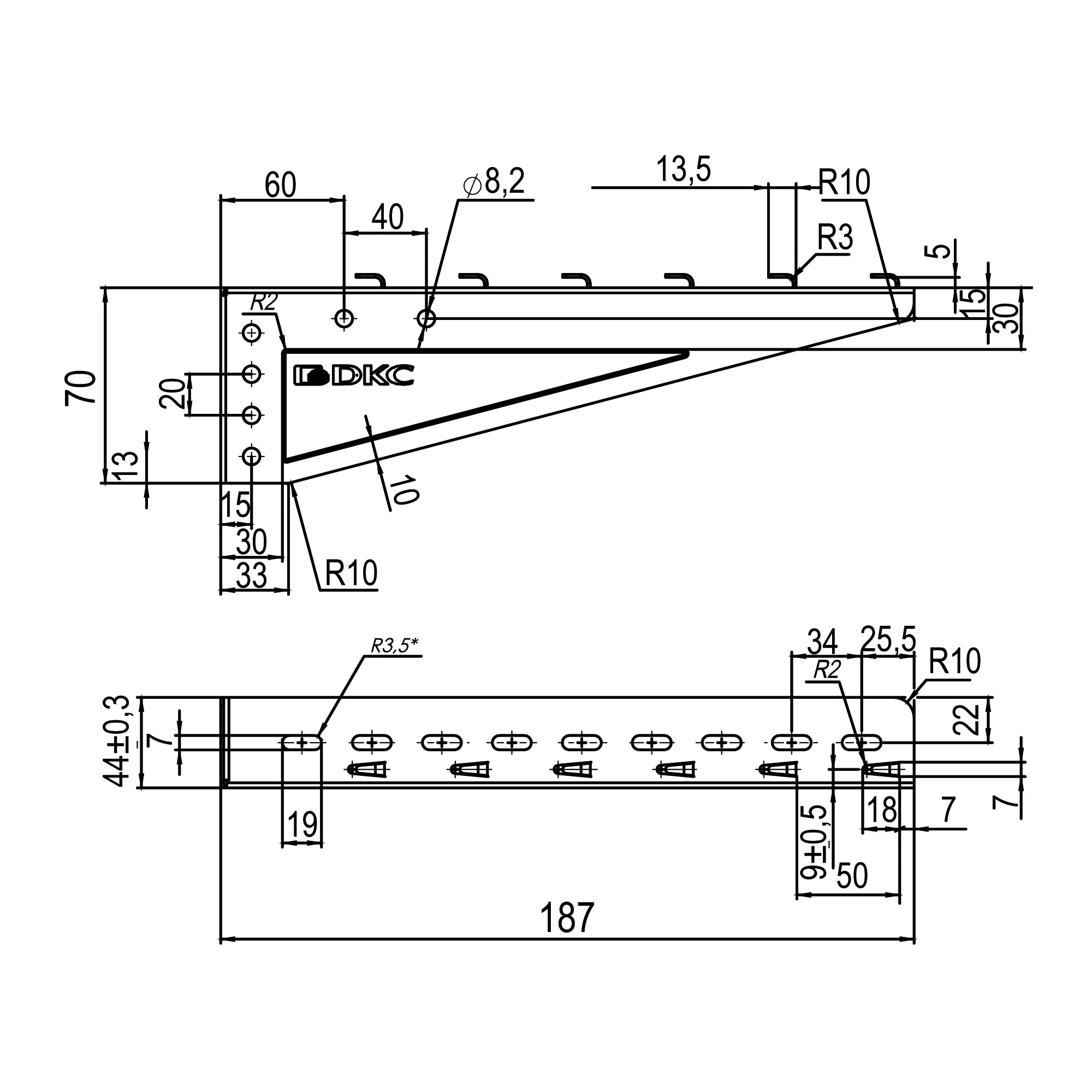

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit |
---|---|---|---|---|
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
||
Metal wire mesh trays - "F5 Combitech"
|
|
|
Certificates
Name | Document |
---|---|
