Ladder tray 80х200, L 3000

Code: LL8020

Ladder tray 80х200, L 3000

Code: LL8020
Colour Light grey
Width, mm 200
Height, mm 80
Surface protection Sendzimir galvanized
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Useful cross section, mm² 12400
Stainless steel, pickled Yes
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Product type Straight elements
Height 80 mm
Width 200 mm
Material Pre-galvanized steel
Side rail thickness 1.2 mm
Type Metal ladder trays - "L5 Combitech"
Length 3000 mm
Accessories
Analogs

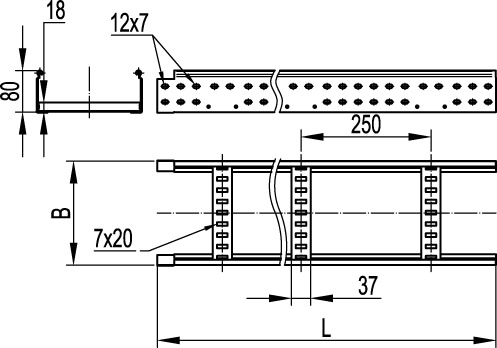

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
