Internal vertical angle 90° 100х600, R300, included with fasteners (joint plates GTO, screws, nuts)

Code: LH1360K
Internal vertical angle 90° 100х600, R300, included with fasteners (joint plates GTO, screws, nuts)
Internal vertical angle 90° 100х600, R300, included with fasteners (joint plates GTO, screws, nuts)
  • To ask a question
Colour Light grey
Deflection (angle) 90°
Material Steel
Inner radius, mm 300
Cable tray width, mm 600
Cable tray height, mm 100
Change of direction Vertically rising
Model Included connector
Surface protection Sendzimir galvanized
Type of accessories 90º vertical inner bend
Product type System accessories
Height 100 mm
Width 600 mm
Material Pre-galvanized steel

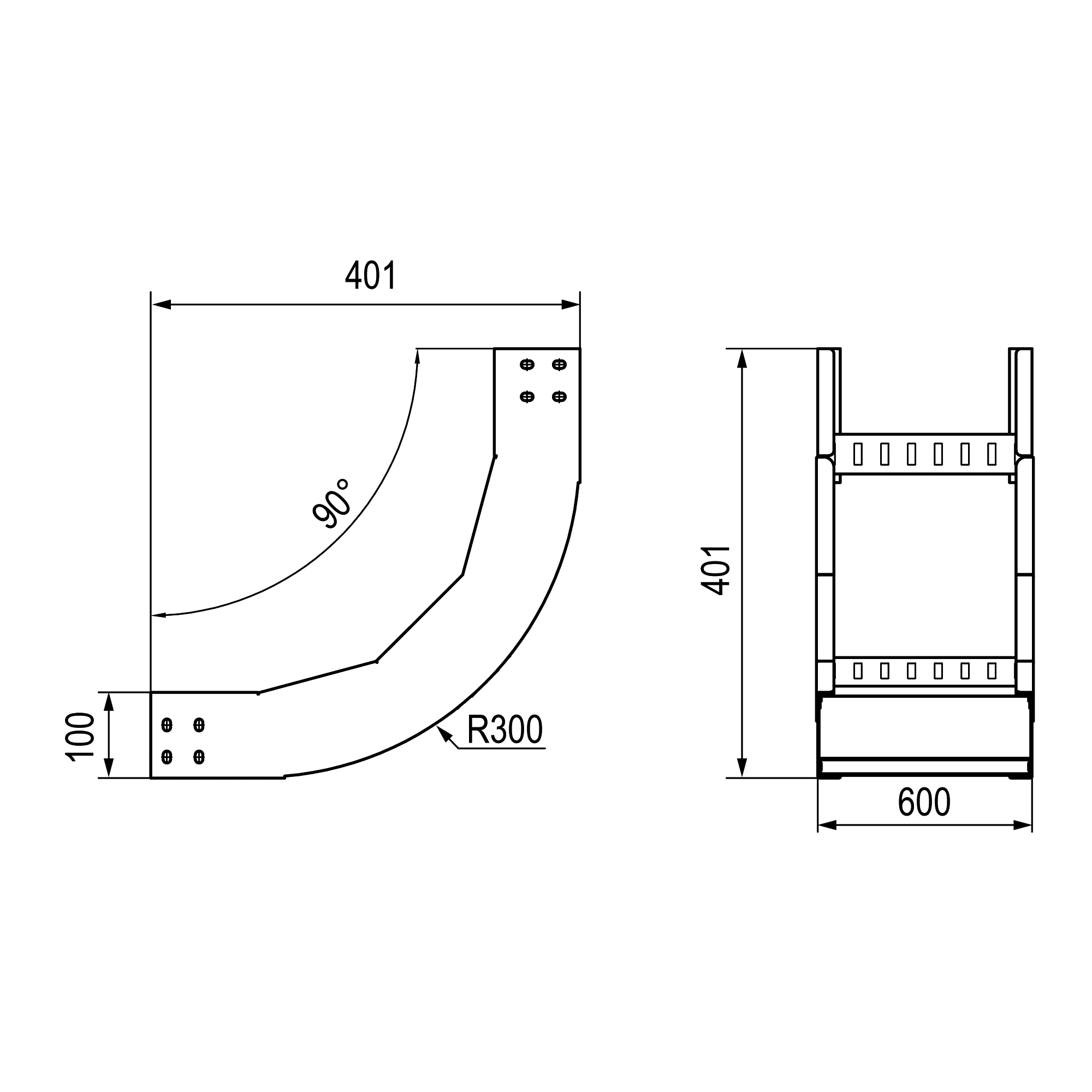

Drawings
Seria Name Autodesk Revit STEP SAT DWG (dynamic blocks) Intergraph AVEVA
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
11.67 MB
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
19.32 MB
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
17.38 MB
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
16.42 MB
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
RAR
5.28 MB
Metal ladder trays - "L5 Combitech"
System ladder trays "L5 Combitech"
ZIP
726.23 kB
