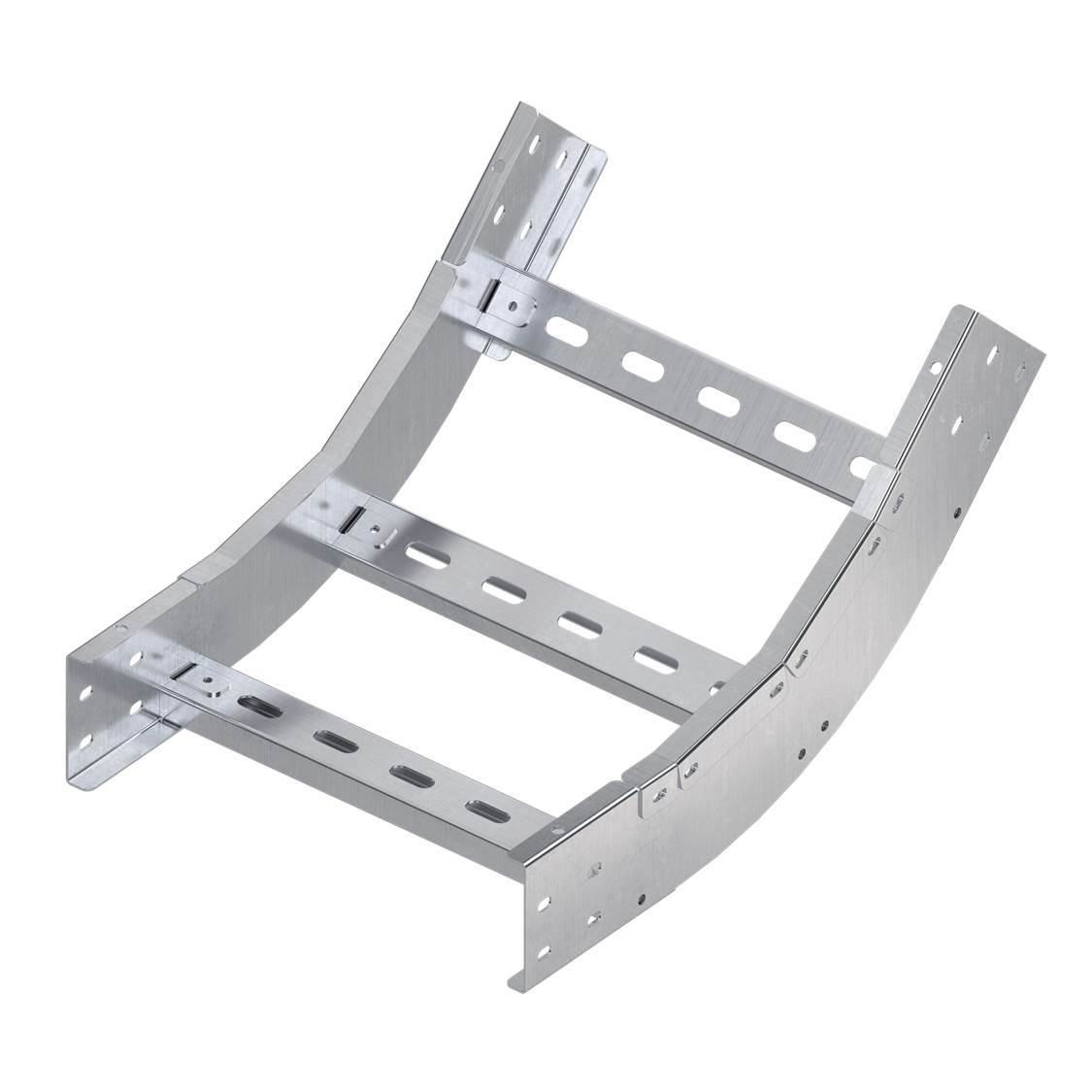

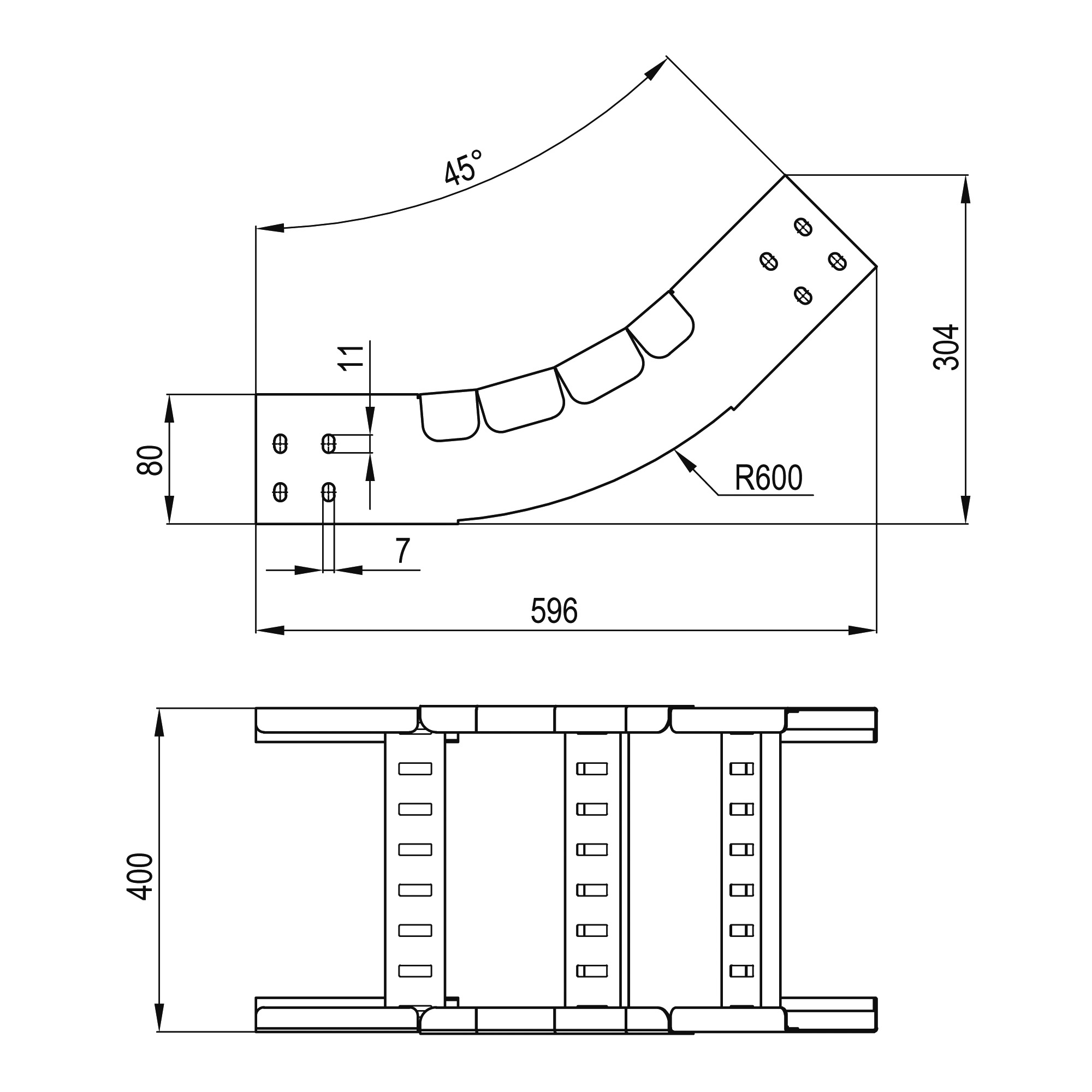

Internal vertical angle 45°80x400, R600, included with fasteners (joint plates GTO, screws, nuts)
Code: LH0864K
Internal vertical angle 45°80x400, R600, included with fasteners (joint plates GTO, screws, nuts)
Code: LH0864K
| Colour | Light grey |
| Deflection (angle) | 45° |
| Material | Steel |
| Inner radius, mm | 600 |
| Cable tray width, mm | 400 |
| Cable tray height, mm | 80 |
| Change of direction | Vertically rising |
| Model | Included connector |
| Surface protection | Sendzimir galvanized |
| Material quality | Steel |
| Product type | System accessories |
| Type of accessories | 45º vertical inner bend |
| Height | 80 mm |
| Side rail thickness | 1.2 mm |
| Material | Pre-galvanized |
| Width | 400 mm |
| 19 мм | 600 mm |
