Metal ladder trays - "L5 Combitech"
Sendzimir galvanized steel

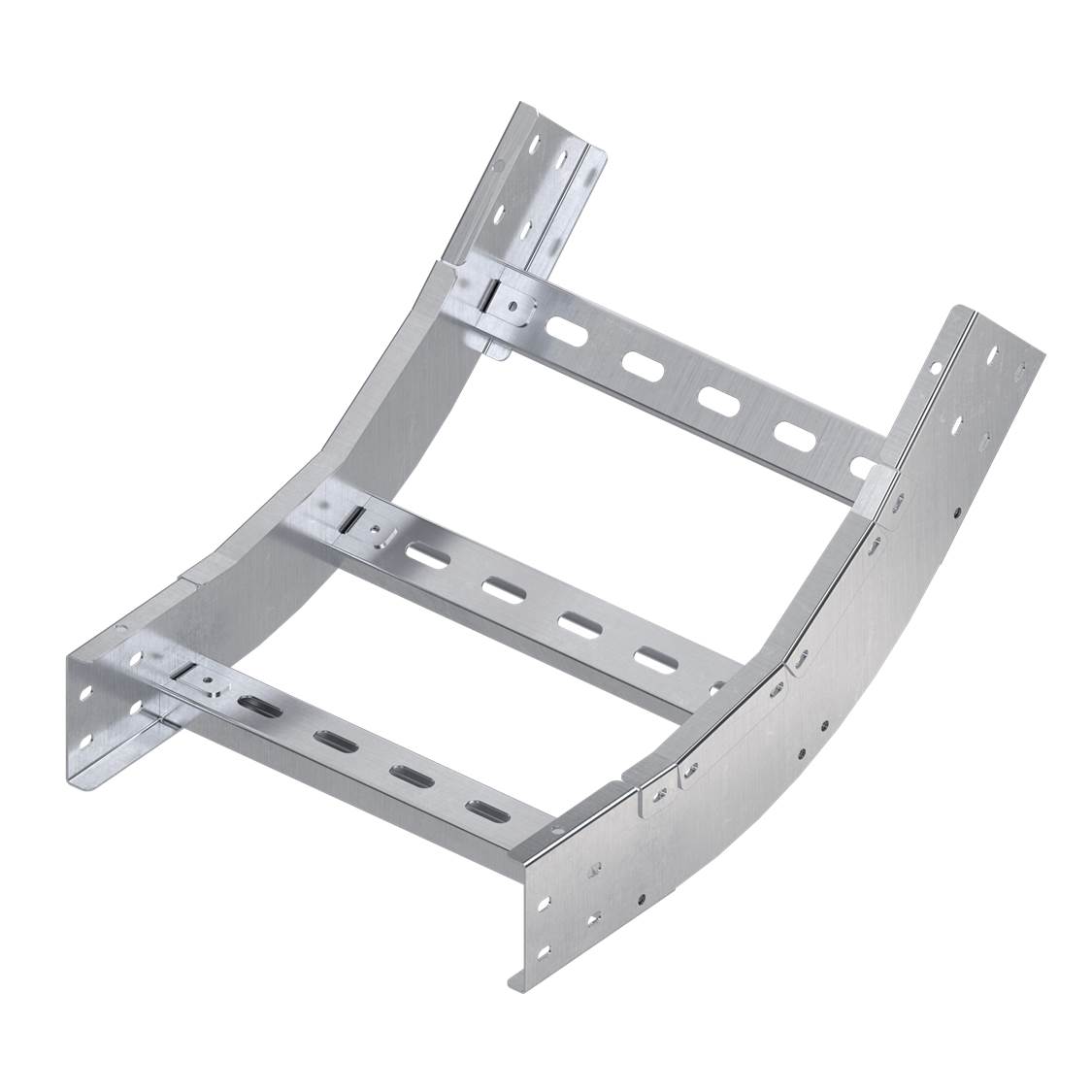

Internal vertical angle 45° 50x400, R300, included with fasteners (joint plates GTO, screws, nuts)

Internal vertical angle 45° 50x400, R300, included with fasteners (joint plates GTO, screws, nuts)

Code: LH0534K

To ask a question

Colour	Light grey
Deflection (angle)	45°
Material	Steel
Inner radius, mm	300
Cable tray width, mm	400

Cable tray height, mm	50
Change of direction	Vertically rising
Model	Included connector
Surface protection	Sendzimir galvanized

Type of accessories	45º vertical inner bend
Product type	System accessories
Height	50 mm

Width	400 mm
Material	Pre-galvanized steel

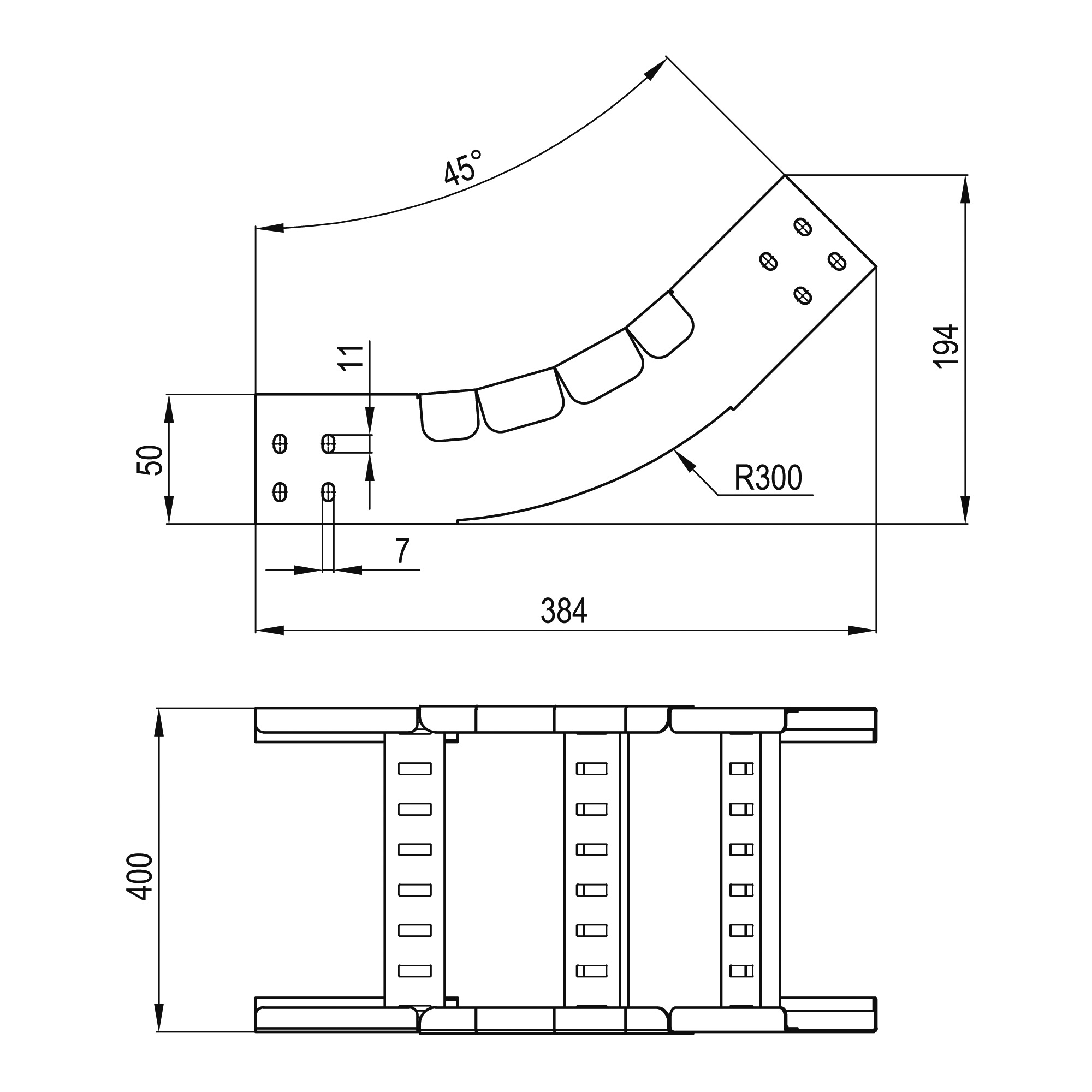

Drawings

Seria	Name	Autodesk Revit	STEP	SAT	DWG (dynamic blocks)	Intergraph	AVEVA
Metal ladder trays - "L5 Combitech"	System ladder trays "L5 Combitech"	ZIP 11.67 MB
Metal ladder trays - "L5 Combitech"	System ladder trays "L5 Combitech"		ZIP 19.32 MB
Metal ladder trays - "L5 Combitech"	System ladder trays "L5 Combitech"			RAR 17.38 MB
Metal ladder trays - "L5 Combitech"	System ladder trays "L5 Combitech"				ZIP 16.42 MB
Metal ladder trays - "L5 Combitech"	System ladder trays "L5 Combitech"					RAR 5.28 MB
Metal ladder trays - "L5 Combitech"	System ladder trays "L5 Combitech"						ZIP 726.23 kB

Certificates

Name	Document
Exemption Letter for metal trays and its accessories	PDF 3.87 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1	PDF 1.42 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines of the DKC and "SPKB Techno"	PDF 4.93 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of the DKC and "Rybinsk cable" for TRM 0004-2014	PDF 4.69 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_1	PDF 8.35 MB
Fire-resistant barriers_Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_2	PDF 12.31 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC and OJSC "Electrocable. Kolchugino Plant "on TRM 0005-2018	PDF 18.51 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC and "Concord" for TRM 0016-2017	PDF 11.34 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and "Rybinskelectrocable" for TRM 0006-2015	PDF 11.88 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, Sevkabel, Speckabel for TRM 0015-2017	PDF 11.35 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, "Technocable" for TRM 0010-2015	PDF 5.01 MB
Fire-resistant barriers _Certificate of conformity FZ-123 on fire-resistant cable lines of DKC and "Expert-Cable"	PDF 13.54 MB
Certificate of conformity of GOST R 53316-2009 for fire resistant cable lines for fire protection systems such as "Lyudinovokabel - DKC"	PDF 5.93 MB
Certificate of conformity to GOST 30247.0-94, TRM 0001-2012 for the Fire resistant cable support constructions	PDF 2.97 MB
Certificate of conformity to GOSR R 53316-2009 for fire-resistant cable lines of DKC and "Paritet"	PDF 3.06 MB
Certificate of conformity to GOSR R 53316-2009 for fire-resistant cable lines of DKC	PDF 1.55 MB
