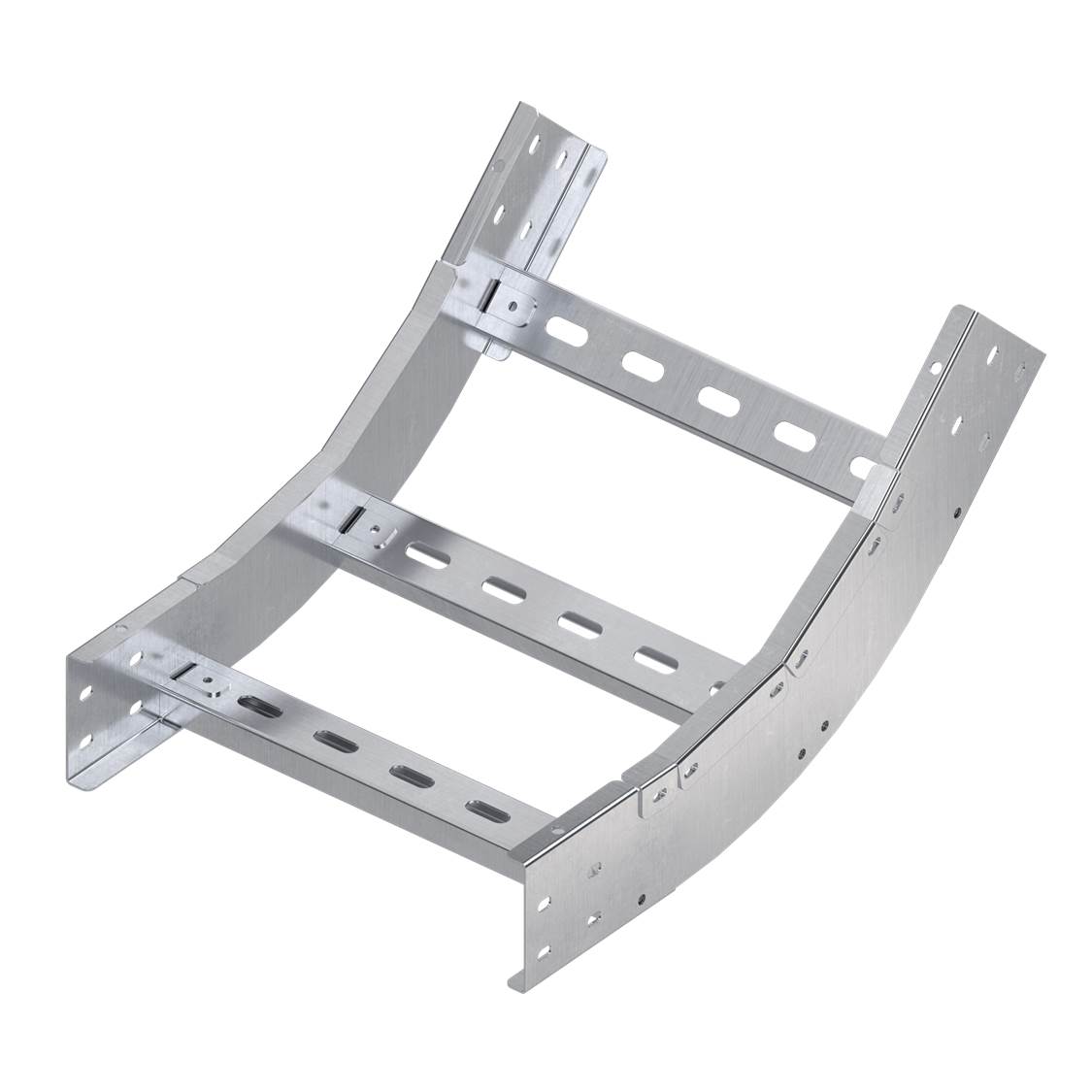

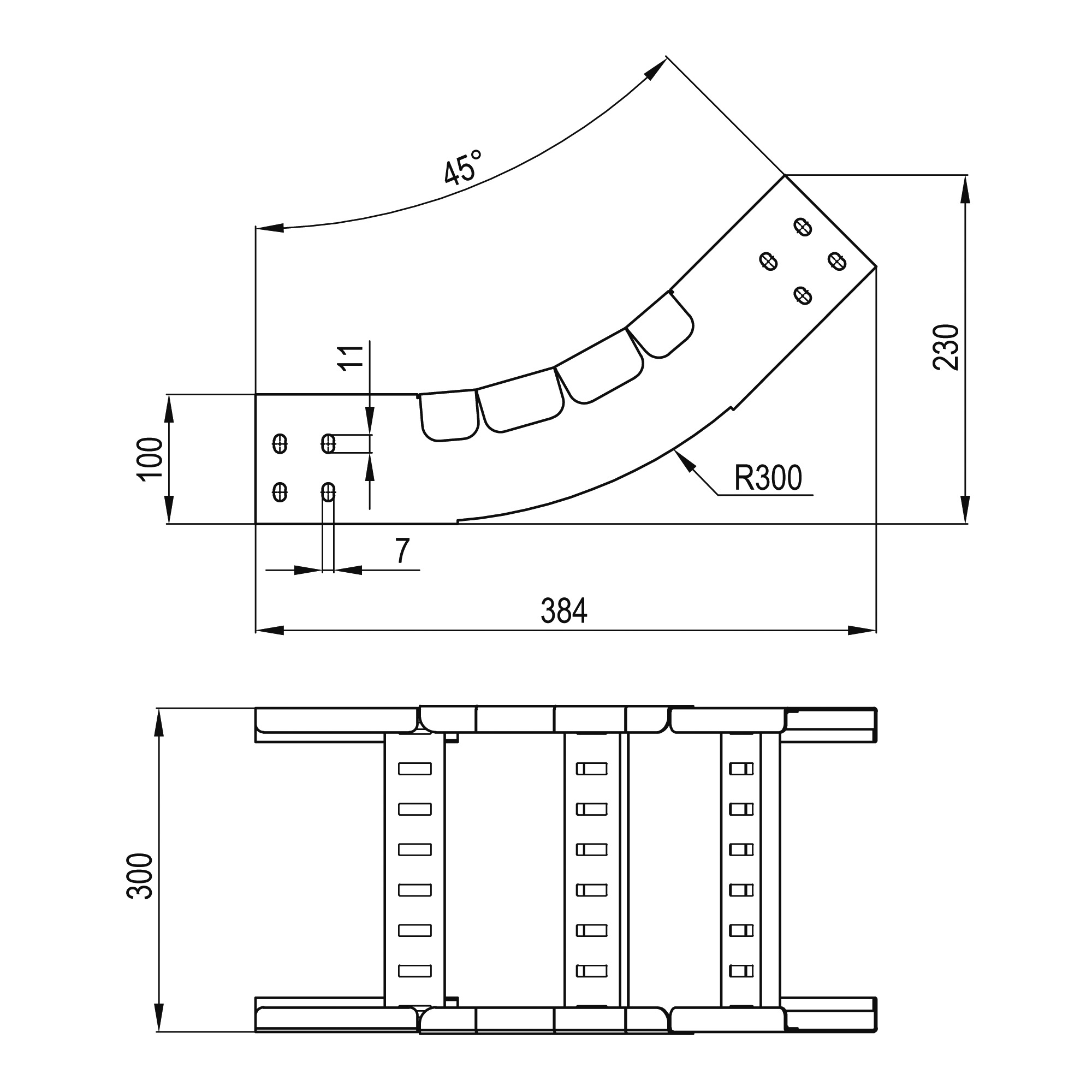

Internal vertical angle 45° 100x300, R300, included with fasteners (joint plates GTO, screws, nuts)
| Colour | Light grey |
| Deflection (angle) | 45° |
| Material | Steel |
| Inner radius, mm | 300 |
| Cable tray width, mm | 300 |
| Cable tray height, mm | 100 |
| Change of direction | Vertically rising |
| Model | Included connector |
| Surface protection | Sendzimir galvanized |
| Type of accessories | 45º vertical inner bend |
| Product type | System accessories |
| Height | 100 mm |
| Width | 300 mm |
| Material | Pre-galvanized steel |
