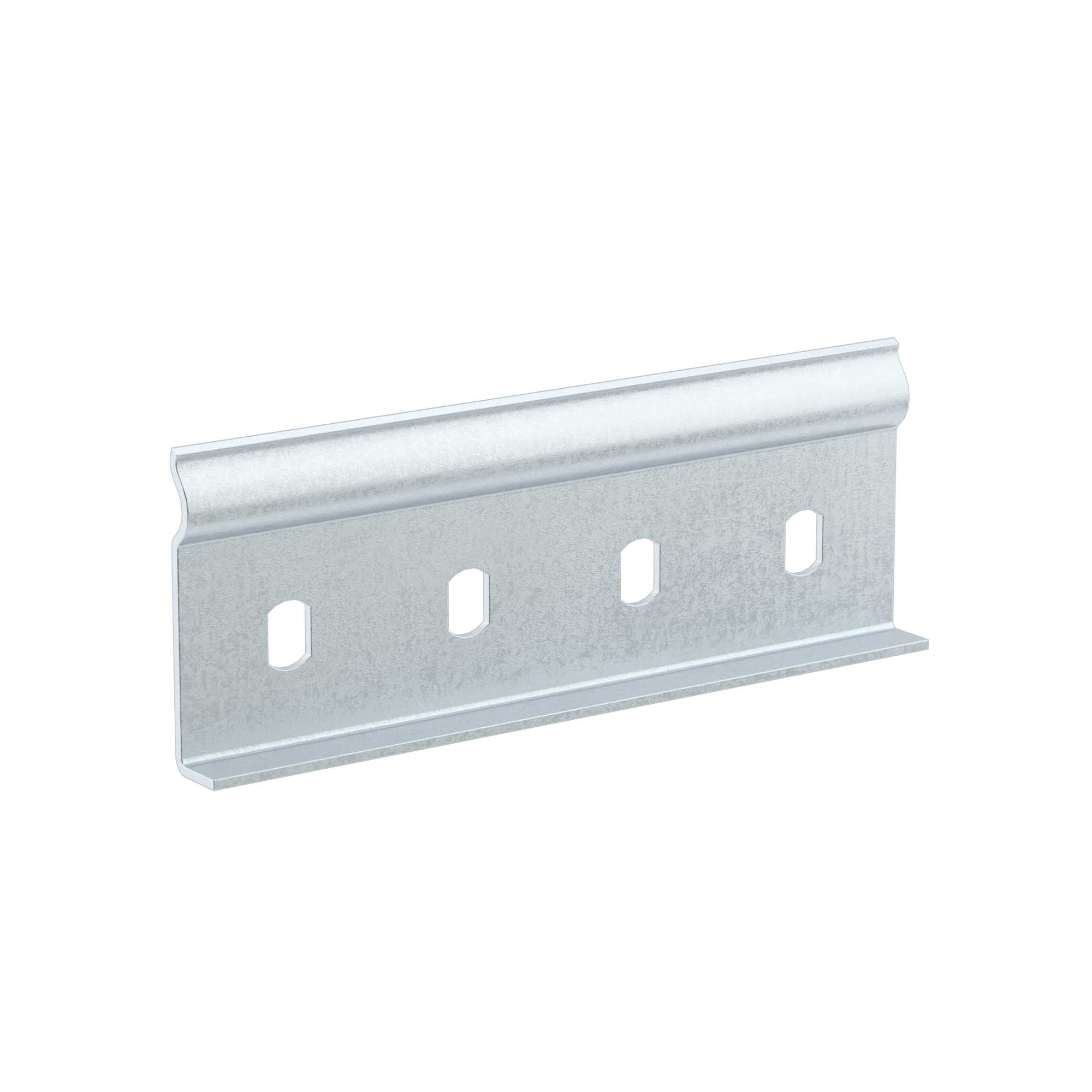

Horizontal connector, GTO 50L
Code: LG5000
Horizontal connector, GTO 50L
Code: LG5000
| Surface protection | Sendzimir galvanized |
| Material quality | Steel |
| Length, mm | 124 |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Stainless steel, pickled | Yes |
| Suitable for cable management system height, mm | 50 |
| Hinged joint horizontal | Yes |
| Hinged joint vertical | Yes |
| Suitable for circuit integrity | Yes |
| Suitable for cable management system width, mm | 50...600 |
| Colour | Light grey |
| Model | Longitudinal joint |
| Type of connection | Screw connector |
| Product type | Mounting accessories |
| Type of accessories | Mounting accessories |
| Height | 50 mm |
| Thickness | 1.5 mm |
| Material | Pre-galvanized |
