| Model | Surface mounted (plaster) |
| Type of fastening | External mounting |
| Military model | No |
| Cable entry | Swivel |
| Number of poles | 5 |
| Material | Plastic |
| IEC-amperage, A | 32 |
| Connection system | Screwed terminal |
| Degree of protection (IP) | IP44 |
| Clock hour position, h | 6 |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Temperature of operation | 60 °C |
| Shock resistance, J | 2 |

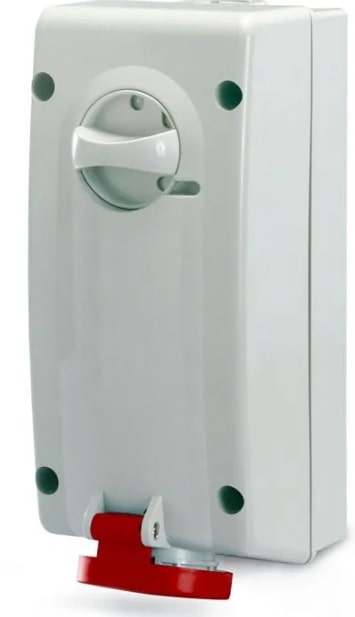

| Product type | Surface mounting interlocked socket |
| Voltage | 400V |
| Q'ty of poles | 3P+E+N |
| Degree of protection | IP44 |
| Current | 32 A |
