Support 2 mod. (1 post), black RAL7016

Code: 75020N
Support 2 mod. (1 post), black RAL7016
Support 2 mod. (1 post), black RAL7016
Colour Black
Model 2-fold
Halogen free Yes
Surface protection Other
Material quality Other
Material Plastic
Mounting direction Horizontal and vertical
Suitable for installation duct No
Transparent No
Type of surface Matt

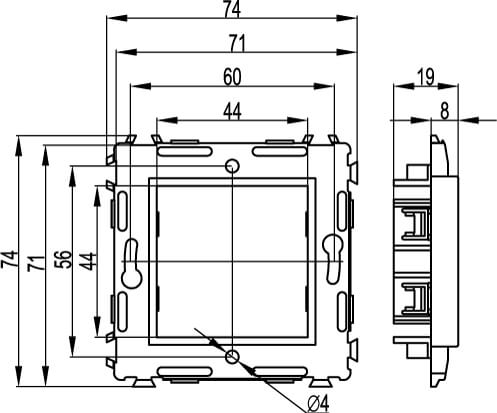

Width of device, mm 43
Height of device, mm 43
Depth of device, mm 19
Raw material ABC-plastic
Length, mm 73
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 73
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Depth, mm 19
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Certificates
Name Document
In-liner_In-liner Front - Exemption letter for Sanitary-epidemiological conclusion for cable ducts and miniducts with accessories_1
PDF
1.14 MB
In-liner Front_In-liner Aero - Exemption letter of fire safety certificates for In-liner Front and In-liner Aero
PDF
797.70 kB
"In-liner_In-liner Front" - Certificate of conformity to GOST R for miniducts TMR and floor ducts CSP-F
PDF
514.76 kB
