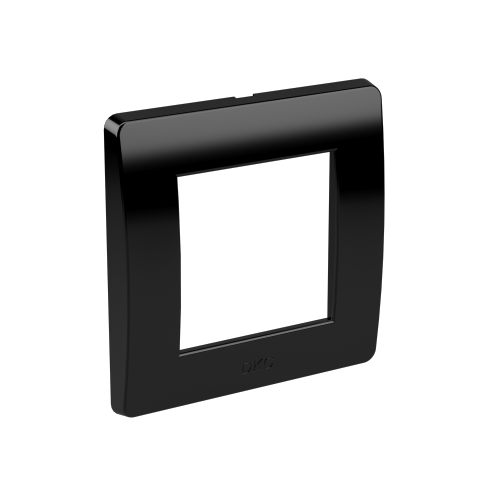

1-socket frame, 2 mod., black, RAL7016

Code: 75010B
  • To ask a question
Colour Black
Width, mm 86
Halogen free Yes
Height, mm 86
Depth, mm 20
Number of units 1
With hinged lid No
Surface protection Decor
Built-in height, mm 50
Built-in width, mm 50
Label space/information surface No
Material quality Other
Material Plastic
Type of fastening Clamp mounting
Mounting direction Horizontal and vertical
Degree of protection (IP) IP20
Suitable for floor box No
Transparent No
Type of surface Brilliant
Suitable for wall duct No
Suitable for flush-mounted installation Yes
Flat surface model No
Suitable for built-in installation Yes
Number of units horizontal 1
Number of units vertical 1
Number of modules 2
Decoration Декор по эскизу
Without bridge Yes
Material ABC-plastic
Length, mm 86
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 86
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Depth, mm 9
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
