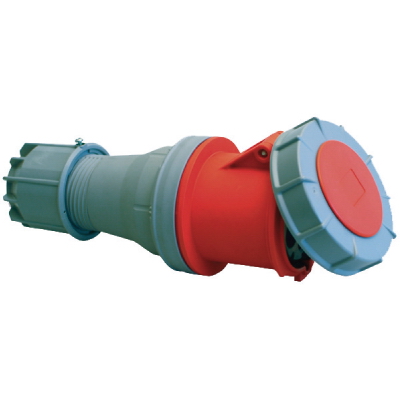

Cable socket IP67 63A 3P+E 400V

Code: DISC040634

To ask a question

Model	Surface mounted (plaster)
Number of poles	4
Material	Plastic
Type of fastening	External mounting
IEC-amperage, A	63
Degree of protection (IP)	IP67
Military model	No
Identification colour	Red
Voltage acc. EN 60309-2	400 V (50+60 Hz) red
Connection system	Screwed terminal
Contact less detection of the sense of rotation	No
Angle of plug	Angled

For heavy conditions (in accordance with VDE)	No
Phase inverter	No
Empty locations on mounting rail	No
Number of height units	1
With earth leakage switch	No
Total number of groups	1
Flange size vertical	575
Flange size horizontal	280
Width of device	108
Height of device	99
Depth of device	61

Color	gray
Material of case	Ployamide

Ingress Protection rating, IP	IP67
Temperature of operation, °C	-25 - +80
