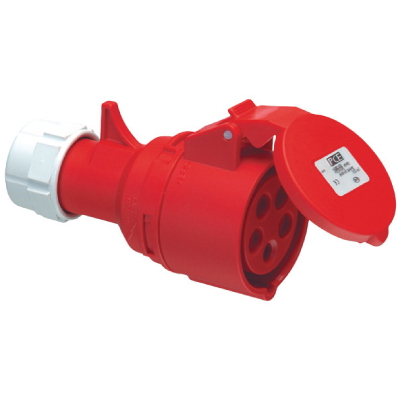

Cable socket IP44 32A 3P+E 400V

Code: DISC040324

To ask a question

Model	Surface mounted (plaster)
Number of poles	4
Material	Plastic
Type of fastening	External mounting
IEC-amperage, A	32
Degree of protection (IP)	IP44
Military model	No
Identification colour	Red
Voltage acc. EN 60309-2	400 V (50+60 Hz) red
Connection system	Screwed terminal

Contact less detection of the sense of rotation	No
Angle of plug	Straight
For heavy conditions (in accordance with VDE)	No
Phase inverter	No
Empty locations on mounting rail	No
Number of height units	1
With earth leakage switch	No
Total number of groups	1
Flange size vertical	240
Flange size horizontal	106

Color	gray
Material of case	Ployamide

Ingress Protection rating, IP	IP44
Temperature of operation, °C	-25 - +80
