| Number of poles | 4 |
| Material | Plastic |
| IEC-amperage, A | 63 |
| Degree of protection (IP) | IP67 |
| Military model | No |
| Clock hour position, h | 6 |
| Identification colour | Red |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Flange size vertical, mm | 100 |
| Flange size horizontal, mm | 100 |
| Angle of plug | Angled |
| Connection system | Screwed terminal |
| Color | gray |
| Material of case | Ployamide |
| Ingress Protection rating, IP | IP67 |
| Temperature of operation, °C | -25 - +80 |

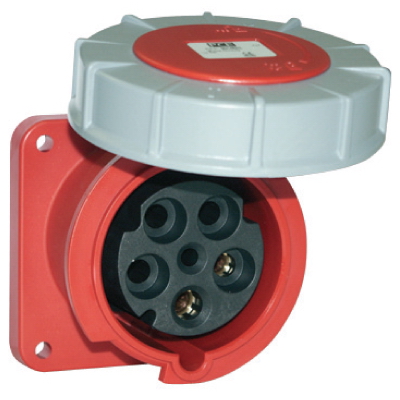

| Product type | Flush-mounting socket |
| Voltage | 400V |
