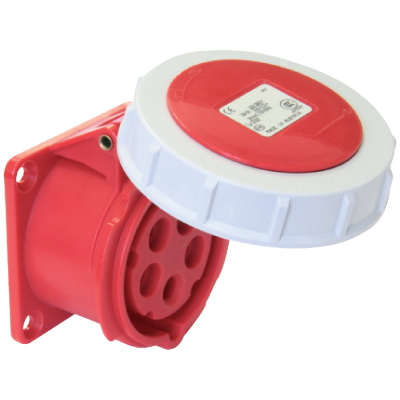

Flanged socket straight IP67 16A 3P+E+N 400V

Code: DISF240165
Flanged socket straight IP67 16A 3P+E+N 400V
Flanged socket straight IP67 16A 3P+E+N 400V
Code: DISF240165
Removed from the product range . Proposed replacement: DIS4271667
  • To ask a question
  • Characteristics
  • Drawings
  • Certificates
  • Promo
  • Viewed items
Number of poles 5
Material Plastic
IEC-amperage, A 16
Degree of protection (IP) IP67
Military model Yes
Clock hour position, h 6
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Flange size vertical, mm 75
Flange size horizontal, mm 75
Angle of plug Angled
Connection system Screwed terminal
Color gray
Material of case Ployamide
Ingress Protection rating, IP IP67
Temperature of operation, °C -25 - +80
Product type Flush-mounting socket
Voltage 400V
