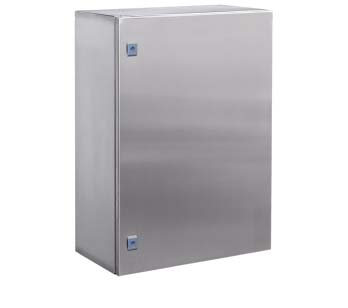

Wall cabinet CE, stainless steel (AISI 316), 300 x 400 x 150mm, without flange

Code: R5CEB03412
Wall cabinet CE, stainless steel (AISI 316), 300 x 400 x 150mm, without flange
Wall cabinet CE, stainless steel (AISI 316), 300 x 400 x 150mm, without flange
Colour Grey
Width, mm 400
Height, mm 300
Depth, mm 150
With mounting plate Yes
Number of doors 1
Number of locks 1
EMC-version No
With glazed door No
Floor mounting possible No
Material Stainless steel
Wall mounting possible Yes
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable No
Tackable No
With ventilation door No
Type of surface Untreated
Surface mounting Yes
With backside door No
Flush-mounted installation No
Color Stainless steel
Material Stainless steel
Height, mm 300
Width, mm 400
Thickness, mm 1.5
Ingress Protection rating, IP 66
Shock resistance, J 10
Depth, mm 150
Accessories
The accompanying goods
Drawings
Seria Name Templates for insulation cut DWG (dynamic blocks)
RAMblock - metal enclosures
Welded wall cabinets CE
ZIP
151.54 kB
RAMblock - metal enclosures
Wall welded cabinets series CE (dynamic blocks)
RAR
10.17 MB
RAMblock - metal enclosures
Skinnie hinged boxes series СDЕ (dynamic blocks)
RAR
2.94 MB
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1
PDF
128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1
PDF
125.50 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
Certificate of conformity for Wall-mounted enclosure series CE and CQE
PDF
1.84 MB
