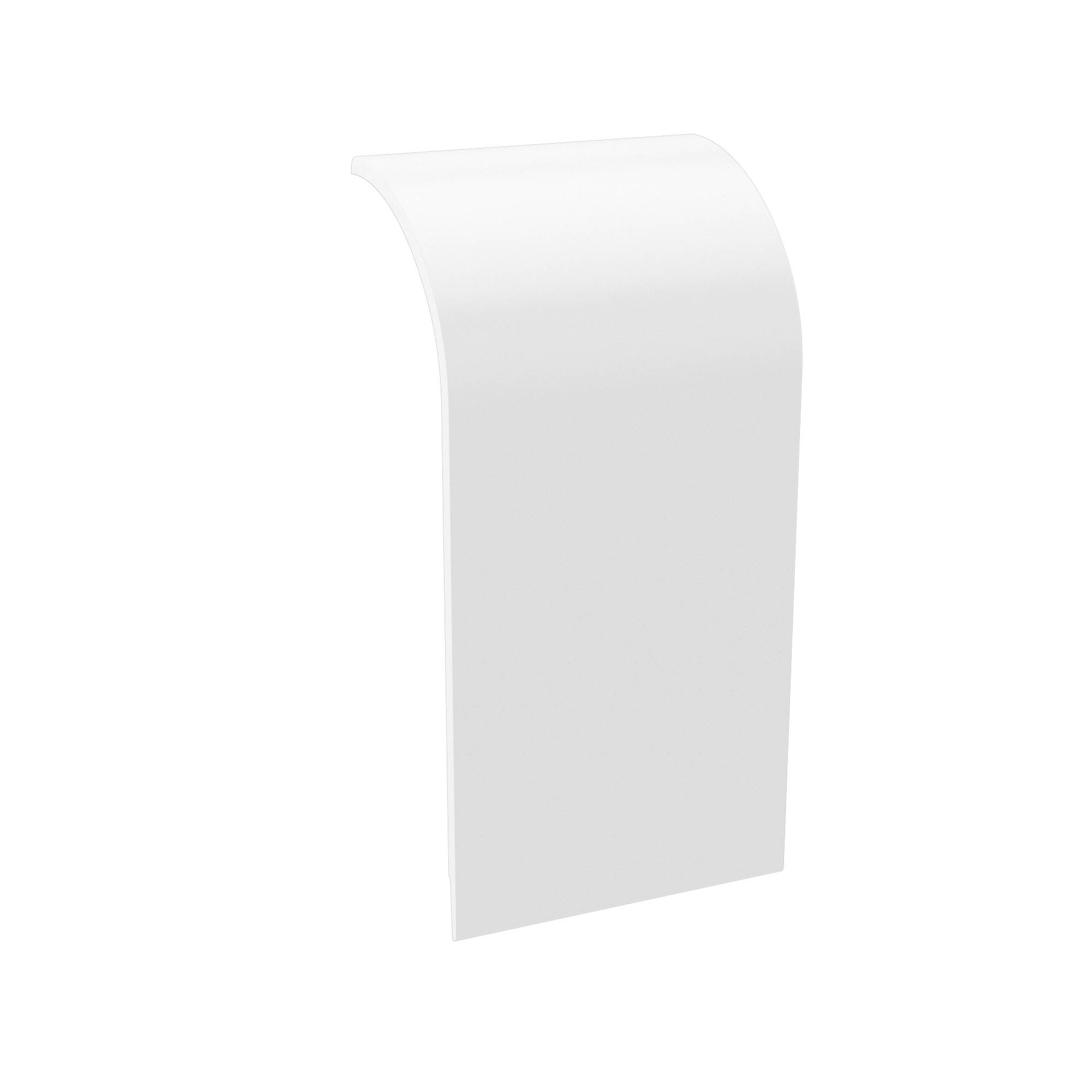

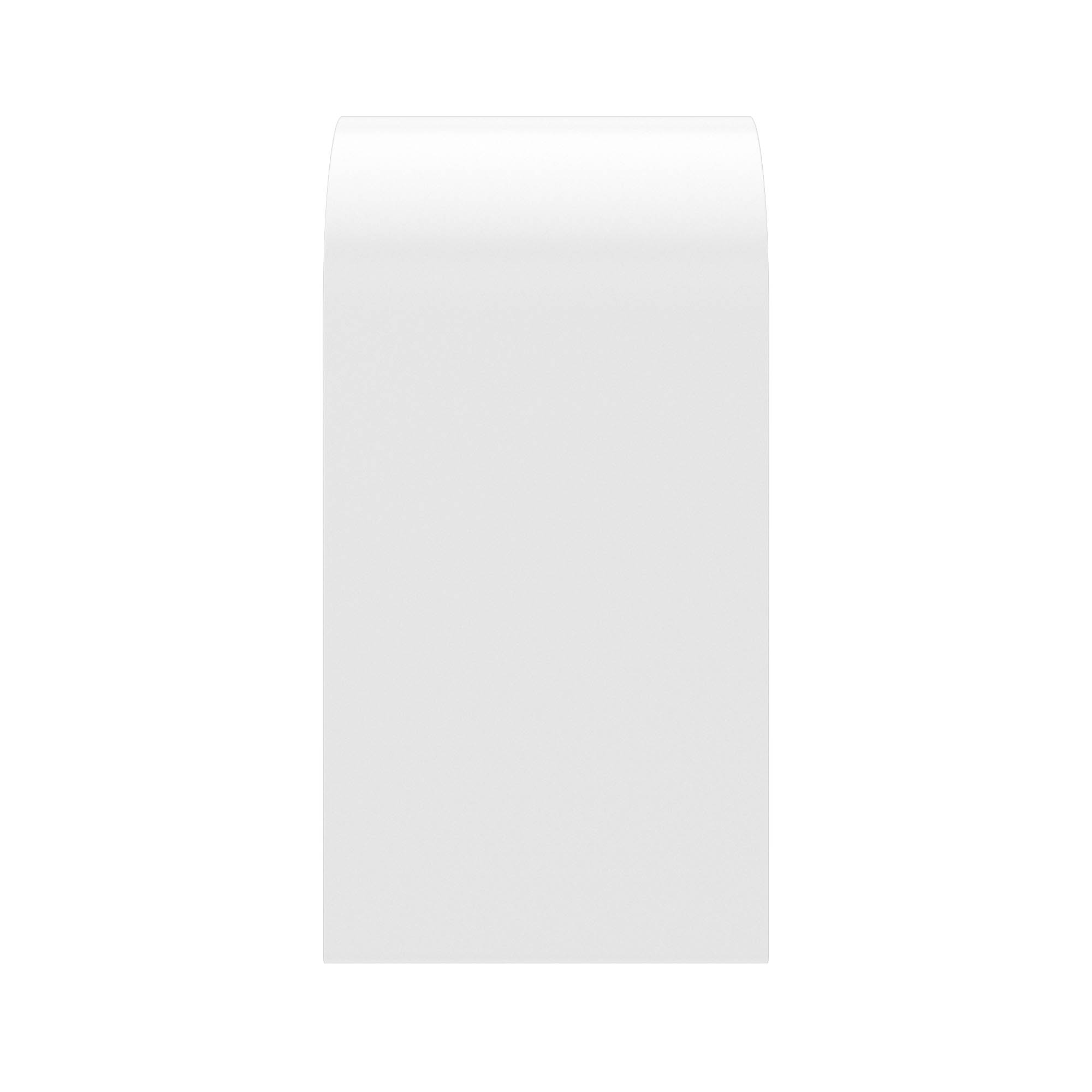

Strap for cable trunking (for trays) 90x50 mm, white

Code: 09509

Strap for cable trunking (for trays) 90x50 mm, white

Code: 09509
Colour Pure white
Model Joint cover base unit
Halogen free Yes
Surface protection Other
Material quality Other
Material Plastic
Type of fastening Self-adhesive
Cover width, mm 90
Shape Asymmetric
Suitable for wall duct width, mm 90
Depth of wall duct, mm 50
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 90
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Height (nominal), mm 50
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Product type Faceplate
