Colour Clear white

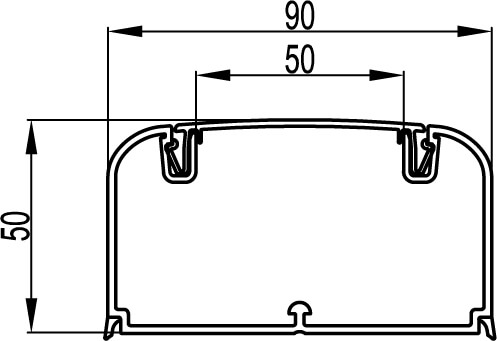

Width, mm 90
Depth, mm 50
Surface protection Other
Material quality PVC
Length, mm 2000
Material Plastic
Mounting method covers Inner lying
Number of covers 1
Number of plug-in partitions 1
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Useful cross section, mm² 3682
Cover width 1, mm 90
Protection film Yes
Symmetric Yes
Construction rear wall (inner side) Other
Construction type rectangular Yes
Covers supplied with the product Yes
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 90
Ingress Protection rating, IP IP40
Average filled area, sq.mm 3682
Summarized profile area (max), sq.mm 3682
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Voltage of disruption, V More 2500
Height (nominal), mm 50
Self-glueing base false

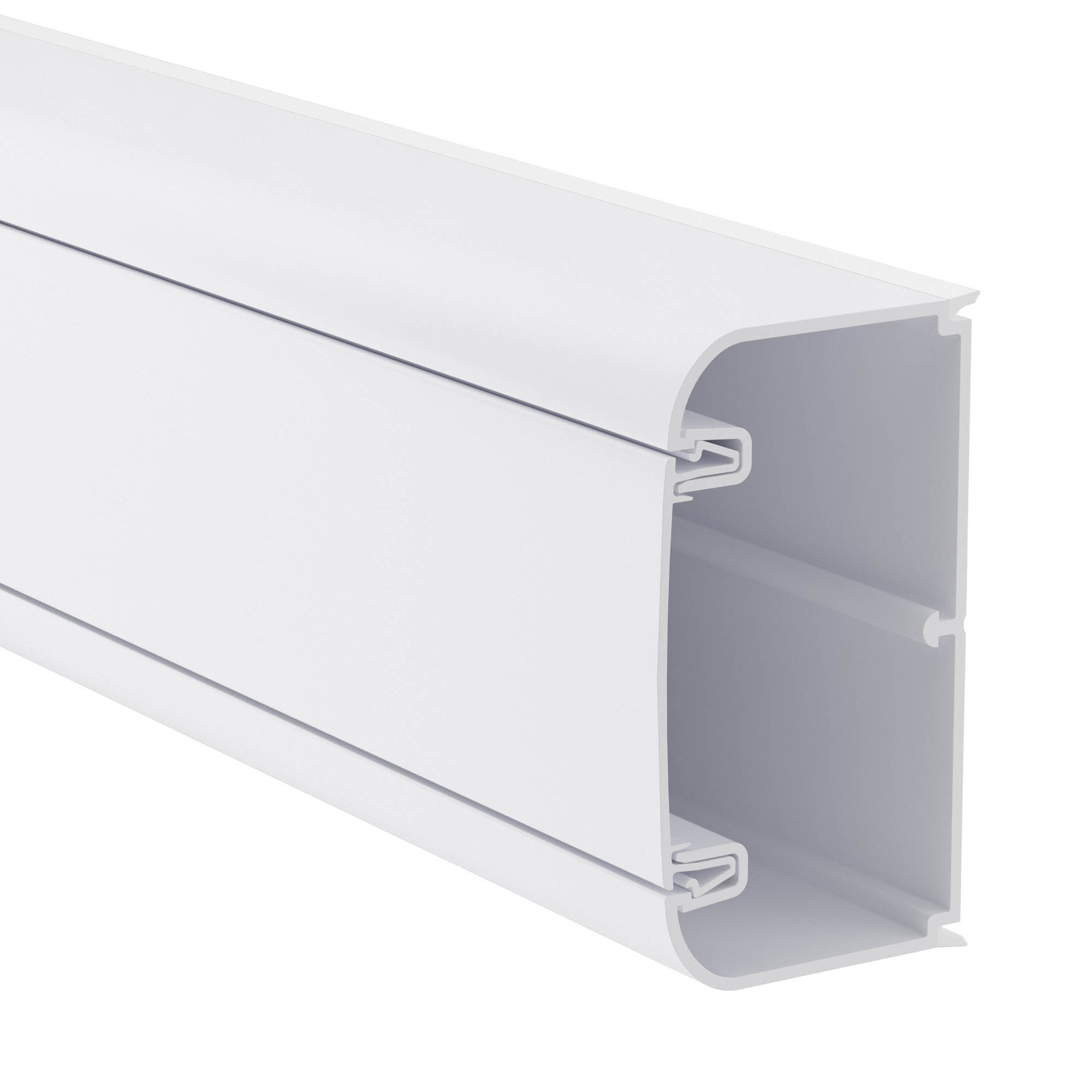

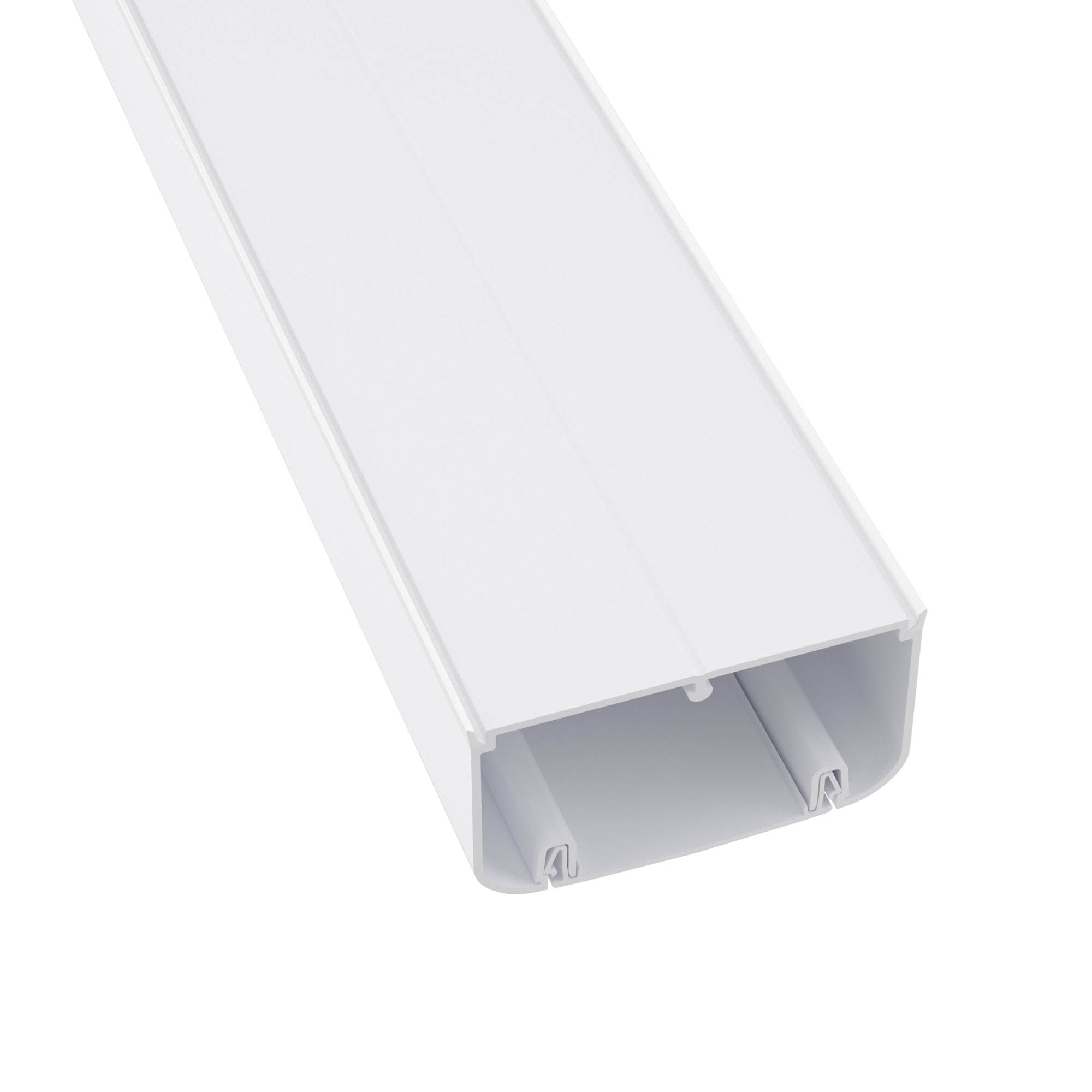

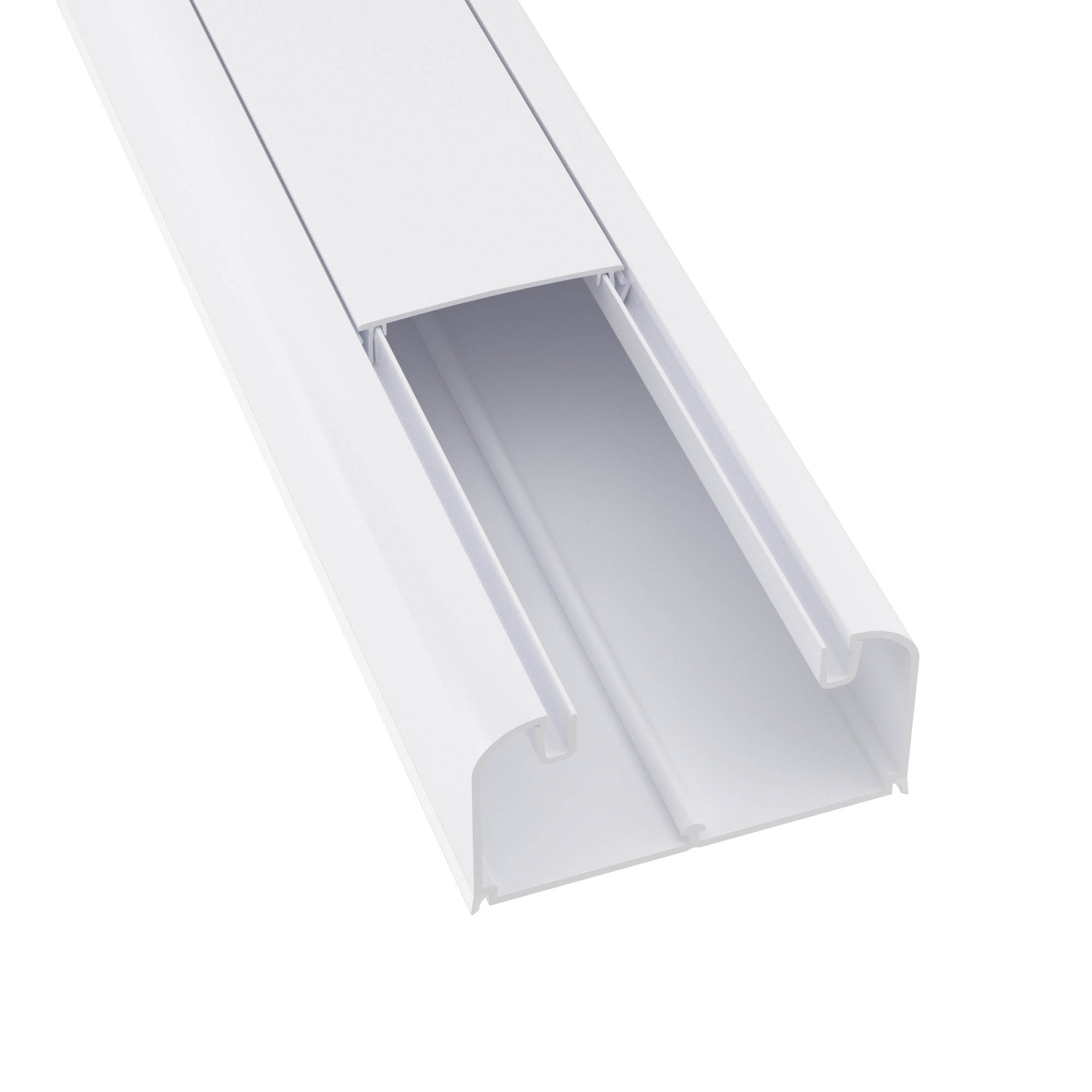

Product type Cable duct
