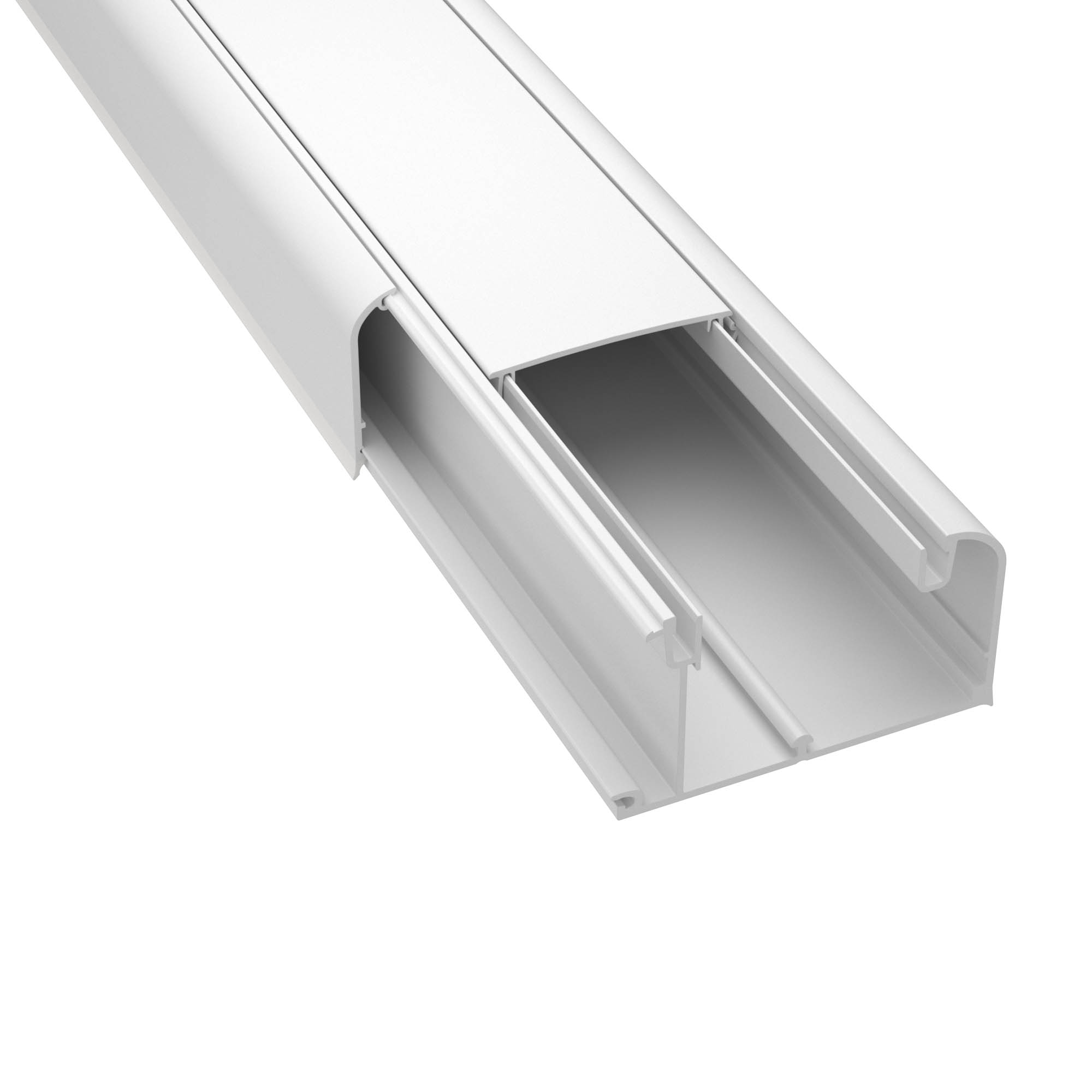

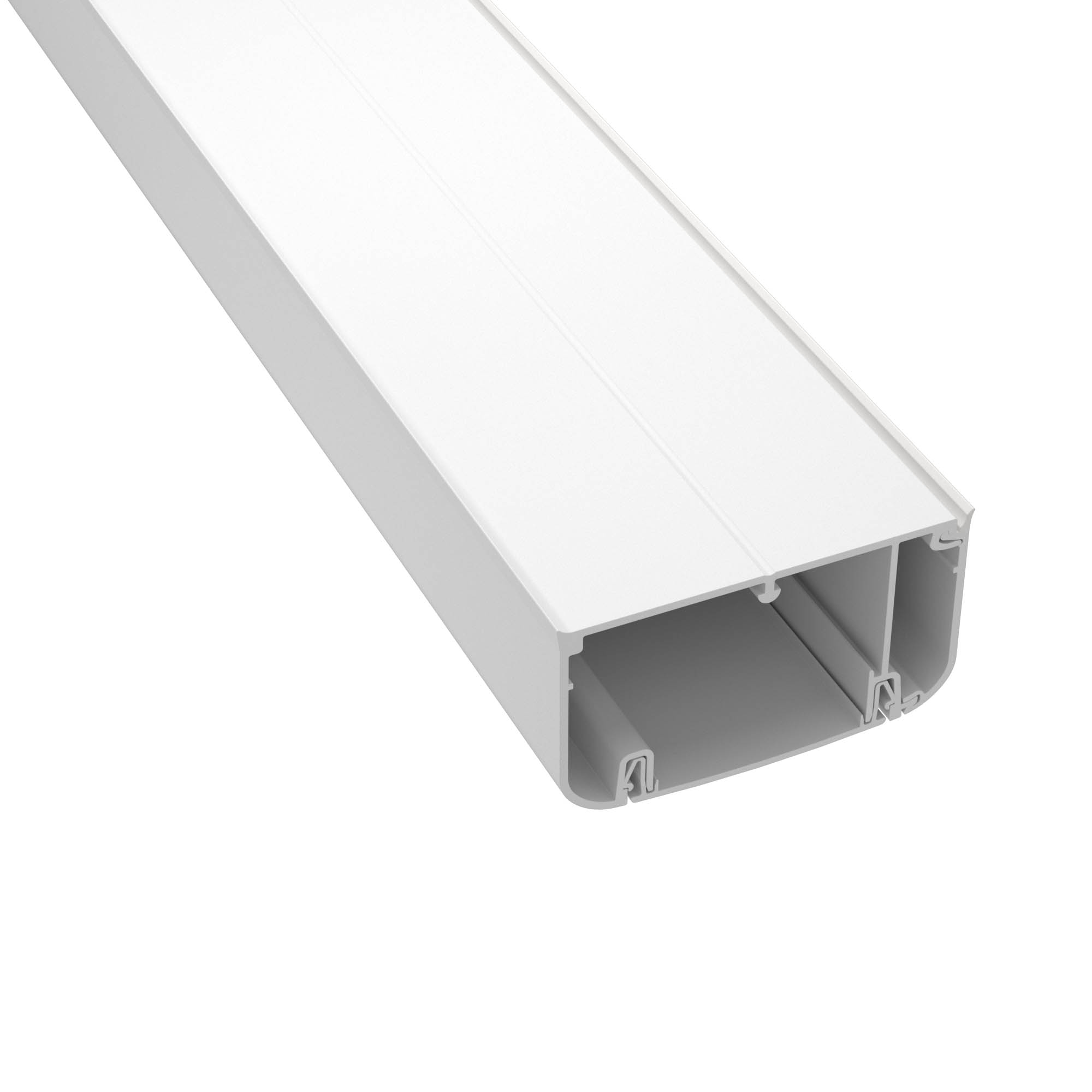

Cable trunking 90x50 mm with cover and separator, white

Colour Clear white
Width, mm 90
Depth, mm 50
Surface protection Other
Material quality PVC
Length, mm 2000
Material Plastic
Mounting method covers Inner lying
Number of covers 1
Number of plug-in partitions 1
Mounting perforation in bottom Yes
With cable fixing clip No
With duct connector No
Useful cross section, mm² 3282
Cover width 1, mm 90
Protection film Yes
Symmetric No
Construction rear wall (inner side) Other
Construction type rectangular Yes
Covers supplied with the product Yes
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 90
Ingress Protection rating, IP IP40
Average filled area, 2802+480
Summarized profile area (max), 3282
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Shock resistance, J 6
Climate version UHL4
Voltage of disruption, V More 2500
Height (nominal), mm 50
Self-glueing base false
Product type Cable duct
